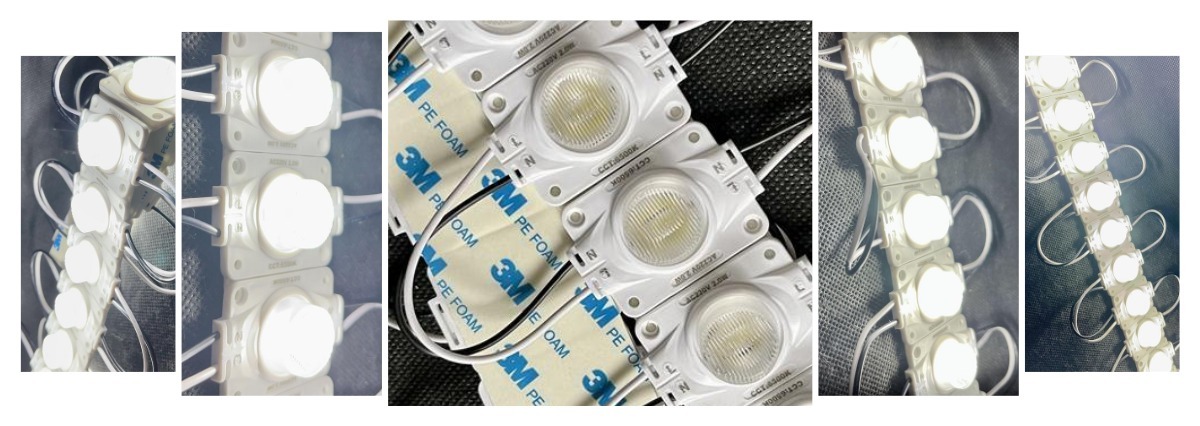

IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver
Specifications
Voltage :
AC110V AC220V
Supply Ability :
5000pcs/day
Delivery Time :
5-15 working days
View angle :
15*45 degress
Color :
White 2700k-7500k
IP grade :
IP67
Place of Origin :
ShenZhen, China
Size :
45*35*14mm
Price :
0.6-0.7USD per piece
Payment Terms :
L/C,T/T,Western Union
Led chip :
SMD3030
Certification :
CE ROHS PSE
Brand Name :
SignLED
MOQ :
500
Model Number :
MHA040
Packaging Details :
800pcs/carton
Power :
2W 200lm
Module type :
AC direct led edge module
Description

AC220V Led edge light module 1led 2w 6500k no need led driver

The market has many 12v led edge modules. But we have what they don't have:

AC220v led module side lighting for led light box.

IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver

Parameters of 220v led side light module

Model No. LED color CCT (K) voltage power LM Effect (LM/W) Angle
MHA040 SMD5050 White 2700~6500K 220 2W 200 100 15*45°
7000~10000K
Connection Qty Shell color Drive method Weight (g/20pcs) Warranty W T(℃) S T(℃) IP Level
50pcs White Constant voltage 440 5Years Or 35000H -25-+60 -25-+80 IP67

Advantages of 220v led edge modules

  • Led chip: San'an; Cree; Osram; Samsung; Lumileds.
  • Component: imported IC driver.
  • Led lens: 15*45 degrees PC optic lens.
  • AC110V, no need extra power supply
  • 100pcs connection no voltage drop
  • PSE CE ROHS certificated

Company information

SignLED has a full range led lightings for led advertising signages..

low voltage Led modules, led flexible strips, led neon flex. All products with CE, ROHS certificated. And high voltage led modules have PSE certification.

As a factory, we have great advantages than others.

  • our own SMT machine.
  • Automatic soldering machine.
  • Automatic wire cutting machine.
  • 8pcs injection molding machine.
  • All related test tools for LED lightings.
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver

Applications of side view 220V led module

This AC220V led edge module is made for double side led lighting box.

High voltage AC220V directly makes it working more convenient than low voltage led edge module.

Lighting Box Module layout Illumination
Item Width Depth Size Distance Toal qty Install density Surface illuminance
MHA040 / 140mm 2000*1500mm 110mm 60 23pcs/m2 1200-1500ux
MHA040 / 200mm 2000*1500mm 80mm 50 19pcs/m2 750-900Lux
IP67 Grade AC220V Led Edge Light Module 2w 6500k SMD3030 No Need Led Driver

FAQ

SignLED keeps on producing best led advertising lighting products and lighting solutions to every client.

Q1: Can I have samples to test ?
A: Yes, we can provide FREE SAMPLE for test for regular 220v led module for lighting box.
Q2: MOQ request?
A: Standard 220v led module for lighting box has no MOQ.
Q3:What's the lead time ?
A: Samples order for 220v led module lighting: 3-5 days
Mass production for 220v led module for lighting box: 7-15days
Q4: What's the payment terms?
A: T/T(bank to bank payment), Paypal,
Western Union, L/C (for amount >100,000USD)
Q5: Product warranty ?
A: Regular 220v led module for lighting box have 5 years warranty.
