1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
Specifications
Model Number :
Box1.5-MFF092
Led chip :
3030
Price :
0.34-0.37USD/Piece
Brand logo :
Free cost logo
Supply Ability :
50000pcs/day
Application :
LED Light Boxes
Certification :
CE ROHS
Warranty :
5 years/ 50000 hours
Payment Terms :
T/T,Western Union,Paypal,L/C
Module Size :
45*35*14mm
MOQ :
1000pcs
Delivery Time :
5-15 working days
Led color :
White 2700k-9000k
Place of Origin :
ShenZhen, China
Led chain :
20pcs chain
Packaging Details :
800pcs/carton
Brand Name :
SignLED
Product name :
Edge LED Module
Description

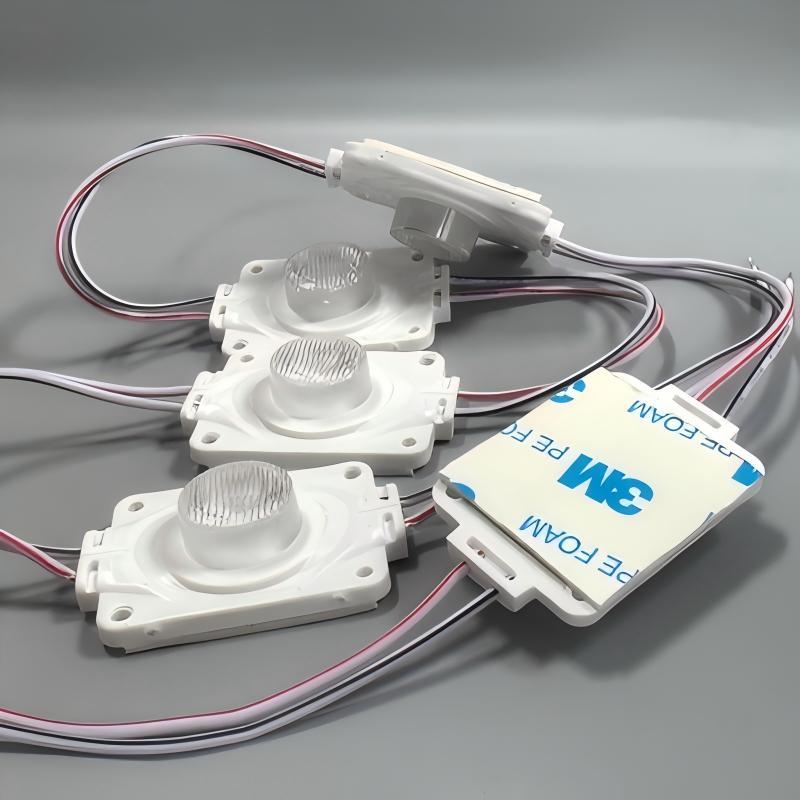

1.5W Edge Module 165LM IP65 15×45° for LED Light Boxes
  • Edge lighting solution developed for illuminated display structures
  • DC12V power supply ensures convenient connection with LED systems
  • 15*45° optical design improves light spreading inside panels
  • IP65 rated construction supports long-term lighting applications
Product Parameters
Model No. LED Color CCT (K) Voltage Power LM Effect (LM/W) Angle
Box1.5-MFF092 3030 White 2700~9000K 12V/24V 1.5W 165 110 15*45°
Other Colors
Connection Qty Shell color Drive Method Weight (g/20pcs) Warranty W T(℃) ST(℃) IP Level
20pcs White Constant Voltage 325 5Years Or 50000H -25-+60 -25+80 IP65
Product Features
  • Efficient LED performance provides stable brightness output
  • Heat dissipation structure improves product reliability
  • Lens design controls light direction and distribution
  • Protective material improves durability
  • Easy installation design supports different display structures

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

Led Module Applications
  • Edge-lit advertising displays
  • Light box panels
  • Acrylic advertising boards

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated

FAQ

Q: What is the advantage of the 15×45° optical design?
A: The directional beam design helps improve edge lighting efficiency for light box applications.

Q: What type of light boxes can use this module?
A: It is suitable for edge-lit signage.

Q: What voltage does it operate on?
A: This module uses a DC12V constant voltage power supply.
