Meanwell Led Power Supply ELG Series 240W 10A 24Vdc Dimmable Led Driver IP65 IP67

Specifications

Input :

DC12V DC24V DC48V

Model Number :

MW-240-24

Efficiency :

92%-93%

Certification :

CE ROHS UL CB SAA

MOQ :

12PCS

Delivery Time :

3-5 working days

Packing :

12PCS/15.2KG

Packaging Details :

12pcs/carton/15.2kg

Dimension :

244*71*37.5mm

Dimmable :

3 in 1 dimming (dim-to-off); Smart timer dimming; DALI

Warranty :

5 years

IP grade :

IP65 IP67 waterproof

Brand :

Meanwell

Supply Ability :

5000pcs/day

Brand Name :

SignLED

Price :

35-40USD per piece

Output :

240W

Product name :

meanwelll led driver ELG series

Place of Origin :

ShenZhen, China

Payment Terms :

L/C,T/T,Western Union,PayPal

Description

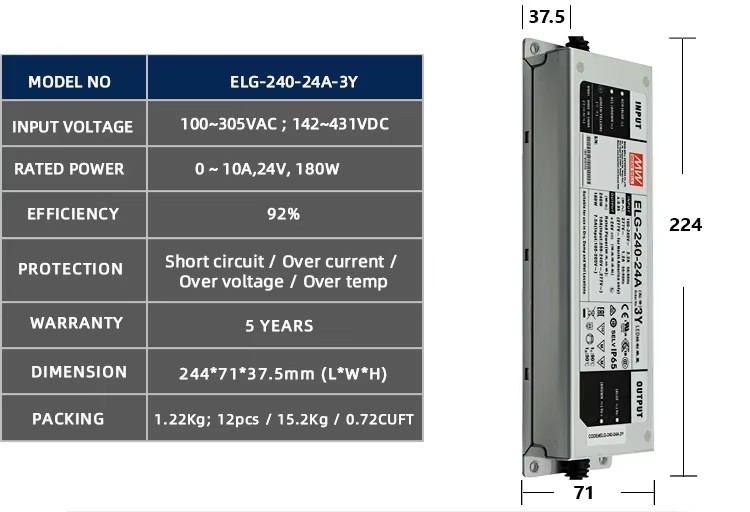

Mean Well ELG-240-24A-3Y 240 Watt 10A 24Vdc Power Supply

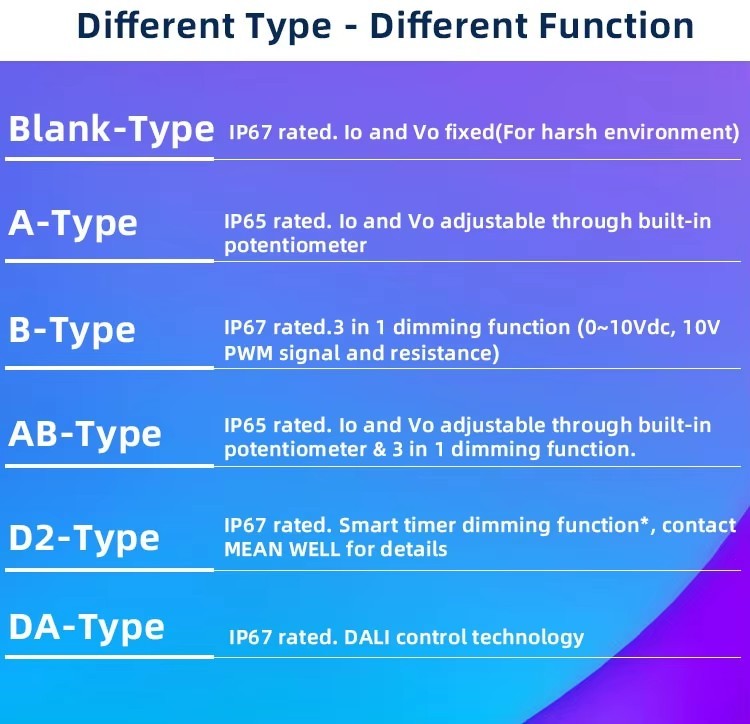

ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-240 operates from 100~305 VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Specification

item	value
Input Voltage	100-305VAC
Output Current	10A
Output Voltage	24V
Place of Origin	China
Brand Name	MEANWELL
Application	Industrial Equipment
Efficiency	92%
Output Frequency	47-63HZ
Output Type	SINGLE
Protection	Overcurrent /Overvoltage / Short Circuit /Over Temperature Protection
Type	AC-DC

Meanwell Led Power Supply ELG Series 240W 10A 24Vdc Dimmable Led Driver IP65 IP67

Selling Point

1. High Efficiency: The Meanwell ELG-240-24A-3Y 240W 24V IP65 waterproof LED driver offers an impressive 92% efficiency for maximum power usage and minimal energy waste.
2. 5 Years Warranty: The product is backed by a 5-year warranty, ensuring customer satisfaction and confidence in the Meanwell brand's commitment to quality.
3. Versatile Applications: Perfect for a wide range of applications including laboratory, industry, industrial equipment, LED lighting, and SMART HOME systems, this versatile LED driver is suitable for various scenarios.
4. Environmental Protection: The IP65-rated waterproof and dustproof design allows this power supply to withstand harsh outdoor environments, ensuring long-lasting performance and reliability.
5. Customization: The driver features an adjustable load and output voltage, making it adaptable to various LED lighting projects and compatible with different types of LED lighting, including 3D printers.
