CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
Specifications
Model Number :
SN-RRW048
Led chip :
3030
Payment Terms :
T/T,Western Union,Paypal,L/C
Size :
1000*12*6.1mm
Price :
1.25-1.4USD/Metre
Power :
10W/M
Supply Ability :
10000 metres/day
Application :
Curved Light Box Backlighting
Certification :
CE ROHS
Warranty :
5 years/ 50000 hours
MOQ :
1000 metres
Delivery Time :
5-15 working days
Led color :
CCT dual color
Packaging Details :
250 metres/carton
Place of Origin :
ShenZhen, China
Voltage :
12V/24V
Brand Name :
SignLED
Product name :
CCT Lens Flexible LED Bar
Description
CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting
  • DC24V Stable Low-Voltage System for Signage Lighting Applications
  • 10W/m Stable Power & Uniform Brightness for Efficient Lighting Performance
  • Optical Lens Design for Even Light Distribution and Reduced Hotspots
  • IP33 Protection Design for Enclosed Light Box and Protected Signage Systems
Product Parameters
Model No. LED Color CCT (K) Voltage Power CRI Effect (LM/M) PCB Width
SN-RRW048
 3030

CCT Dual Color

 2100-10000K 12V/24V 10W/M ≥80 1300LM/M 12mm
Customizable
LED Density Copper Thickness Drive Method Cuttable Warranty SDCM Roll IP Level
48LEDs/M

3oz

 Constant Voltage 20.8mm 5Years Or 50000H ≤5 10m/roll IP33
Product Features

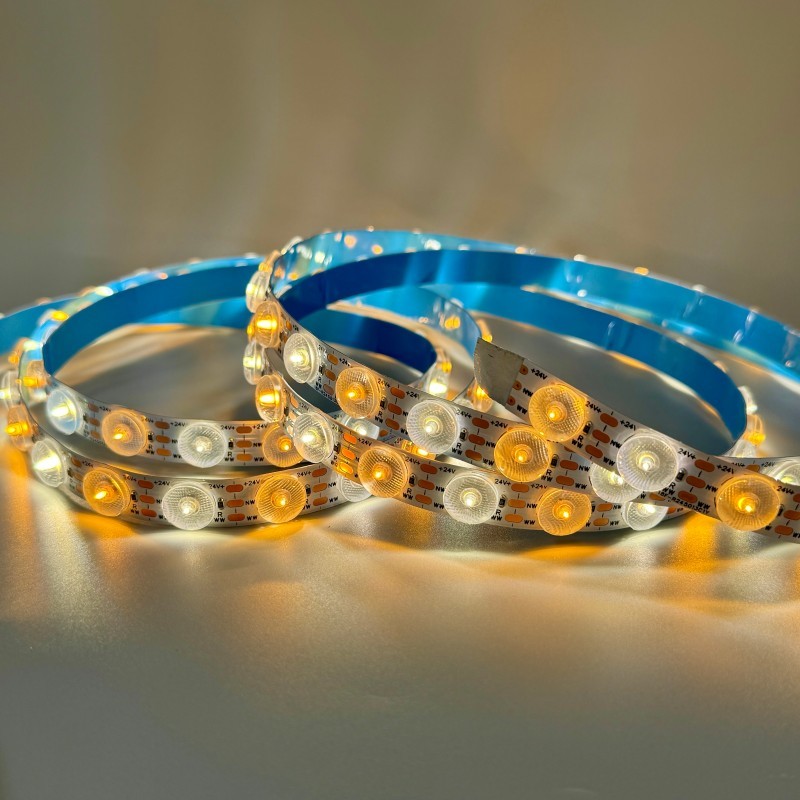

  • Flexible FPCB: Bendable for curved light boxes & signage
  • CCT adjustable 3030 LEDs (warm & cool white)
  • Strong self-adhesive backing for easy installation

CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting

Application

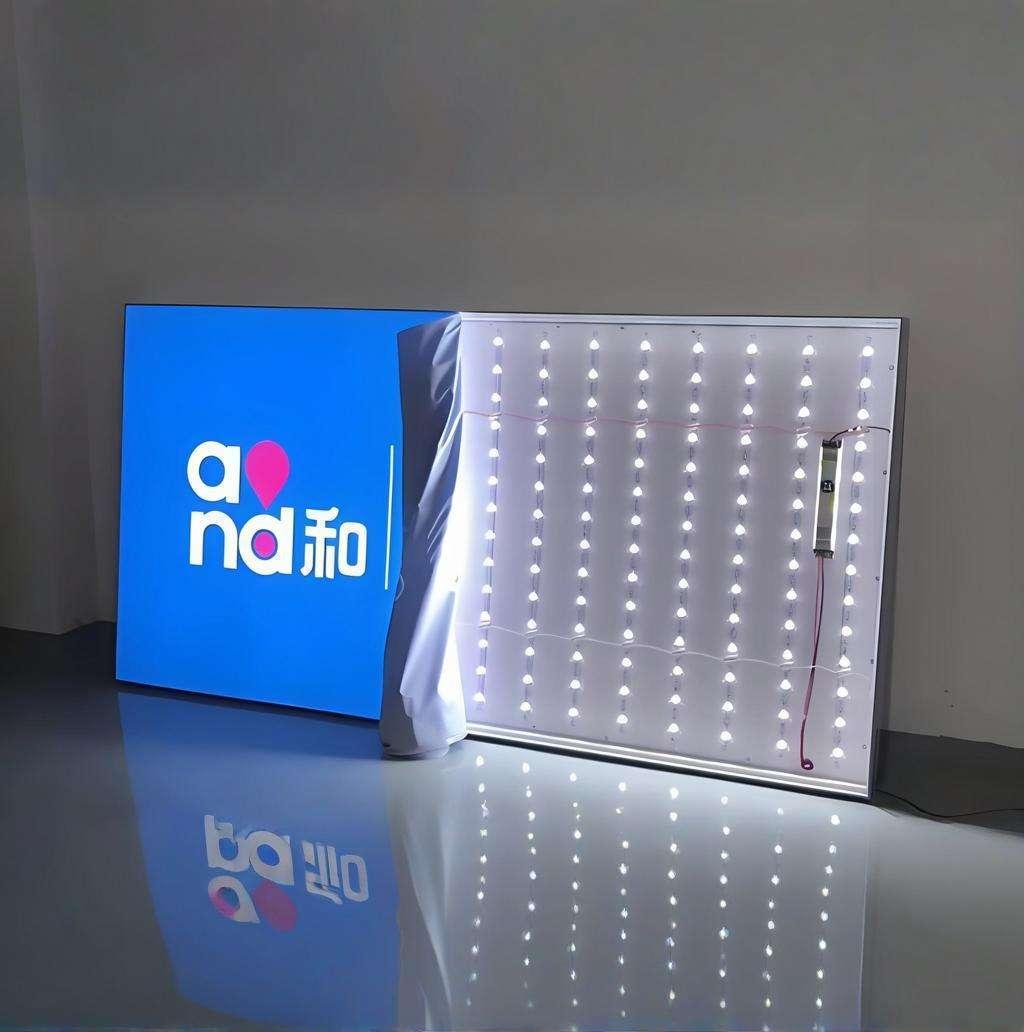

  • Curved flex backlight light box
  • Backlit acrylic logo & channel letters
  • Retail store brand signage
  • Irregular & curved advertising signs
  • Indoor commercial backlighting

CCT Lens Flexible LED Strip DC24V 10W/m for Curved Light Box Backlighting

FAQ

Q: What is a CCT Lens LED Strip?
A: It is an LED strip that combines adjustable color temperature technology with lens optics to improve lighting performance.

Q: Does CCT Lens LED Strip require a controller?
A: Yes, a compatible CCT controller is required for adjusting color temperature.

Q: What is the advantage of the lens design?
A: The lens helps control light distribution and improves illumination distance compared with standard LED strips.
