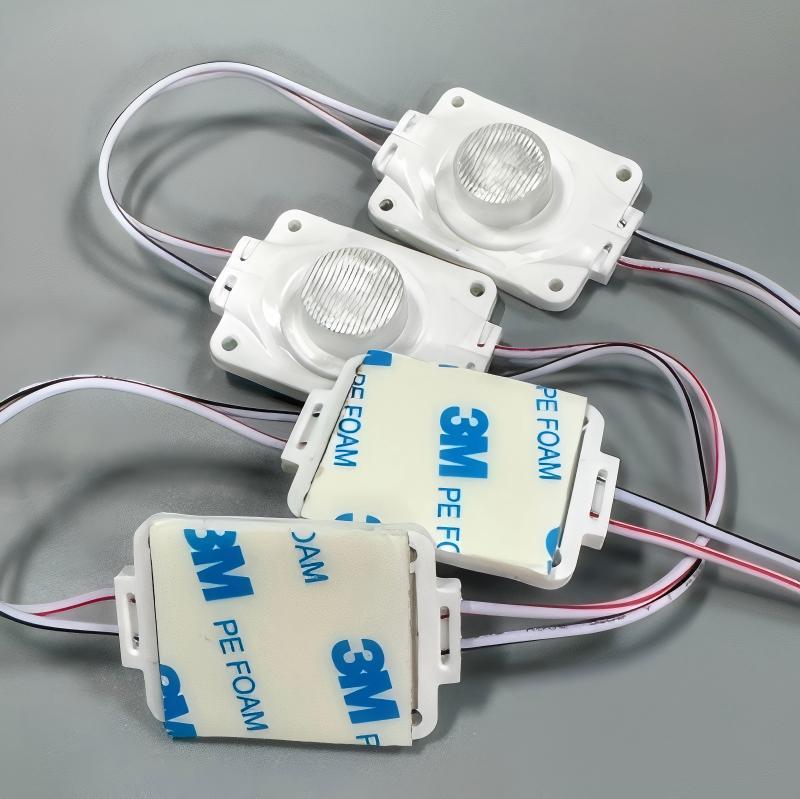

1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable
Specifications
Model Number :
Box1.5-MFF092
Led Chip :
3030
MOQ :
1000pcs
Delivery Time :
5-15 working days
Led Color :
White 2700k-9000k
Brand Name :
SignLED
Product Name :
Edge LED Module
Packaging Details :
1000pcs/carton
Payment Terms :
T/T,Western Union,Paypal,L/C
Module Size :
45*35*14mm
Price :
0.34-0.37USD/Piece
Brand Logo :
Free Cost Logo
Supply Ability :
5000pcs/day
Application :
LED Light Boxes
Certification :
CE ROHS
Warranty :
5 Years/ 50000 Hours
Place of Origin :
ShenZhen，China
Led Chain :
20pcs Chain
Description

1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable


Features a 1.5W 3030 side-emitting chip delivering 165LM of bright uniform warm white light to ensure vibrant visibility for lightbox signage.


Engineered with an IP65 waterproof rating to withstand harsh outdoor environments while offering superior durability and a long service life for exterior displays.


Utilizes a specialized 15×45° lens angle to maximize light spread within panels for consistent edge lighting while supporting dimmable 12V operation.



Product Parameters:


Model No. LED color CCT (K) voltage power LM Effect
(LM/W)		 Angle
3030 1led module SMD3030 White 2700~6500K 12V/24V 1.5W 165 110 15X45°
7000~10000K
Connection Qty Shell color Drive method Weight (g/100pcs) Warranty W T(℃) S T(℃) IP Level
20pcs White Constant voltage/current 1625 5Years
Or 50000H		 -25-+60 -25-+80 IP65



Product Features:


High brightness SMD 3030 LED module with constant current drive ensures stable and efficient light output for consistent performance.


Durable injection molded housing with IP65 waterproof rating protects against harsh outdoor elements and improves long term reliability.


Specialized 15x45 degree lens design optimizes light distribution and direction for uniform illumination across display structures.



1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable


Led Module Applications:

Edge-lit advertising displays and light box panels


Acrylic advertising boards


Outdoor signage in wet conditions


1.5W 3030 Edge LED Module 12V IP65 Warm White for Lightbox Signage Dimmable


FAQ:


Q1: Are you a direct manufacturer or a trading company?
A: We are a professional manufacturer dedicated to providing high-quality LED modules, along with comprehensive technical support and after-sales services.
Q2: What is your warranty policy for these products?
A: Our standard LED modules come with a reliable 5-year warranty to ensure long-term performance and peace of mind for your projects.
Q3: Do you offer OEM or ODM customization services?
A: Yes, we fully support both OEM and ODM projects and can customize specifications to meet your specific branding and technical requirements.
