Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
RFint
Model Number :
YSGM182008
MOQ :
10 pieces
Price :
Prices are negotiable
Packaging Details :
Opp bag
Delivery Time :
2-10days
Payment Terms :
T/T,Western Union,
Specification :
Standard
Packaging Type :
Opp bag
Application :
1700 to 2050MHz
Package / Case :
Standard
Series :
Standard
Features :
High output power
Size / Dimension :
7mm*9mm*2mm
Description :
Standard Voltage Controlled Oscillator
Manufacturing Date Code :
Other
Frequency :
1700 to 2050MHz
Output power :
≥8dBm @VCC=5V
Supply voltage :
3V~9V
Working current :
15mA~30mA
Description

Standard 1700-2050MHz VCO 8dBm Voltage Controlled Oscillator for YSGM182008 Electronic Component Distributor

Product Description
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor

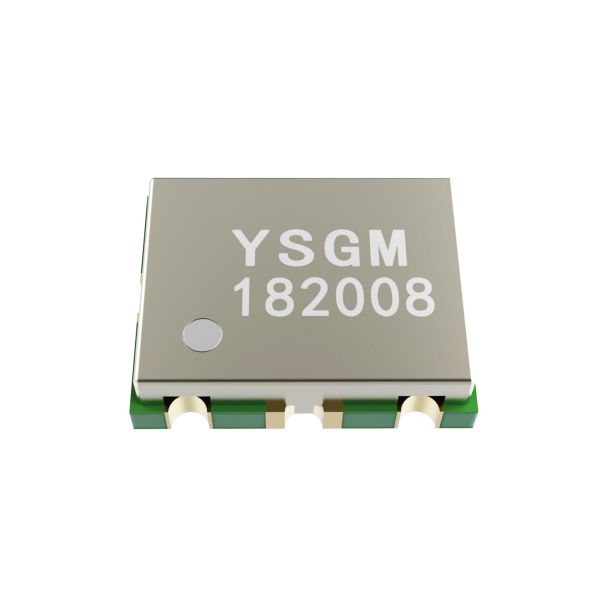

YSGM182008 is a highly integrated, standard package size VCO, using a high cut-off frequency RF transistor as an oscillating tube to output power.
High rate and good isolation.
This VCO uses high stability oscillation circuit structure, high precision varactor diode and high output power RF Triode.
The starting waveform is stable and the output power is high.
The system is supplied by 5V standard voltage, and the tuning voltage can be up to 9V, thus the broadband output can be realized.
YSGM182008 also integrates rectifier filter unit and RF output matching unit, requiring only a few peripheral components and good output power flatness.
The output end can be directly connected to 50 Ω radio frequency line, which is easy to use.
The device package adopts the general package size of 7mm × 9mm × 2mm, which can directly replace the market.
Market products of the same type.

Rated nominal value

Parameter Nominal value Unit Parameter Nominal value Unit
Tuning voltage 0 ~ 9 V Storage temperature -40 ~ +150 °C
Supply voltage 3~ 9 V Relative humidity <80% RH
Operating temperature -30 ~ +85 &deg;C Pressure 85 ~ 106 Kpa


Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor
Standard 1700-2050MHz Coaxial Resonator Oscillator For Electronic Component Distributor

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

1 year warranty for our products.
3.what can you buy from us?

Signal Booster, VCO, Anti drone jammer module, Power Amplifier, Gain Block and so on
