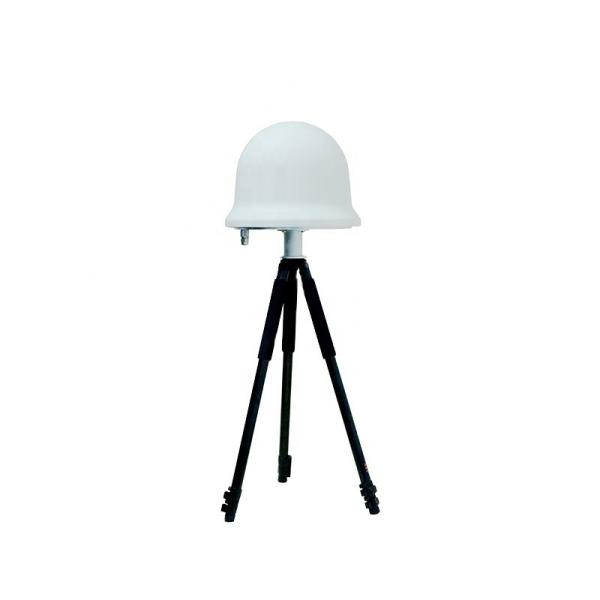

360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
Specifications
Application :
signal detector
feature :
signal analysis
Place of Origin :
China
Frequency :
GPS, BDS, GLONASS and GAL
Active distance :
Radius 5-8km
protection grade :
IP65
Price :
$28,000-30,000/pieces
Description
Product Description
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
Technical Parameters
No
Item
Technical Specifications
2
Transmitted spurious
<-36dBm (30MHz-1GHz, RBW is 100kHz),
<-30dBm (1GHz-18GHz, RBW is 1MHz)
3
Frequency range (MHz)
GPS L1:1574.40~1576.44
BDS B1:1559.05~1563.14
GLO L1:1597.55~1605.89
GAL E1:1563.14~1587.70
4
Occupied bandwidth (MHz)
GPS L1:≤2.046
BDS B1:≤4.092
GLO L1:≤8.34
GAL E1:≤24.552
5
Out-of-band suppression
±200KHz≤40dB, ±500KHz≤45dB
6
Equivalent isotropic radiated power
20W
8
Start Effect
＜10s
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
List Model
Remarks
SMA female connector
optional frequency point signal output
SMA female connector
GPS L1/BDS B1 GPS L1/BDS B1
SMA female connector
Optional frequency signal output
SMA female connector
GLONASS L1 signal output
RJ45
control/debugging
3P terminal (DC, GND, PE)
DC: 12V-36V
2P terminal (IN, OUT)
DC: 12V-36 (signal on, then connected, signal off, then disconnected)
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
Company Profile
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
360 Degrees UAVs Detector Cover BDS/GPS/GLONASS/GALILEO System
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
