Specifications
Application :
detect
feature :
detect
Place of Origin :
China
Price :
$100-5,000/pieces
Description
Product Description

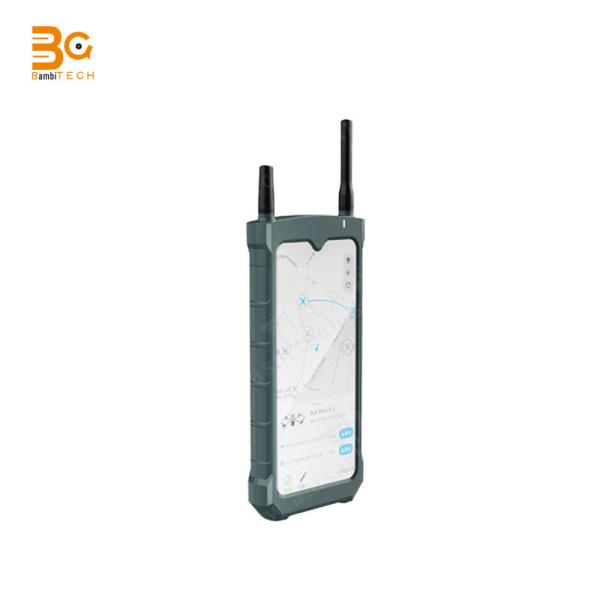

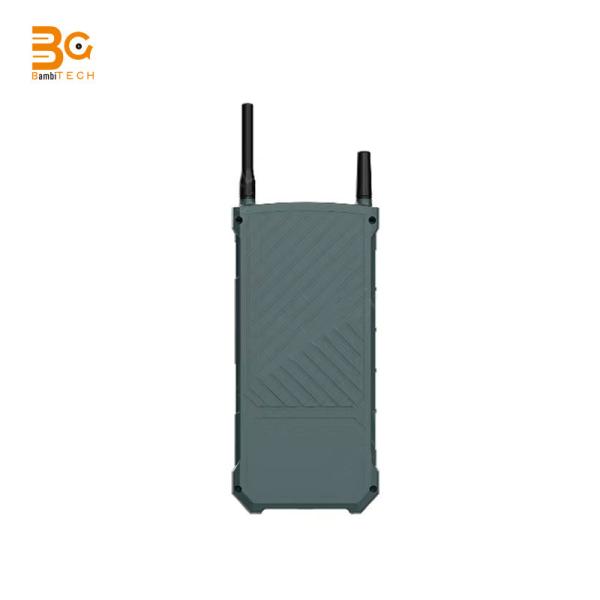

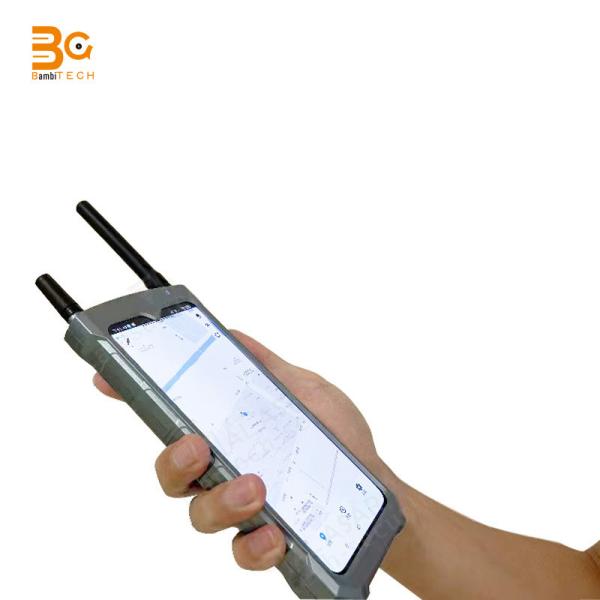

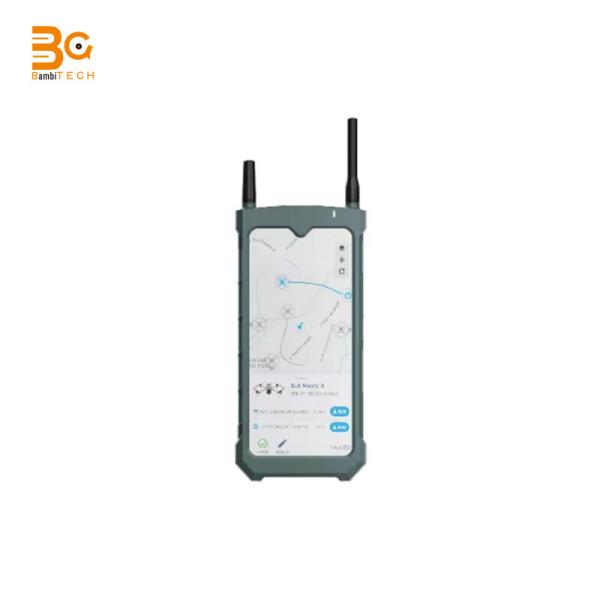

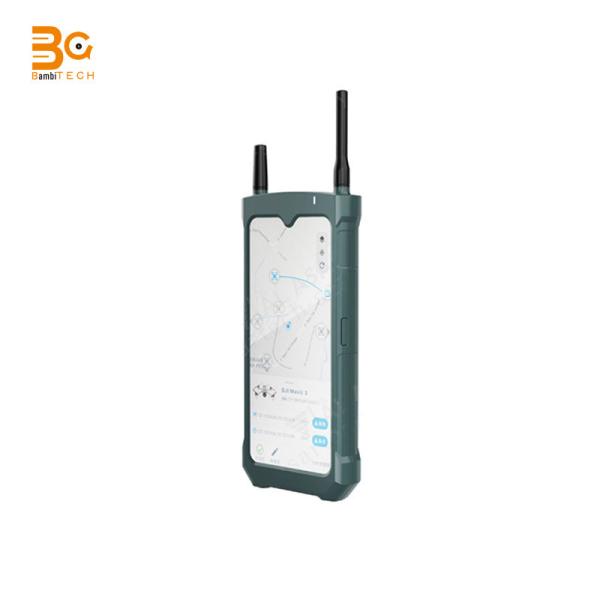

Handheld Accurately Locate UAS Locator
Specification
#
Index
Parameter
Notes
1
Locatable drone models
DJY, Air, Mini, FPV, Avata, etc
DJI with OcuSync protocols
2
Detection frequency band
2.4GHz、5.8GHz
3
Range
1~2km
Varies due to environment and drone model
4
Positioning accuracy
≤5m
Varies due to environment and drone model
5
Location refresh time
≤30s
1
Dimension
L*W*H(186mm*86mm*21mm)
2
Weight
（455±10）g
Without antenna
1
Battery capacity
4520mAh
Built in lithium battery
2
Battery life
~5 hours
Screen brightness is 20%, temperature is 25℃
3
Charging duration
~1.5 hours
Using the original charger
1
Working temperature
-20~50℃
2
Storage temperature
-25~60℃
1
Screen size
6.67 inches
AMOLED
2
Screen resolution
2400 * 1080 pixels
3
Screen refresh rate
120Hz
1
Memory
8GB
2
Storage
128GB
2
Network environment
Supports internet and single machine offline mode operation
Product Function
1）Drone Positioning [1]: A singleAAT-H1L-D can locate the coordinate of a drone, which can be displayed in the form of a "drone icon" on the device screen. 2）Pilot Positioning [2]: Single machine can locate the position of the remote control (pilot), which can be displayed on the device screen as a "remote control icon". 3）Pilot Position Navigation[3]:AAT-H1L-D can plan the route for searching for drone controllers and provide a "one click position navigation" function. 4）Unique Identification [4]: Can recognize the unique serial number (SN) of the DJI series (with OcuSync protocol) drone. 5）Trajectory Tracking [5]: It can display the flight trajectories of multiple drones simultaneously on the electronic map interface. 6）Multidimensional Information Monitoring[6]: It can display real-time information such as the current drone model, position information (longitude and latitude), speed, altitude, and pilot position (longitude and latitude) in the detection list column. 7）Black and Whitelist[7]: A white list can be set, and the device wont alarm once a whitelist drone is detected. Note: [1] [2] [3] [4][5][6][7] only applies to DJI series with OcuSync protocols. 8）Intrusion Alarm: When a drone intrusion is detected, the device will give an alarm through sound, light, vibration, and other means. 9）Data Playback: Supports the historical track playback function, assisting security personnel in analyzing historical drone flight data. 10）Detection Record: The detection record list can retain historical detection records, including multidimensional information such as drone serial number, model, frequency, etc. 11）Visual Data Analysis: Support drone detection and flight data statistical analysis, which can be displayed through a graphical interface.
Product features
1）Passive detection: does not emit any electromagnetic signals, possesses no electromagnetic environmental pollution, environmentally friendly. 2）Large touch screen interaction: Adopting a 6.67-inch large screen touch design, the operation is simple, convenient, and fast. 3）Mobile and portable: Exquisite and lightweight in appearance, easy to hold and carry, switch on ready to use. 4）Long lasting endurance: Equipped with a 4500mAh high capacity battery, it can operate continuously for up to 5 hours. 5）Standard charging interface: Type-c standard charging interface, can be connected to an external power adapter or mobile power supply for charging.
Company Profile
Handheld Accurately Locate UAS Locator
Handheld Accurately Locate UAS Locator
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
