Specifications
Brand Name :
Fionexx
Certification :
CCC/CE/RoHS/FCC/CB/TUV/IEC
Place of Origin :
china
MOQ :
Negotiate
Price :
Negotiate
Supply Ability :
1000 pcs per month
Delivery Time :
21-35 days
Packaging Details :
Flight case
Maintenance :
Front/Rear access
Single Point Brightness Corection :
Have
Brightness(Nits) :
800-2000
Color Temperature(K) :
3200-9300
Viewing Angle(V/H) :
160°/160°
Brightness/Color Unifommity :
≥97%
Weight Cabinet :
4kg
Contrast :
6000：1
Frame Frequency :
50/60
Gray Level :
14/16
Refresh Rate(Hz) :
7680
Description

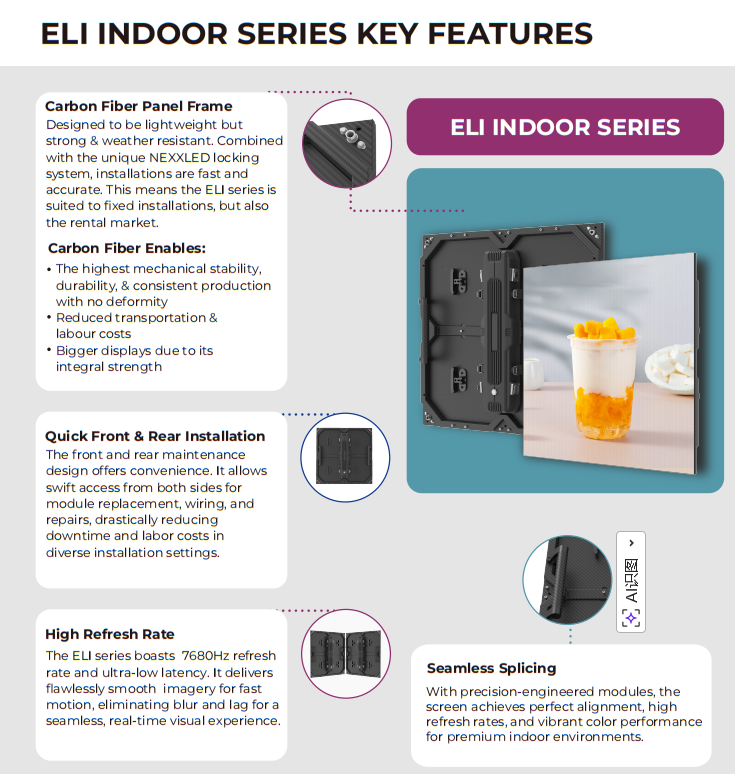

The ELI series redefines lightweight strengh and visual performance with its carbon fiber panel frame—offering superior durability, weather resistance, and ultra-light 4kg panels. Its front and rear maintenance access ensures effortless installation, wiring, and repair from either side, greatly reducing downtime. With a 7680Hz high refresh rate and micro LED flip-chip technology, the ELI series delivers vivid images with exceptional clarity and realism. The seamless splicing design ensures perfect module alignment and uniform color performance across large displays. Enhanced by a 160° wide viewing angle, HDR capability, low blue light emission, and energy-efficient operation.
Low-Power Design Carbon Fiber Panel Seamless Splicing Lightweight All In One Module Quick Front And Rear Installation Flexible Curvature Adjustment Indoor LED Display
Technical Specifications
P1.2 P1.3 P1.5 P1.9 P2.6 P2.9
LED Type SMD1010(GOB) SMD1010(GOB) SMD1010(GOB) SMD1212(GOB) SMD1515 SMD1515
Pixel Density(dot/m²) 640000/m² 589824/m² 409600/m² 278784/m² 147456/m² 112896/m²
Module Dimension(mm) 250*250 250*250 250*250 250*250 250*250 250*250
Panel Size(mm) 500x500x67 500x500x67 500x500x67 500x500x67 500x500x67 500x500x67
Module Quantity(WXH) 2X2 2X2 2X2 2X2 2X2 2X2
Panel Resolution 400X400 384X384 320X320 264X264 192X192 168X168

Low-Power Design Carbon Fiber Panel Seamless Splicing Lightweight All In One Module Quick Front And Rear Installation Flexible Curvature Adjustment Indoor LED Display

The ELI series features ultra-light carbon fiber panels, easy maintenance, and seamless splicing. With 7680Hz refresh, HDR, and vivid clarity, it delivers stunning, energy-efficient visuals for any large display.
Maintenance Front / Rear access
Single Point Brightness Correction Have
Brightness(Nits) 800-2000
Color Temperature(K) 3200-9300
Viewing Angle(V/H) 160°/160°
Brightness/Color Uniformity ≥97%
Weight Cabinet 4kg
Contrast 6000:1
Frame Frequency 50/60
Gray Level 14/16

Low-Power Design Carbon Fiber Panel Seamless Splicing Lightweight All In One Module Quick Front And Rear Installation Flexible Curvature Adjustment Indoor LED Display
Low-Power Design Carbon Fiber Panel Seamless Splicing Lightweight All In One Module Quick Front And Rear Installation Flexible Curvature Adjustment Indoor LED Display

Refresh Rate(Hz) 7680
Max Power Consumption 300-400(W/m²)
Avg Power Consumption 600(W/m²)
Protection Level IP43
Operating Life 100,000 hours
Power Input AC100-240V,50/60Hz
Operating Temperature -20~60°C
Operating Humidity 10%~85% RH
Cert. CCC/CE/RoHS/FCC/CB/TUV/IEC
Low-Power Design Carbon Fiber Panel Seamless Splicing Lightweight All In One Module Quick Front And Rear Installation Flexible Curvature Adjustment Indoor LED Display
In hotel lobbies and presentation rooms, screens offer a dynamic way to display information, from event schedules to promotional content, creating a modern and engaging environment for guests and visitors.
