Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Specifications
MOQ :
1
Price :
US $1,500 / set
Brand Name :
DY
Model Number :
zks
Certification :
CE
Place of Origin :
China
Packaging Details :
Standard Wooden Box Packaging
Delivery Time :
7-15 work days
Model NO. :
ZKS
Structure :
Conveyor System
Material :
Stainless Steel
Material Feature :
Heat Resistant
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition :
New
Powder :
As machine model
Transport Package :
Standard Wooden Box Packaging
Trademark :
Dayong
Origin :
China
HS Code :
8428320000
Production Capacity :
100 Sets/Mouth
Description

Vacuum Feeder featuring pneumatic three way valve and compressed air back flushing device for powder feeding and filter cleaning

Product Description

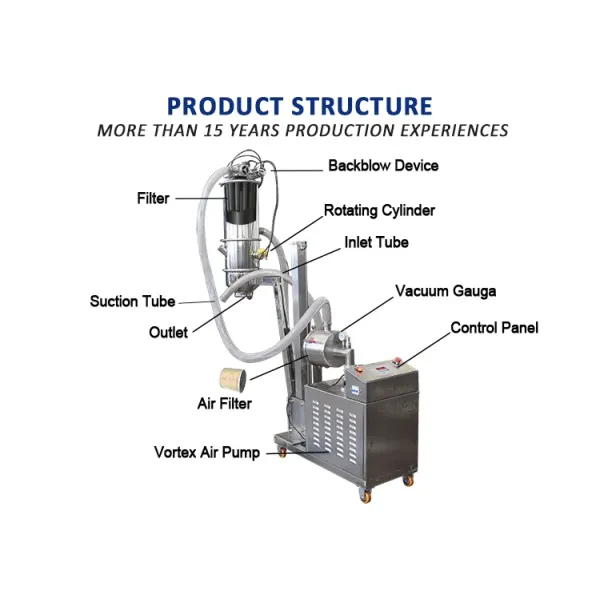

The ZKS vacuum feeder operates by drawing air through a vacuum pump, creating a negative pressure condition at the suction nozzle and throughout the entire system. Powder particles are drawn into the nozzle along with ambient air, forming an air-material mixture that travels through the suction pipeline into the feeder hopper, where gas and solids are separated. The separated materials are then discharged into the receiving unit.
Material feeding and discharging are achieved through the continuous opening and closing of a pneumatic three-way valve, whose operation is regulated by the control system. The vacuum feeder is equipped with a compressed air backflushing mechanism. During each discharge cycle, compressed air pulses clean the filter, dislodging powder accumulated on its surface to maintain stable suction performance.
For models equipped with level control, automatic feeding is managed by a material level controller. The vacuum feeder stops charging when the material in the receiving hopper rises above a preset level, and restarts automatically when the level falls below a set point, thus completing automatic feeding for the receiving equipment.

.

Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Product Parameters
Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Why Choose Us
Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Packing
Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Application
Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
Our Company

Xinxiang Dayong Vibration Equipment Co., Ltd., is a technological enterprise created by a professional team. Dayong makes every effort to produce multi functional machines with modern design, and high practicability and reliability, there is great innovation in our products, therefore Dayong wins a wide favors from customers. Dayong offers the widest range of sieving and filtration equipment, mainly produces slurry vibrating sieve, drum vibrating sieve, flat vibrating sieve, high-frequency glaze vibrating sieve, dry-powder vibrating sieve, etc., with our extraordinary confidence, stable high quality and client-ease service.

Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve Compressed Air Conveyor Vacuum Feeder Pneumatic Three Way Valve
FAQ

The proper selection of the industrial vaccum conveyor system depends on the material, conveying distance, output required, charaterristics of the material etc:

1. Conveying product : _____

2. Viscosity:_____%

3. Capacity:________kg/ hour

4. Conveying length:_______

5. Conveying heigh:______

6. Voltage:______V, Frequency:______HZ, ______ phase
