380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
Specifications
Brand Name :
DY
Model Number :
DYS
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1900-2100
Payment Terms :
MoneyGram,Western Union,T/T,D/P,L/C,D/A
Supply Ability :
Customize
Delivery Time :
7-15 work days
Packaging Details :
Wooden Package
Type :
Circular
Voltage :
380V/220V/Customize
Core Components :
Motor
Weight :
150KG
Warranty :
1.5 Years
Application :
Screening and impurity removal
Layer :
1-5 Layers
new Color as your requirment Screening efficiency :
>95%
Frequency(r/m) :
1450
Mesh Size :
5-500 mesh
Description
High Efficiency Circular Straight Discharge Screen/vibrating Separator
Product Description
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen

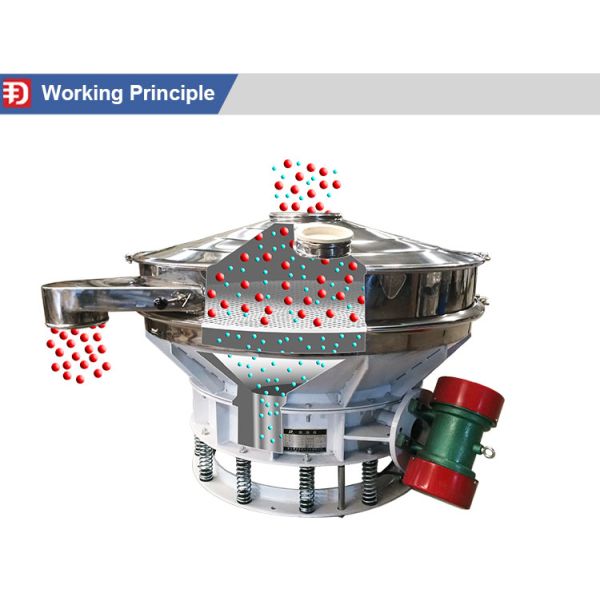

Description
The vertical motor of direct discharge sifter, which is installed with eccentric hammers on the top and bottom, is regarded as a
vibratory source.The eccentric hammers change the track of rotation into horizontal,vertical and inclined movement, and then pass
the movement to the sieving surface.Adjusting the phase angle between the top and bottom eccentric weight can change trajectories
of the materials on the sieve.

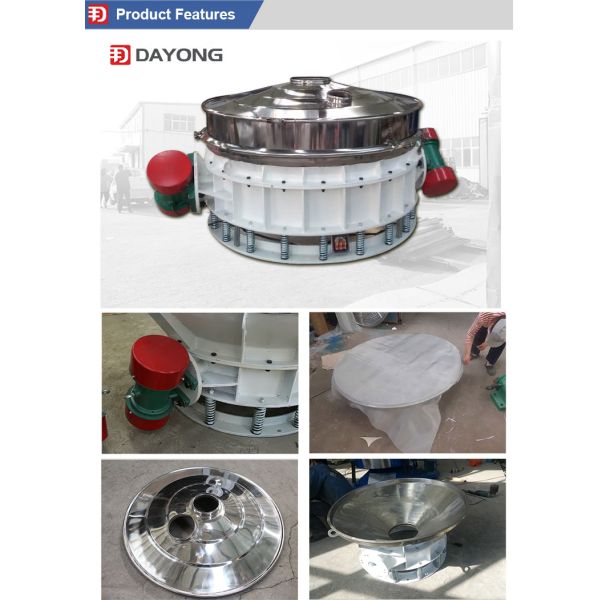

Features
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
1. Simple structure, easy operation, large processing capacity, long service life, high productivity, low power consumption, and easy installation. 2. The processing speed of materials is fast, and even the materials will not pile up. The material screening speed is fast, and the effect is obvious. 3. It can be connected to other devices, easy to install, and also saves space. 4. Protection level IP54, F-class insulation; The motor has a long service life.
Technical Parameter
Model
Inlet diameter (mm)
Mesh Diameter (mesh)
Power
Frequency (r/m)
Amplitude (mm)
DYS600
300
0~100
0.37
1450
3~5
DYS800
300
0~100
0.55
1450
3~5
DYS1000
380
0~100
0.75
1450
3~5
DYS1200
400
0~100
1.5
1450
3~5
DYS1500
400
0~100
2.0
1450
3~5
DYS1800
400
0~100
2.2
1450
3~5
Note: For more information, please directly contact us or leave your message, our engineer will timely reply you.
Payment & Shippment
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
Company Profile
380V 220V Circular Vibrating Screen Separator Straight Discharge Screen
Company Information
Xinxiang Dayong Vibration Equipment Co., Ltd., located in Xinxiang city, Henan province, China, which is an enterprise integrated
scientific researching, device producing and product marketing. We mainly produces DY series vibrating screen, linear vibration
sieve, test sieve, vibration conveyor, vibration feeder and other handling equipment. Our company mainly produces the products for
sieving, conveying, elevating, and crushing equipment. Our company has strong technical force, with the strategy aiming to obtain
enterprise reputation, be bold in innovative technology and provides good service, and our company has become a well-known
enterprise in the industry.
FAQ
Q: Please provide the following information for us.
1. material name.
2. the capacity you required (per hour)
3. Machine material.
Please choose one:
a. Polypropylene PP plastic material
b. All stainless steel 304
c. All carbon steel
d. The contacting part is stainless steel, the other parts is carbon steel.
4. How many layers you need??
5. Please inform the voltage & frequency in your city.

Q: What is the real delivery time of your factory? A: 7-10 days for general series products, meanwhile, customized products would
need 10 days to 20 days based on different situations.
Q: How do your after-sale service work if the product got damaged? A: In the guarantee time 18 months, our general after-sale
service is changing the damaged parts for the customer. Normally, we will provide telephone guidance.
