Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Specifications
MOQ :
1
Price :
US $1,500-1,600 / P
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DYB-800
Transmission Structure :
Vibrating Screen
Usage :
Separation Screening
Works :
Rotary Vane Shaker
Object :
Food Processing
Shaft Number :
Single
Running Track :
Circular Vibrating Screen
Supporting Device :
Steel Spring
Warranty :
18months
Customized :
Customized
Condition :
New
After-sales Service :
Online Video
Material :
Stainless Steel 304/316/ MID-Steel
Motor :
Vertical Vibration Motor
Layer(S) :
1-5 Layers
Mesh Size :
0-200 Mesh
Cleaning System :
Bouncing Ball
Installation :
Engineer Guide
Operation :
Automatic Continuous Operation
Powder :
0.25-5.5kw
Transport Package :
Standard Export Wooded Case
Specification :
800mm diameter
Trademark :
DY
Origin :
China
HS Code :
847410000
Production Capacity :
50 Set/Sets Per Month
Description

Soya Flour Sieving Sifting Industries Machine/Tumbler Vibrating Screen Olive/Tapioca Flour Gyratory Screen

Tumbler Screener Description:

Tumbler screeners uses elliptical action which aids in screening of even very fine material. As like panning for gold, the fine particles tend to stay towards the center and the larger go to the outside. It allows for segregation and unloads the screen surface so that it can effectively do its job. With the addition of multiple decks, ball cleaning decks and ultrasonic vibration systems, even difficult products can be sieved at high capacity to very fine separations.

Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen

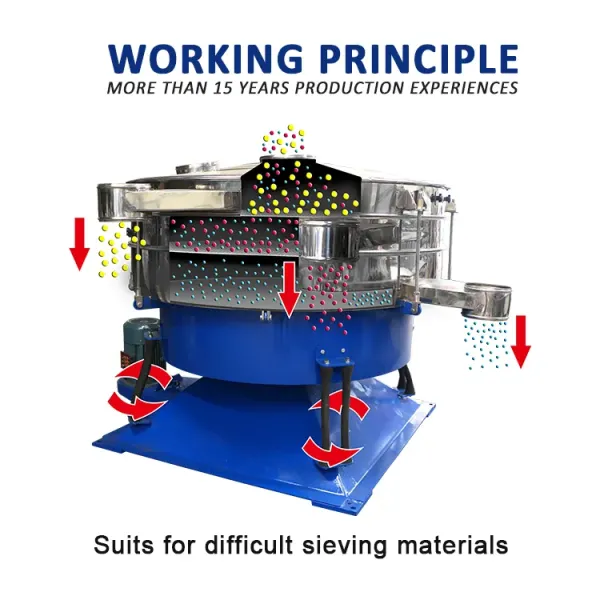

Working principle
The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft, The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.

Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory ScreenProduct Parameter
Model Diameter Screening area Decks Comsumption power
DYB-600 600mm 0.29 1-5 0.25
DYB-1000 1000mm 0.71 1-5 1.5
DYB-1200 1200mm 1.11 1-5 2.2
DYB-1600 1600mm 1.83 1-5 2.2/4
DYB-2000 2000mm 2.62 1-5 2.2/4
DYB-2400 2400mm 3.62 1-5 5.5
DYB-2600 2600mm 5.31 1-5 5.5

Vibro Screens Main Characteristics
Ready to use instantly - Plug & Play.
Provides very high screening characteristics.
90% efficiency in thin or small products.
Minimum 20% more efficient compared to conventional round screeners.
Minimum 50% lower motor power compared to conventional screening.
Manufactured up to 4 Decks and 5 different sized products.
Modular structure which allow deck insert or extract easily.
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory Screen
Vibratory Screeners Application
Tumbler screening technique are widely used in chemical, pharmaceutical, food processing, mining, plastics, stone and soil, metallurgy, and recycling industries in order to sort small, heavy, light, dry, dusty, wet and sticky materials which are less than 20 millimeter.
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory ScreenWhy choose us
Six free services including regular follow up services:
1.FREE technical enquiries
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service

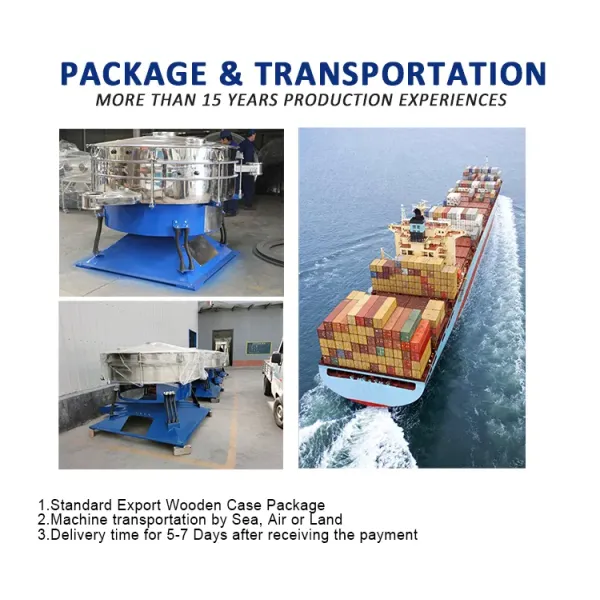

Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory ScreenPacking &Shipping
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory ScreenOur Company
Xinxiang Dayong Vibration Equipment Co., Ltd. is a professional manufacturer of vibration screen, conveyor and elevator created by a team of long time experienced engineers.
Dayong has strong technical force rich production experience. Since its production, makes every effort to produce multi-functional machines with modern design and high practicability and reliability, there is a great innovation in our products, improved the lack of similar products, therefore Dayong wins a wide favors from customers.
Soya Flour Sieving Sifting Tumbler Vibrating Screen Olive / Tapioca Flour Gyratory ScreenFAQ
How to choose the most suitable machine for you, please provide us more detail information as the followings:
1. Material:
Material name:_____
Feeding size:_____mm
Material density:_____t/m3
Material distribution:_____%
Separation destination:_____

2. Screen machine:
Outlet Capacity:_____t/h
Screen decks: _____
Particle size distribution of each layer: _____
Opening size:_____mm
Machine material:_____
