Specifications
Certification :
CE;ISO
MOQ :
1
Price :
US $1,800-2,000 / s
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DY-1000
Transmission Structure :
Vibrating Screen
Usage :
Mine Shaker
Works :
Rotary Vane Shaker
Object :
Sand
Shaft Number :
Single
Running Track :
Circular Vibrating Screen
Supporting Device :
Coil Spring
Warranty :
1 Year
Customized :
Customized
Condition :
New
After-sales Service :
Online Technical Video
Deck :
1-5 Decks
Cleaning System :
Bouncing Ball
Power :
0.25-3(Kw)
Material :
SUS 304/316 or Carbon Steel or as Customer Request
Transport Package :
Standard Export Wooden Box Packing
Specification :
DY-1000
Trademark :
Dayong
Origin :
China
HS Code :
8474100000
Production Capacity :
100 Sets/Mouth
Description

Hot Sale Multi-Layer Electric Rotary Vibrating Sieve Vibrating Sifter for Silica Sand

Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to provide customers with reasonable screening, conveying and crushing equipment design solutions.
Product Description
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand

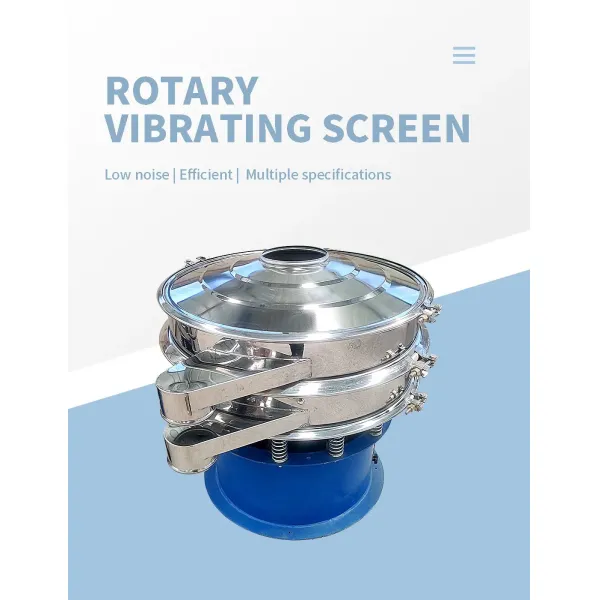

Introduction
Rotary vibrating screen uses upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the screen surface. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical horizontal and inclined movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
Product Parameters
Model
Power(kw)
Valid Diameter of screen(mm)
Volume(mm)
Layers
DY-600-1S
DY-600-2S
DY-600-3S
0.55kw
550mm
800*800*680
800*800*780
800*800*880
1
2
3
DY-800-1S
DY-800-2S
DY-800-3S
0.75 kw
750mm
900*900*780
900*900*930
900*900*1080
1
2
3
DY-1000-1S
DY-1000-2S
DY-1000-3S
1.5 kw
950mm
1160*1160*880
1160*1160*1030
1160*1160*1180
1
2
3
DY-1200-1S
DY-1200-2S
DY-1200-3S
1.75 kw
1150 mm
1360*1360*980
1360*1360*1160
1360*1360*1360
1
2
3
DY-1500-1S
DY-1500-2S
DY-1500-3S
2.2 kw
1450mm
1850*1850*1130
1850*1850*1330
1850*1850*1550
1
2
3
DY-1800-1S
DY-1800-2S
DY-1800-3S
3 kw
1750mm
2200*2200*1360
2200*2200*1460
2200*2200*1680
1
2
3
For more specifications and customization requirements, please consult our staff.
Features
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
1.Small size, light weight, saving space.

2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged.

3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns, but an ultrasonic system needs to be added.), the smallest filter up to 5 microns.

4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.
5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use).

6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.
Specification
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand

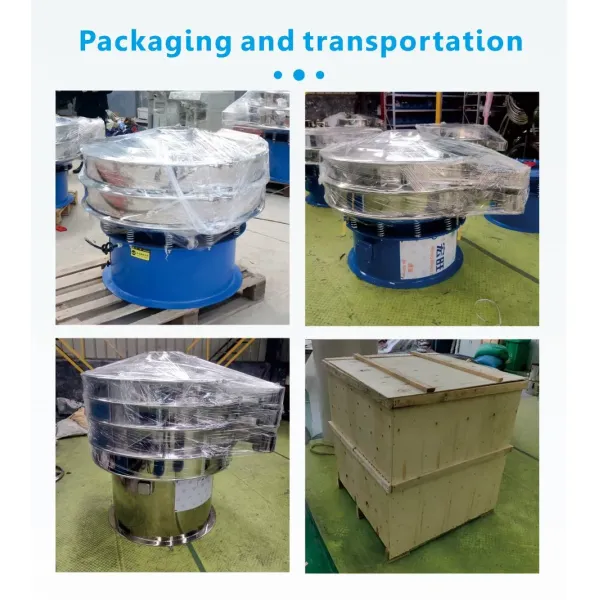

Packing & Delivery
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
Certifications
Multi Layer Electric Rotary Vibrating Sieve Vibrating Sifter For Silica Sand
FAQ
a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information:
Name and feature of the raw material? Aim of using: get rid of impurity, filtration, grading Handling capacity: kg /h, L/h The raw material size: (mesh or mm) How many final materials you want, or how many layer you need? It appreciate If you send us the relevant pictures about the details.
c: How many kinds of material are supported?

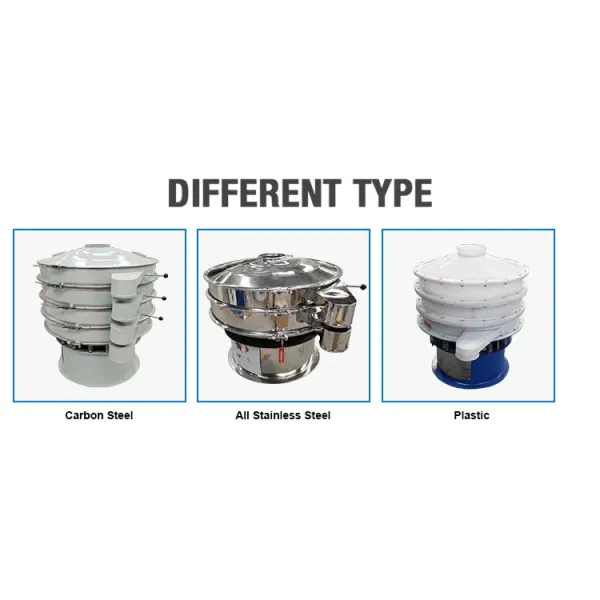

All stainless steel (304, 316L) All carbon steel Q235A Contact part Stainless steel.
d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
