Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Specifications
MOQ :
1
Price :
US $280-900 / set
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DY-200
Transmission Structure :
Lab Testing Machine
Usage :
Lab Owder/Particle Analysis
Works :
Rotary Vane Shaker
Object :
Fine Powder
Shaft Number :
Single
Running Track :
Circular Vibrating Screen
Supporting Device :
Steel Spring
Warranty :
18months
Customized :
Customized
Condition :
New
After-sales Service :
Online Video
Name :
Test Sieve Analysis Equipment for Materials Gradin
Key Word :
Test Sieve Analysis Equipment
Material :
Stainless Steel 304/316
Motor :
Vertical Vibration Motor
Layer(S) :
1-8 Layers
Mesh Size :
0-1200 Mesh
Cleaning System :
Ultrasound
Installation :
Engineer Guide
Operation :
Automatic Continuous Operation
Transport Package :
Standard Export Wooded Case
Specification :
200mm diameter
Trademark :
DY
Origin :
China
HS Code :
847410000
Production Capacity :
50 Set/Sets Per Month
Description

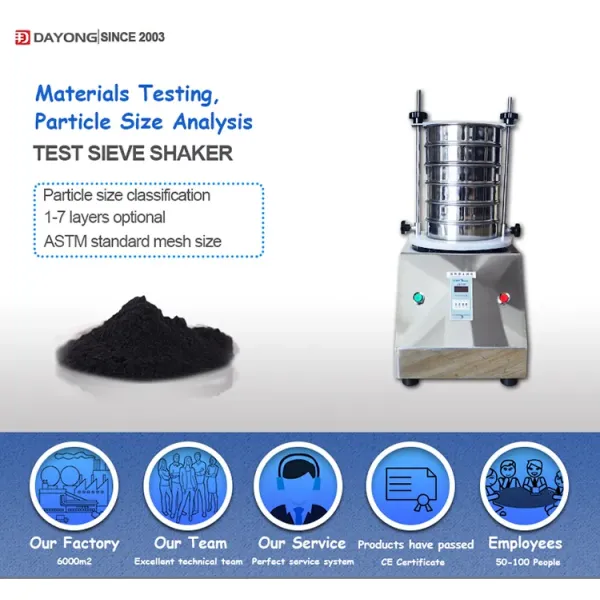

Test Sieve Analysis Equipment for Materials Grading

Working Principle

All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface. Multi-layer standard lab analysis test sieve with timer is a new and precision equipment for continuously selecting / sifting / testing the powder. It uses the new type vibrating motor as the source of vibration. It is usually equipped with Φ100mm, Φ200mm,Φ300mm standard sieve.We can also produce the test sieve according to the customer's requirements.

Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker

Machine Type

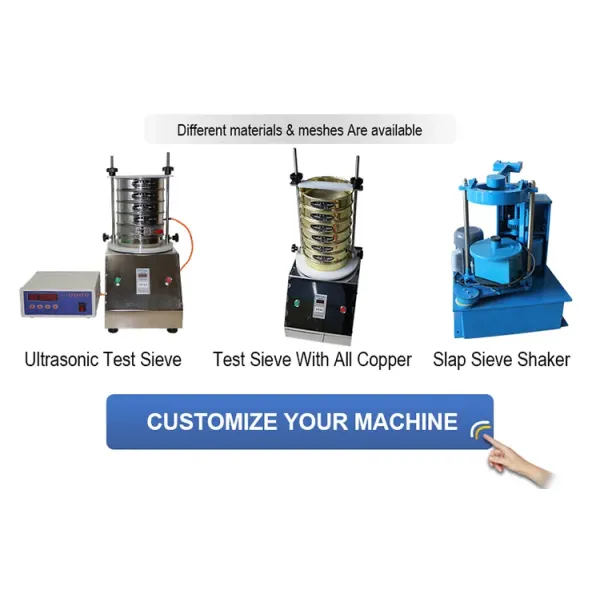

There are usually three types:Ultrasonic test sieve,Test sieve with all copper,Slap sieve shaker
Ultrasonic test sieve is suitable for materials that are difficult to screen and have small meshes.
Test sieve with all copper is suitable for general materials.
Slap sieve shaker is suitable for materials that are easy to block.
If you don't know what kind of equipment your material needs, please let us know your material, and we will choose the most suitable machine model for you and quote a preferential price.
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker

Product Parameters
Main features:
1) Low noise,light weight
2) The platform operation without fixed.
3) Multi-layer screen can be installed, up to 8 layers.
4) We offer customized lab test sieve shaker.if you have special request, contact customer service.
Items Name Unit Data
1 Layers Layer 1-8
2 Diameter mm Φ200 Φ300 Φ400
3 Sieves Diameter mm Φ75 Φ100 Φ200 Φ300 Φ400
4 Granularity mm 0.038-3
5 Noise db <50
6 Feeding Capacity(once) g <200g/ml
7 Amplitude mm <5
8 Voltage v 110/220/230
9 Speed r/min 1420
10 Powder kw 0.125
11 Overall Dimension mm 450*415*800
12 Weight kg 45
Application Industry

Widely used in food, medicine, chemicals, abrasives, pigments, mining, metallurgy, geology, ceramics, defense and other industries research institutes, laboratories, laboratory, production control, testing and analysis.

Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker
Packaging & Shipping

Packaging Details:We offer free, Professiona,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
Delivery Time:7-10 working days after payment.
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker

Company Profile

Company Information

Xinxiang Dayong Vibratory Equipment Co., Ltd. is covering an area of 6000 square meter and having more than 20 employees, the company has passed through CE quality management system certification, formed the perfect operation and management system in design and development, product manufacturing, market promotion, equipment installation and after sales service.
Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker

FAQ

Pls confirm and provide below information to us before making an exact solution and price for you for Automatic analysis lab test sieve shaker.

Q: What information do I need to provide us to getting an accurate quotation for Standard laboratory test sieve shaker machine?
A: 1. Your material's name, bulk density, and water content.
2. How many layers are you need? And what's the screen mesh size for each layer?
3. Voltage and frequency.

Q: How long for the delivery time?
A: 5-10 working days for conventional products.

Q: How long for warranty time?
A: 12 months from the shipping date.
