Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Automatic Vertical Case Erecting, Packing and Sealing Machine
Specifications
Model Number :
LKPF-S5
Main Processes :
Case feeding, case erecting, bottom flap forming, product collation, robotic loading, optional separator-pad placement, top flap closing and tape sealing
MOQ :
1
Delivery Time :
90 days
Air Supply :
0.6 - 0.8MPa
Place of Origin :
China
Packaging Details :
Seaworthy Export Packaging
Brand Name :
SieracTech
Payment Terms :
T/T,L/C
Production Capacity :
2-5 cases/min
Total Power :
10 kW
Price :
Negotiable
Carton Specifications :
Length 200-600 mm; Width 150-500 mm; Height 150-400 mm
Supply Ability :
30 Units/Month
Dimensions :
6200 × 2200 × 2680 mm
Sealing Formats :
Pressure-sensitive tape
Certification :
CE/IO
Description

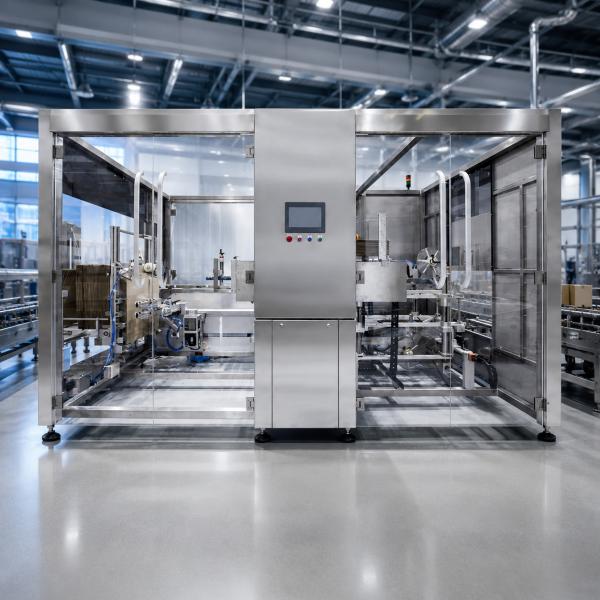

Automatic Vertical Case Erecting, Packing and Sealing Machine
The LKPF-S5 integrates case erecting, bottom closing, product collation, robotic top loading and case sealing in one automated system. Flat corrugated case blanks are manually replenished in the case magazine. The machine extracts and opens each blank, forms the case bottom, presents the open case at the loading station, loads grouped products vertically from the top and seals the finished case with pressure-sensitive tape.
The system is designed for medium- and small-format cartons or multipacks that must be arranged into a defined packing pattern before being loaded into a shipping case. A PLC and touchscreen provide recipe-based control and operating status display. The modular stations can operate as a standalone case packing cell or be connected to upstream conveying and downstream logistics equipment.
Key Configuration Highlights
  • Integrated workflow: combines case blank feeding, case opening, bottom flap forming, product arrangement, top loading and tape sealing in one line
  • Broad case range: adjustable for case dimensions from 200 × 150 × 150 mm to 600 × 500 × 400 mm
  • Dual-servo loading system: the cross-arm manipulator moves between the product collation platform and the case loading position through synchronized horizontal and vertical axes
  • Flexible product handling: vacuum gripping and clamping components can be configured according to the product surface, group pattern and case arrangement
  • Optional separator-pad handling: a pneumatic pick-and-place unit transfers pads from the magazine to the case loading position when layer separation is required
  • Line-ready controls: PLC and HMI control support independent operation and interlocked production with connected equipment
Automatic Vertical Case Erecting, Packing and Sealing Machine
Technical Specifications
Parameter Specification
Packing speed 2-5 cases/min
Machine dimensions 6200 × 2200 × 2680 mm
Applicable case length 200-600 mm
Applicable case width 150-500 mm
Applicable case height 150-400 mm
Case sealing method Pressure-sensitive tape
Working air pressure 0.6-0.8 MPa
Electrical supply 380 V, 50 Hz
Main machine power 10 kW
Control method PLC + touchscreen HMI
Note: Actual output depends on case dimensions, product characteristics, packing pattern, separator-pad requirements and line interface conditions. Final specifications should be confirmed through product and case sample evaluation.
