Q896 7 Android POE Touch Screen Monitor With CVBS IN
Q896 7 Android POE Touch Screen Monitor With CVBS IN
Q896 7 Android POE Touch Screen Monitor With CVBS IN
Q896 7 Android POE Touch Screen Monitor With CVBS IN
Specifications
Brand Name :
SIBO
Model Number :
Q896
Certification :
CE, FCC
Place of Origin :
Shenzhen
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
colour :
black / white
serial port :
rs485/ rs232/ gpio
DC IN :
9V-36V
Special :
power over ethernet
Power supply :
poe / dc in
Service :
OEM / ODM
Application :
Home application
warranty :
1 year
MOQ :
2 units
Packaging Details :
10 pcs in one carton
Description

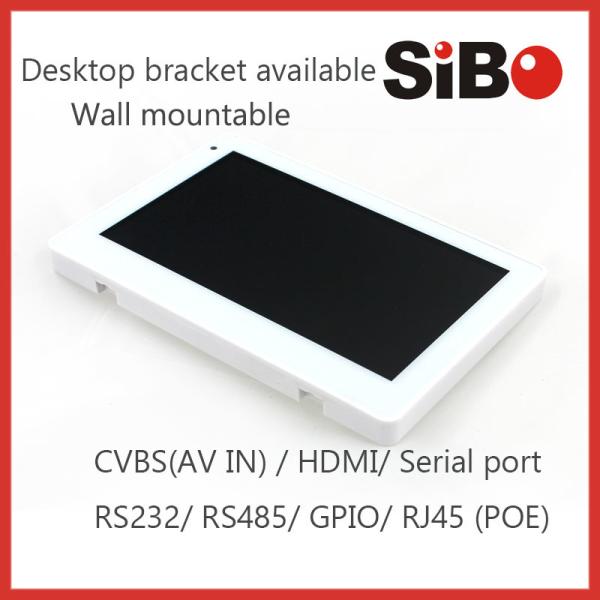

Q896 7" Android POE Touch Screen Monitor With CVBS IN

POE allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. With POE you can enjoy the net and power supply at the same time. CVBS is the abbreation of Composite Video Baseband Signal. With CVBS In you can use our tablet connect with CCTV camera. It can also be used as the surveillance camera.

Advantage:

  • Android OS rooted
  • Inwall flush/onwall surface/glass wall/desktop different mounting ways
  • CBVS , HDMI, USB 2.0(default by USB host),
  • GPIO/RS232/RS485 Serial port
  • No physical buttons design & No battery design
  • POE (IEEE 802.3 af 48V)
  • Optional to remove Android navigation bar(support full screen software application in kiosk mode)
  • Optional to provide USB jumper to connect PC for debugging

Product Description

Q896 7" Android POE Touch Screen Monitor With CVBS IN

Hardware Specs:

  • Screen:7 inch
  • Capacitive touch screen, glass + glass
  • 1024X600 resolution, 350 nits brightness
  • No any buttons

Power Supply:

  • DC IN : DC 9V-36V
  • POE(optional): IEEE 802.3 AF(48V)

Interfaces:

  • Ethernet Interface(RJ45)
  • HDMI Out
  • USB Socket
  • CVBS IN to Connect CCTV Camera
  • UART, IO, 3W AMP OUT Available: RS485, RS232

Network:

  • WLAN(WIFI802.1b/g/n)
  • Bluetooth
  • LAN Ethernet RJ45

Q896 7

poe in picture:

Q896 7

CVBS in picture:

Q896 7Q896 7Q896 7

Packaging & Shipping

Package:

  • Devices are packed by air column bag, 10 devices in one carton box
  • Carton Size:55*36*24cm
  • Gross Carton Weight: 7.5 kg

Shipping:

  • Sample lead time: 5-7 working days
  • Order>100 pcs: 20-25 working days
  • Sample shipped by express (DHL, TNT, UPS)

Q896 7

Our Services
  • Hardware and software support:
  • Modification on both hardware and software to meet your requirements
  • After sale service: Instant response to all your questions

ODM/OEM service is provided
