Specifications
Model Number :
F38
Place of Origin :
Guangdong, China
Brand Name :
ShunXiang
Certification :
CE/FCC/RoHS/MSDS/UN38.3
MOQ :
100
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
18-25 work days
Packaging Details :
Carton/Wooden crate
Power Source :
Solar Panel, AC Adaptor
Battery Type :
LiFePO4
Inverter Type :
Pure Sine Wave
Controller Type :
MPPT
Special Features :
USB*2, PV Input, Car Input
Product name :
Portable Solar Power Station
Function :
Power Support Camping
Application :
Emergency Power Backup
Weight :
14.5 kg
Size :
380*220*180 mm
OEM/ODM :
Accepatable
AC output :
220V50Hz/ 110V60HZ
Usage :
Outdoor Portable Mobile Emergency Power
Type :
USB Universal
System Voltage :
220V
Description
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
Product Name
Portable Energy Storage Power Supply
Model Number
F38
Battery Type
Lithium Iron Phosphate Battery
Capacity
960Wh 6S1P
DC Input
XT60 30-60V 450W
AC Inverter Output
110V/60Hz,1200W MAX 220V/50Hz, 1200W MAX (Optional)
USB Output
USB-1 5V3A 9V2A 12V1.5A (QC18W)
USB-2 5V3A 9V2A 12V1.5A ( QC18W)
DC Output 5521
12V 5A
Dimensions
380*220*180mm
Weight
14.5 KG
Operating Temperature
Charging 0~45°C Discharging -20~60°C
Operating Humidity
65±20%
Storage Temperature
25±5%°C
Executive standard: GB 31241-2014 GB/T18287-2000
Product panel description 1, power switch
2, USB output
3, display
4, XT60 charging port (MPPT) 5, DC DC output
6, AC inverter output Product instruction 1. Charging input Charging: Charge the product with the original adapter or power cord, and charge the machine via XT60 MPPT lift. 2. Output 2.1.1 USB1 : 5V3A 9V2A 12V1.5A (QC18W) USB2 : 5V3A 9V2A 12V1.5A (QC18W) 2.1.2 DC direct output 5521 terminal : 125V5A 2.1.3 Turn on the AC power switch, the digital display is on AC Block output AC voltage 220V1200W. 3.1 Plug in the USB automatically wake up for discharging. 4.1 Turn off the power output immediately and unplug it when the operation is abnormal. 5.1 After use, unplug and turn off the power. 6.1 When the battery power is too low, the product will enter low voltage protection and stop voltage output. 7.1 When using the AC output port, be careful that the power of the device load does not exceed the product's rated power of 1200W. 8.1 But when the battery enters into low voltage, please charge it in time.

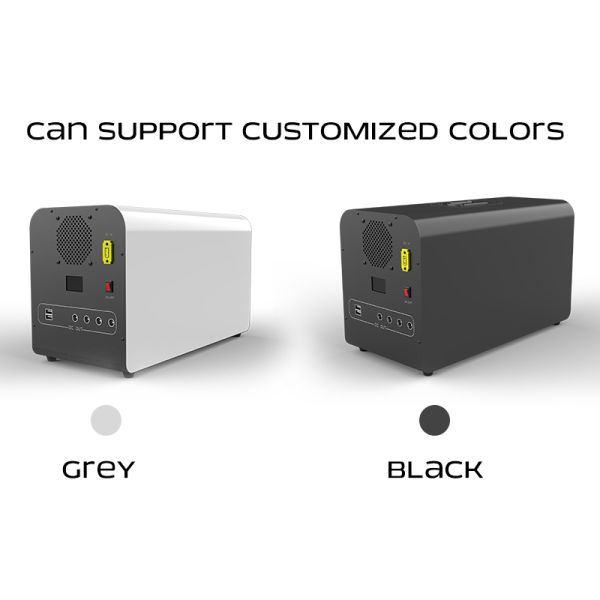

1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
1200W 960Wh LiFePO4 Portable Power Station MPPT Controller Energy Storage Power Supply
Precautions 1. Before using this product, be sure to read the product manual in detail and follow the instructions for proper operation. 2. Please dismantle the device in a hurry, this product is not installed with any self-removable/maintainable spare parts. 3. It is strictly prohibited to keep the product in contact with objects above 55℃ or heat sources, and it is strictly prohibited to put the product into fire, water, or to heat the battery pack! It is strictly prohibited to charge in the environment below 0℃! 4. please hurry to vigorously vibrate, knocking, impact on the product, such as the product accidentally suffered a strong collision, strong extrusion or more than 1 meter fall, shell deformation, bulging and other circumstances, please stop using the product! 5. Please hurry to place in the sun, away from corrosive substances in the environment, is strictly prohibited the use of other chemical solutions to clean the product! 6. If the product emits a strange odor, heat, deformation, discoloration or any other abnormal phenomenon shall not be used; if the product is in use or charging, it should be immediately removed from the device or charger and stop using it! If the electrolyte enters your eyes after leakage, do not rub it, flush it with water immediately and seek medical assistance immediately. 7. Prohibit the use of wires or other metal objects to short-circuit the output of the product! 8. Choose the original power adapter, choose the original charging cable for digital products. 9. Please according to national environmental regulations to deal with end-of-life products. 10. Long-term non-use, 3 months to replenish the power once. 11. AC socket output port output is high voltage, pay attention to electricity safety. 12. When the high-power discharge, to prevent high-temperature charging danger, please unplug the adapter power connector and wait for the machine to be set aside to cool before charging.
