Specifications
Model Number :
BS-314
Place of Origin :
Guangdong, China
MOQ :
100
Certification :
CE;ROSH;FCC;UN38.3
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
15-18work days
Packaging Details :
Carton/Wooden crate
Battery Size :
314 Ah
Battery Type :
Solid state
Cycle Life :
6000 cycles
Cathode Materials :
LiFePO4
Application :
Solar Energy Storage Systems, Electric Power Systems, Home Appliances
Weight :
5420 g±300 g
Operating Temperature(℃) :
0~60℃
Min. Energy :
896Wh
Initial IR :
≤0.25 mΩ
Discharging Cut-off Voltage :
2.5V T >0℃ / 2.0V T ≤0℃
Standard Charging Current :
140A
Standard Discharging Current :
140A
45℃ Standard Cycle :
2500 Cycles
Discharging Temperature :
-30~60℃
Storage Temperature :
1 year (-30~60℃)
Max Pressure Force on Terminals :
700 N
Max Temperature on Terminals :
130℃
Description
314Ah LFP Cell Rechargeable Lithium Ion Battery With 6000 Cycles For Solar Energy Storage

Fundamental Parameters


Items

Standards
Remarks
Min. Capacity

314 Ah
0.5C 25±2℃ 2.5-3.65V
Min. Energy

896Wh
0.5C 25±2℃ 2.5-3.65V
Initial IR

≤0.25 mΩ
AC 1kHz 40%SOC
Nominal Voltage

3.2 V
0.5C 2.5~3.65V
Weight

5420 g±300 g

Charging Cut-off Voltage
Umax

3.65 V

Discharging Cut-off Voltage
Umin

2.5V T >0℃
2.0V T ≤0℃

Standard Charging Current

140A
0.5C
Standard Discharging Current

140A
0.5C
25℃ Standard Cycle
25℃

6000 Cycles
Applying 300kgf±20kgf pre-pressure 0.5C
2.5~3.65V Capacity retention rate≥80%

45℃ Standard Cycle 45℃


2500 Cycles

Operation Temperature
Charging Temperature

0~60℃


Discharging Temperature

-30~60℃


Storage Temperature
1 year 1
0~35℃

Delivery SOC State SOC

3 months 3
0~35℃


1 month 1
-20~45℃






Welding Parameter of Al Busbar
Laser Welding Depth

≤2.5 mm


Max Pressure Force on Terminals

700 N
Max force in longitudinal direction, no deformation

Max Torque Force on Terminals

6 N m
Max torsion, non-loosen

Max Temperature on Terminals

130℃
The maximum temperature the terminals can withstand, at which the plastic pads will not deform

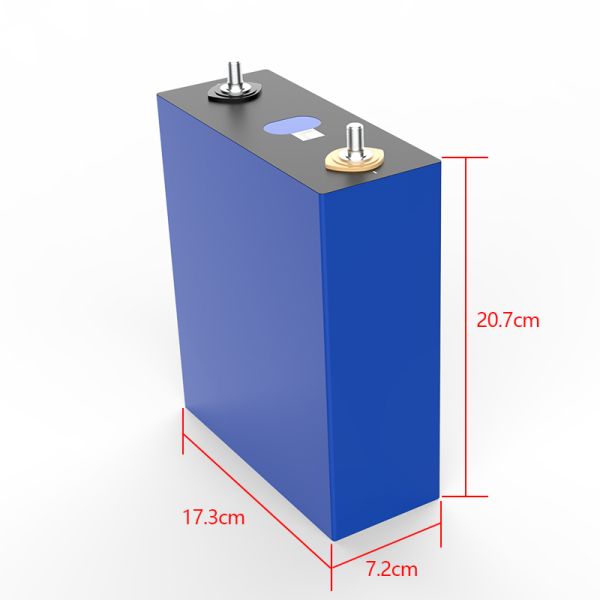

Dimension and Weight


No.
Items

Standards
Testing Methods




1



Dimension
Terminal Height
H ( )
207.2±0.5 mm




3.8.1


Can-top Height
h ( )
204.6±0.5 mm



Length
L
173.7±0.5 mm



Thickness
T
72.0±1.0 mm


2
Weight
Weight (Including blue film, can-top film)
( )

5420 g±300 g

3.8.2

Safety Performance parameters


No.
Items
Standards
Testing Methods
1
Over Charge
No fire, No explosion
3.8.4.1
2
Over Discharge
No fire, No explosion
3.8.4.2
3
External Short-circuit
No fire, No explosion
3.8.4.3
4
Extrusion Test
No fire, No explosion
3.8.4.4
5
Drop Test
No fire, No explosion
3.8.4.5
6
Low Pressure
No fire, No explosion, No leakage
3.8.4.6
7
Heating
No fire, No explosion
3.8.4.7
8
Thermal Runaway
No fire, No explosion
3.8.4.8
