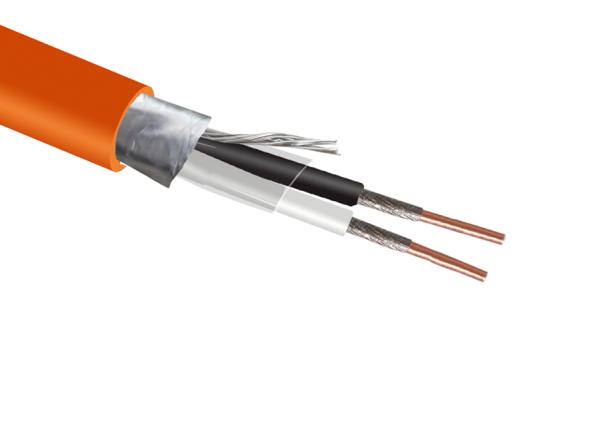

EMI-Proof Instrument Cables | Shenghua BS5308 for Industry 4.0
EMI-Proof Instrument Cables | Shenghua BS5308 for Industry 4.0
EMI-Proof Instrument Cables | Shenghua BS5308 for Industry 4.0
EMI-Proof Instrument Cables | Shenghua BS5308 for Industry 4.0
Specifications
Description

​​In automotive robotics lines, 78% of positioning errors trace to electromagnetic interference (EMI) from 400V servo motors​​. Shenghua’s ​​BS5308 XLPE-OS-LSOH cables​​ eliminate signal distortion with military-grade shielding, enabling ​​micron-level accuracy​​ in Industry 4.0 systems.

​​The EMI Blind Spot in Smart Manufacturing​​

  • ​​Voltage Spikes​​: Unshielded cables induce up to ​​50mV noise​​ in 0-10V analog signals—enough to crash CNC machines
  • ​​Data Packet Loss​​: 2.4GHz Wi-Fi interference corrupts Profinet communications at 1Gbps speeds

​​Shenghua’s Signal Integrity Engineering​​

​​1. Dual-Layer Shielding​​:

  • ​​Individual Pair Screen​​: Al-polyester tape per pair blocks cross-talk between voice/data channels.
  • ​​Collective Screen​​: Overall foil + drain wire reduces EMI by ​​40dB at 1GHz​​ (IEC 61196-2 compliant)

    ​​2. Low-Capacitance XLPE​​:
    ​​1kHz capacitance imbalance ≤250pF/250m​​—prevents signal attenuation in 500m cable runs

    ​​3. Precision Twisting​​:
    Pair lay length <100mm minimizes inductive coupling

​​Toyota’s Smart Factory Upgrade​​

After deploying Shenghua cables:

  • ​​Robot welding accuracy improved to ±0.02mm​​.
  • ​​EtherNet/IP latency dropped from 12ms to 0.5ms​​
