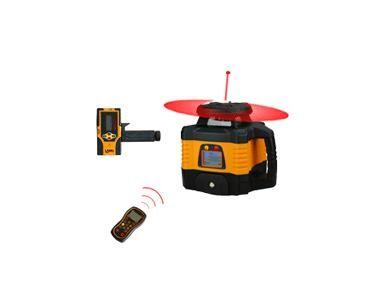

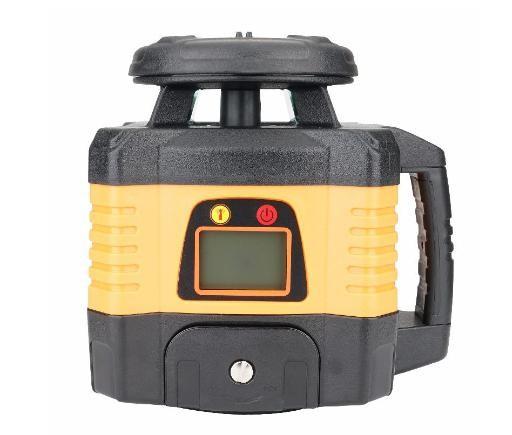

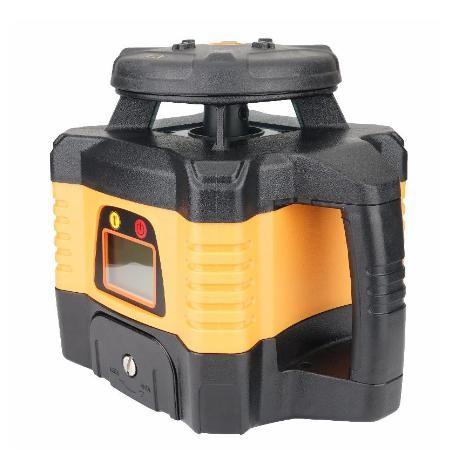

LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
LS533-H Dual Axis Grade Two-way Rotary Laser（H）
Specifications
Brand Name :
LAISAI
Model Number :
LS533
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per year
Delivery Time :
3-5work days
Packaging Details :
With Standard Packing Way .
Laser Rotating :
360° rotary laser, electronic leveling, laser stop rotating and sound indication when out of range
Slope Sceanning :
Slope scanning function could set the grade value for the axis accurately.
Proof :
Water-proof and dust-proof
Description

LS533-H Dual Axis Grade Two-way Rotary Laser(H)

LS533-H Dual Axis Grade Two-way Rotary Laser（H）

FEATURES

· 360° rotary laser, electronic leveling, laser stop rotating and sound indication when out of range

· Slope scanning function could set the grade value for the axis accurately.

· TILT mode has the unleveled alarm function, the laser stop rotating once hit to insure the construction accuracy

· VWS function could set the instrument to be low sensitive, to insure the reliable wild working performance

· LCD with background illumination

· Accuracy self-calibration function

· Sleep function

· Able to connect with tripod through 5/8” screw thread

· Various accessories of elaborate design can bring usage expansion

· Water-proof and dust-proof

TECHNICAL DATA

Diode

Red

Laser wavelength

635nm

Leveling method

Automatic leveling

Working range

600m

Accuracy

±0.05mm/m

Area shielding function

N

Dual axis slope scaning function

Yes with LCD

Area scaning and angle adjustable function

N

Unbalanced warning

Y

VWS function

Y

Area shielding function

N

Sleep function

Y

Long distance tracking function

N

Up plumb dot

N

Forced rotation mode

N

Two-way wireless communication function

Y

Output Lines

H

Self-leveling range

±6°

IP class

IP65

Weight

2.1Kg

Size

212×168×212mm

Power supply

3*C battery or Li battery box
