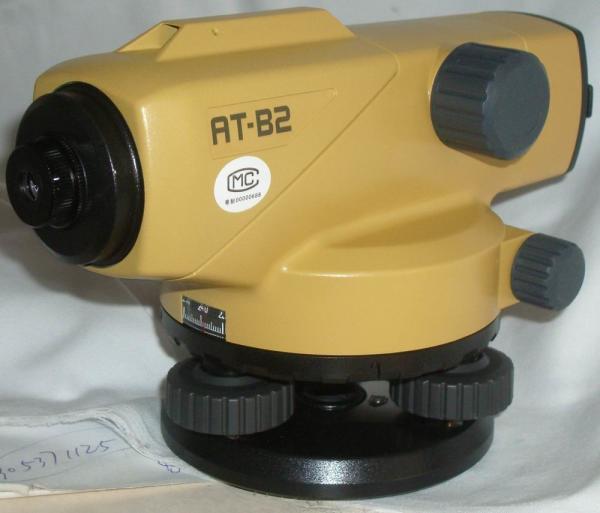

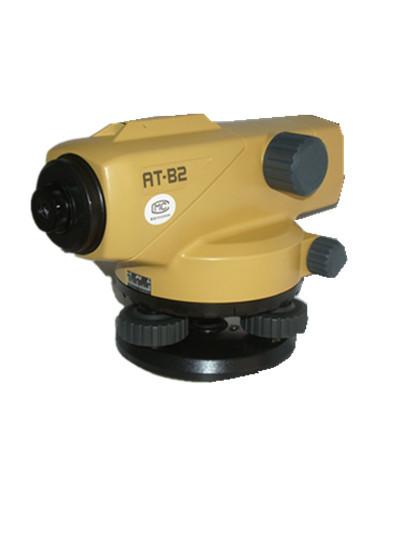

Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Topcon Auto Level AT-B2 New Brand
Specifications
Brand Name :
Topcon
Model Number :
AT-B2
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD400-USD450
Payment Terms :
T/T, Western Union
Supply Ability :
10000 per pc
Packaging Details :
1 pc auto level in one color box and 4 pc auto level in one carton
Magnifications :
32X
Compensation :
Rapid, Accurate, and Stable Automatic Compensation
Focus :
Ultra-Short 20cm (7.9 in.) Focusing
Dependability :
All-Weather Dependability
Adjust :
Clampless, Endless Fine Horizontal Adjustments
Description

Topon Auto Level AT-B2 New Brand

Topcon Auto Level AT-B2 New Brand

Topcon Auto Level AT-B2 New Brand

Topcon Auto Level AT-B2 New Brand

AT-Bseries SPECIFICATIONS

AT-Bseries SPECIFICATIONS AT-B2 AT-B3A AT-B4A
Telescope
Length 215mm (8.46 in.)
Magnification 32X 28X 24X
Objective Aperture 42mm (1.65 in.) 36mm (1.42 in.) 32mm (1.26 in.)
Resolving Power 3″ 3.5″ 4″
Field of View
(at 100m/328ft.)		 1°20′
(2.3m / 7.5ft.)		 1°25′
(2.5m / 8.2ft.)
Minimum Focus 0.2m (7.9 in.) from end of telescope
0.3m (1ft.) from instrument center
Image Erect
Stadia Constant 0
Stadia Ratio 100
Accuracy (1km double run leveling)
Without Micrometer 0.7mm (0.03 in.) 1.5mm (0.06 in.) 2.0mm (0.08 in.)
With Micrometer 0.5mm (0.02 in.) n/a
Compensator
Type Pendulum compensator with magnetic damping system
Setting Accuracy 0.3″ 0.5″
Working Range ±15′
Circular level
Sensitivity 10′ / 2mm
Horizontal circle
Diameter 103mm (4.1 in.)
Minimum Division 1°/ 1gon
General
Water Resistance IPX6 (IEC 60529:2001)
Operating Temperature -20℃ to +50℃ (-4°F to +122°F)
Size Width 130mm (5.12 in.)
Length 215mm (8.46 in.)
Height 140mm (5.51 in.) 135mm (5.31 in.)
Weight 1.85kg (4.1 lbs.) 1.7kg (3.7 lbs.)
