ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
ComNav T30 GNSS GPS RECEIVER
Specifications
Brand Name :
ComNav
Model Number :
T30
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 per year
Packaging Details :
With Standard Packing Way
Signal tracking Channels: :
574 channels
Satellite tracking: :
GPS, BeiDou, GLONASS, Galileo, L-Band
RTK Horizontal accuracy: :
8 mm + 1 ppm
RTK Vertical accuracy: :
15 mm + 1 ppm
Tilt sensor :
The T30 supports up to 30° tilt compensation that allows you collect high accuracy data faster in the field.
Description

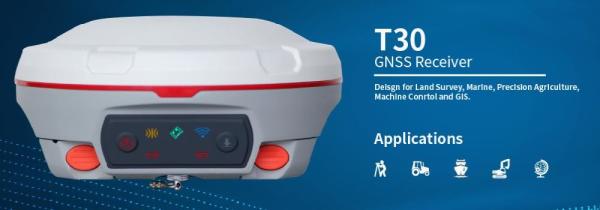

T30 GNSS RECEIVER

Featuring full-constellation tracking capability, tilt compensation, 4G/WiFi/Bluetooth® connection, and easy survey workflow with Android-based Survey Master Software, the T30 GNSS receiver is one of the most reliable choices for your demanding surveying tasks.

ComNav T30 GNSS GPS RECEIVER

Features

GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b, SBAS, QZSS, IRNSS

BeiDou Global Signal B1C, B2a

WIFI/UHF/4G Module

Tilt Compensation

Two 3400 mAh hot swap Batteries

Low Power Consumption

Support PPP and L-Band

Support Long Baseline E-RTK

ComNav T30 GNSS GPS RECEIVER

Full-constellation tracking

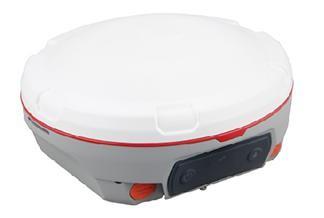

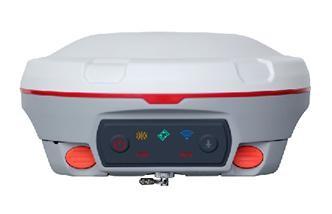

SinoGNSS T30 is an extremely compact designed receiver, tracking all currently and planned Global GNSS constellations, as well as L-Band capability.

Tilt sensor

 The T30 supports up to 30° tilt compensation that allows you collect high accuracy data faster in the field.

Intuitive workflow

 The T30 is able to provide easier survey workflow via Survey Master Wizard function, improving productivity for both beginners and professional surveyors.

Performance
Signal tracking Channels: 574 channels
Satellite tracking: GPS, BeiDou, GLONASS, Galileo, L-Band
RTK Horizontal accuracy: 8 mm + 1 ppm
RTK Vertical accuracy: 15 mm + 1 ppm
Post Processing Horizontal accuracy: 2.5 mm + 1 ppm
Post Processing Vertical accuracy: 5 mm + 1 ppm
Initialization time: less than 10 s
Physical
Size(W × H): Φ15.8 cm × 7.5 cm
Weight (incl. supplied two batteries): 1.2 kg
Operating temperature: -40 °C to + 65 °C (40 °F to 149 °F)
Shock: Designed to survive a 2 m drop onto concrete
Humidity: 100% non-condensing
Waterproof and dustproof: IP67
Power consumption (3 constellations): 2.4 W
Memory: 8 GB
Communications
1 Serial port (7 pin Lemo): Baud rates up to 921,600 bps
Correction data I/O: RTCM 2.X, 3.X, CMR (GPS only), CMR+ (GPS only)
Position data output rates:
Modem: WIFI, 4G
UHF modem (optional): Tx/Rx, 410-470 MHz
Bluetooth® : V4.0 protocol
