Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner
Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner
Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner
Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner
Specifications
Brand Name :
Puhua
Model Number :
Q38
Certification :
iso ce
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30 days
Packaging Details :
Stretch film
Machine :
Overhead chain shot blasting machine
Warranty :
One Year
Hook amount :
Customized
Wear parts material :
Cr20S high chrome, ZGMn13, etc
Condition :
New
Machine Type :
Abrator
Description

Q38 High Efficiency Overhead Chain Continuous Shot Blasting Machine

Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner

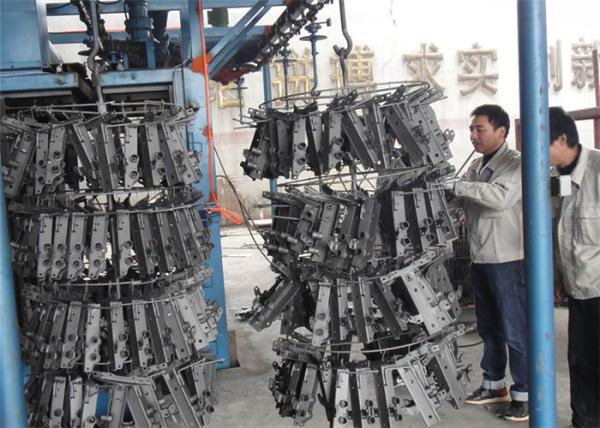

Q38 shot blasting machine is used for surface cleaning and strengthening of steel structural part, castings, aluminum alloy parts and other spare parts. The machine is consists of shot blasting chamber, elevator, separator, screw conveyor, shot blasting wheel, abrasive control system, hook system, autorotation device, foundation, dust removal system and electrical control system, etc.

Ferrous and non-ferrous castings
Heat treated forgings
Many kinds of castings
Die castings and much more
Lower value parts where part on part impingement is not an issue
When production requires dictate batch processing
Small to medium size castings, fabrications and heat-treated parts


It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing
It is an ideal choice for auto, tractor, diesel engine, motor and valve industry.

Technical specification:

No Item Model Pendant chain step-type blasting machine Pendant chain continuous blast machine
Q483 Q485 Q4810 Q583 Q5810
1 Max weight of piece kg 300 500 800 300 1000
2 Size of workpiece mm 1000*1400 1200*1700 700*2400 1000*1500 750*2400
3 Abrasive flow rate kg/m 2*250 3*250 6*360 4*250 6*360
4 Productivity Hook/h 10 10 10 30-60 50
5 Speed of chain m/min 2.44 7.34 2.44 Converter speed
6 Lifting distance of pendant chain mm 2560 2560 2560 1000
7 Ventilation capacity M3/h 6000 10000 25000 18000 25000
8 Power(not include dust collector) kw 38.75 58.43 85 127.25 160
9 Outline dimension mm 8450*5350
*5003		 12235*5410
*9411		 4500*5350
*5003		 18000*5960
*6440		 17700*9615
*10000
