Tumble Rubber Belt Shot Blasting Machine For Metal Fitting Surface Cleaning
Tumble Rubber Belt Shot Blasting Machine For Metal Fitting Surface Cleaning
Specifications
Brand Name :
Qingdao Puhua
Model Number :
Q32
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
7-20 days
Packaging Details :
Stretch film
Machine :
Tumble belt shot blasting machine
Type :
Tumble belt
Loading :
Container
Industrial Experience :
Over 20 years
Usage :
surface cleaning
belt :
rubber belt
Condition :
new
workpiece :
casting parts
Description

Q32 tumble belt shot blasting machine manufacturer in China

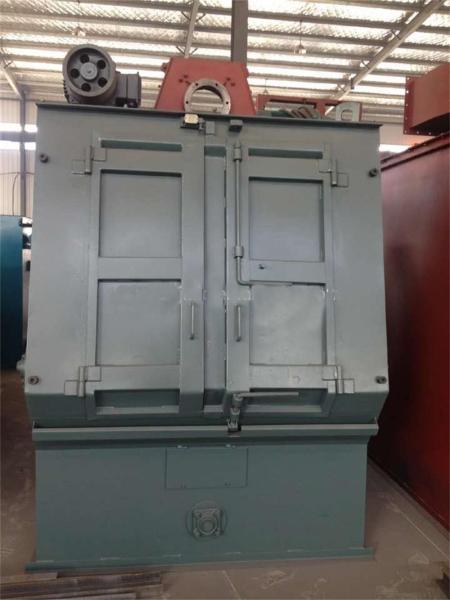

Tumble Rubber Belt Shot Blasting Machine for Metal Fittings using the unique roller shake structure, in the shot blasting projecting, the drum can not only rotate ,but also up and down shake, so the tube inside the workpiece without an omission to be stirred, steel balls are uniform projection, to achieve uniform treatment effect.

Q32 series tumble steel/rubber tracked type shot blasting machine for iron casting
Parameter
Q326
Q3210
QR3210
Productivity(T/H)
600-1200
2500-3500
3000-5000
Loading Weight(kg)
200
600
600
Maximum Weight
of One Piece(kg)
15
30
30
Diameter of the Roller(mm)
650
1000
1000
Available Capacity(m³)
0.33
1.05
1.05
Pill Impelling Volume(kg/min)
200
250
250
Power Air Volume(m³/h)
2500
3500
4000
Power Dissipation(kw)
13.47
25.05
31.65
Outline Dimensions(mm)
3200*1520*3715
4290*1900*4500
5850*1959*4600
Machine Total Weight(kg)
2840
5843
7400

Tumble Rubber Belt Shot Blasting Machine For Metal Fitting Surface CleaningTumble Rubber Belt Shot Blasting Machine For Metal Fitting Surface CleaningTumble Rubber Belt Shot Blasting Machine For Metal Fitting Surface Cleaning
