Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Fully Automatic Spinner Hanger Shot Blasting Machine with Integrated Dust Collector and Customized Hooks for Heavy-Duty Workpieces
Specifications
Color :
Customized
Place of Origin :
CHINA
Total Power :
55.2W
MOQ :
1
Conveyor type :
Overhead monorail
Model Number :
Q4810
Brand Name :
CHONGJEN
Payment Terms :
T/T
Price :
8000-100000USD/set
Port :
Qingdao
Loadingmethod :
Hanger type
Type :
Hook Type Abrator
Machine Size :
Customized
Certification :
CE
Packaging Details :
Export package
Supply Ability :
36sets/year
Automation :
Fully automatic
Specification :
international standard or customized
Turbine Motor Power :
11-35 kw
Delivery Time :
50-60days
Transport Package :
Foam, Pallet and Plastic Film
Powersupply :
380V, 50Hz (customizable)
Description

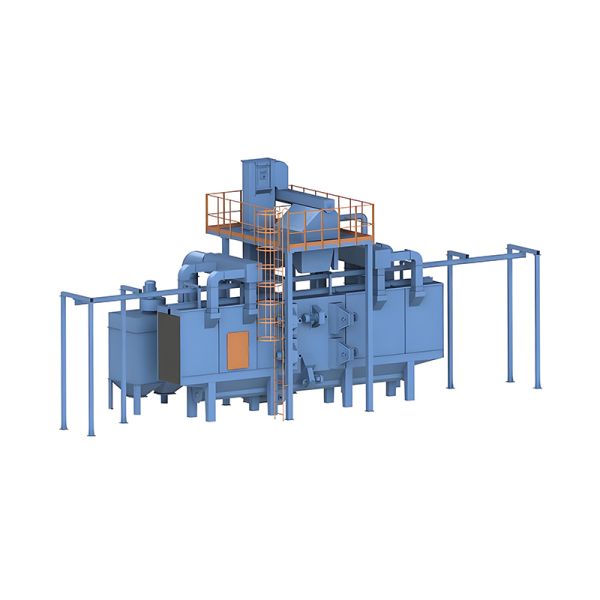

Closed loop monorail type overhead conveyor shot blasting machine with hooks for continuous blasting process
Capabilities and applications
The hook-type overhead conveyor shot blasting machine is engineered for medium and large workpieces. These parts are often delicate or sensitive, so they cannot be processed by bulk tumbling methods.

This equipment is well-suited for heavy-duty and intricately shaped workpieces, including castings, weldments, forgings, stampings, hot/cold formed components, steel cylinders and springs. The load capacity of a single hook ranges from 30kg to 300kg. The number of hooks and conveyor speed can be customized according to your production demands.

Workpieces are either fixed on fixtures or hung directly on the rotating hooks of the traveling mechanism. Inside the blasting chamber, the workpieces rotate and travel continuously to achieve thorough and efficient surface cleaning.

If you need to link the blasting process with subsequent coating and drying procedures, a continuous monorail spinner hanger shot blasting machine is the ideal choice.

The monorail system transports large and heavy workpieces into and out of the blasting cabinet. Operators load workpieces onto hooks or hanging tools outside the chamber before conveying them inside for blasting. Once the process is completed, the hooks exit the cabinet for unloading. Thanks to the monorail design, multiple hooks can perform loading and unloading simultaneously while others are in operation, enabling non-stop blasting and delivering high production efficiency.
Technical Specification
No Item step moving type shot blasting machine Continuous moving shot blast machine
Q483 Q485 Q4810 Q583 Q5810
1 Max weight of piece kg 300 500 800 300 1000
2 Size of workpiece mm 1000*1400 1200*1700 700*2400 1000*1500 750*2400
3 Abrasive flow rate kg/m 2*250 3*250 6*360 4*250 6*360
4 Productivity Hook/h 10 10 10 30-60 50
5 Speed of chain m/min 2.44 7.34 2.44 Converter speed
6 Lifting distance of pendant chain mm 2560 2560 2560 1000
7 Ventilation capacity M3/h 6000 10000 25000 18000 25000
8 Power(not include dust collector) kw 38.75 58.43 85 127.25 160

If a standard model does not meet your surface preparation requirement, we will develop a tailor-made blast machine design for you.

Advantages
  1. The overhead conveyor shot blasting machine is compact design and it can be designed with pit or without pit.
  2. Fully tailor made blasting machine according to workpiece shape and productivity requirement.
  3. Monorail hanger type blasting is the best blast cleaning method for many workpieces bulk processing that can't be tumbled.
  4. Touch screen operator interface and integrated PLC optional;
  5. The blasting chamber is protected by wear-resistant manganese steel liner.
  6. The top section of the blasting chamber is equipped with zigzag nylon brushes and polyurethane sealing components, which stop abrasives and dust from dispersing outside.
  7. The combined rotation and oscillation of workpiece hooks in the blasting flow creates comprehensive impact angles, ensuring thorough treatment of all workpiece surfaces.
