Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Customized 90 Degree Bent Stainless Steel Small Tube
Specifications
Model Number :
OEM
MOQ :
Based on customer requirements
Delivery Time :
30-45 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
NA
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Place of Origin :
CN
Price :
NA
Supply Ability :
100000pcs/ month
Certification :
ISO13485
Description

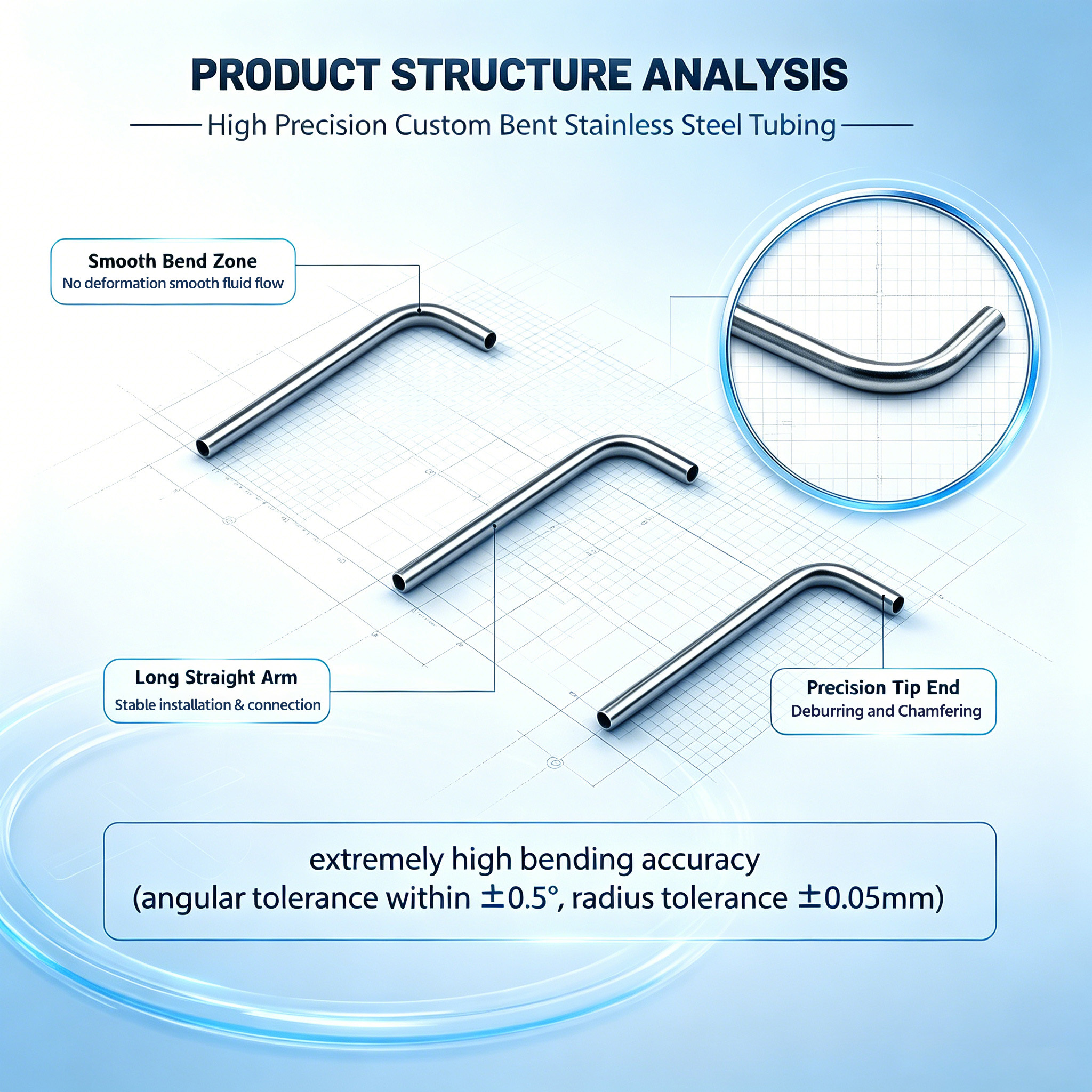

Customized 90 Degree Bent Stainless Steel Small Tube

Products Name Customized 90 Degree Bent Stainless Steel Small Tube
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
Meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 5-25days or according to quantity

Customized 90 Degree Bent Stainless Steel Small Tube


Product Advantages:

  • Strict manufacturing tolerance up to ±0.02mm, stable dimensional consistency for assembly matching.
  • Smooth bending forming process, no collapse or crease inside tube, guarantee unobstructed fluid passage.
  • Electropolished surface treatment, burr‑free cutting ends, avoid particle contamination for fluid transmission.
  • Multiple stainless steel material options, good corrosion resistance for medical, food and industrial equipment.
  • Support custom bending angle, tube diameter, wall thickness and length, realize OEM & ODM personalized processing.
FAQ:

Q: What material grades can you supply for this 90‑degree small bent tube?
A: We mainly produce 304 and 316 stainless steel tubes. Other special metal materials can be processed according to your drawings and requirements.

Q: Can you customize bending angle, tube diameter and wall thickness of the bent tube?
A: Yes, bending angle, outer diameter, wall thickness, total length and end face processing can all be customized based on customer drawings or physical samples.

Q: What is your standard dimensional tolerance for bent tube products?
A: Our standard production tolerance is ±0.02mm. Higher precision requirements can be achieved after drawing technical confirmation.

Q: Will there be tube collapse or crease after bending processing?
A: We adopt professional precision bending technology. Under reasonable specification range, inner tube keeps smooth without obvious collapse or folding defects.

Q: Do you provide finished sterilization service for this bent tube component?
A: The products are precision metal semi‑finished parts. We do not provide sterilization service. Customers need to complete sterilization treatment before final application.
