Specifications
Model Number :
OEM
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Price :
1-20USD
Supply Ability :
100000pcs/ month
Brand Name :
SHOMEA
MOQ :
10pcs
Delivery Time :
5-20days Or According To Quantity
Certification :
ISO13485
Place of Origin :
CN
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Description

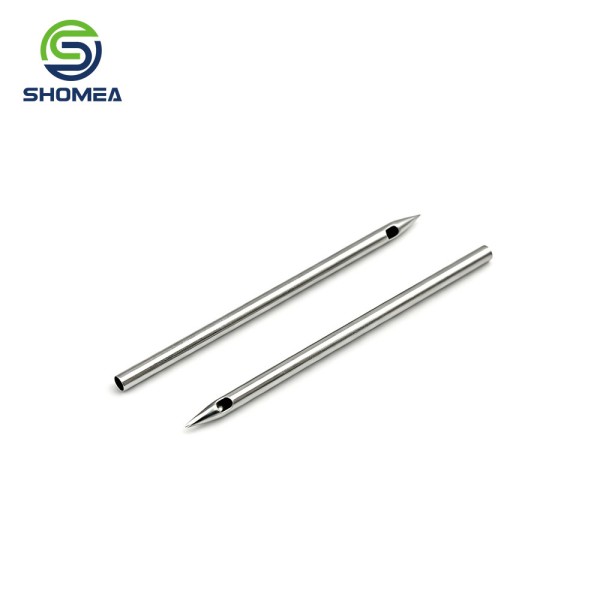

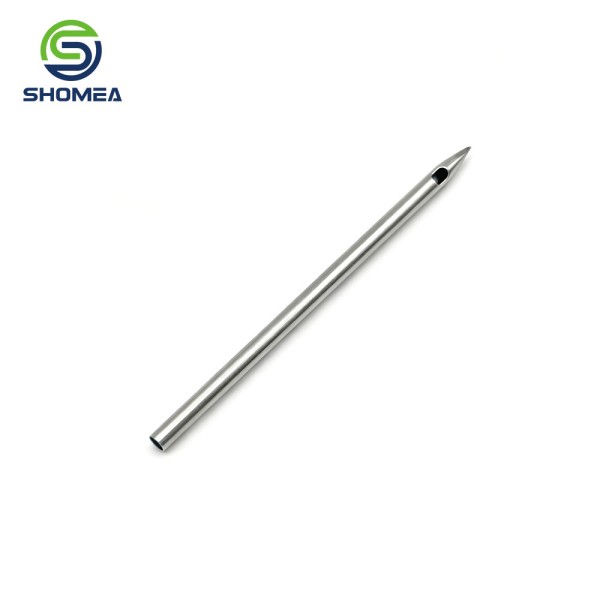

Customized Stainless Steel Pencil Point Needle With Side Hole

Product Name Customized Stainless Steel Pencil Point Needle With Side Hole
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
Meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time usually 5-25days or according to quantity






Product Advantages:


Medical-grade stainless steel tubing, excellent biocompatibility, stable chemical resistance.
Precision pencil sharp tip, gentle penetration and minimal tissue trauma.
Independent side fluid hole, avoids orifice blockage during sampling and injection.
Deburred seamless tube, ensures smooth liquid flow without residual buildup.

FAQ:

What are the advantages of side hole pencil point needle compared with conventional bevel needles?
The side outlet separates the fluid channel from the tip penetration point, effectively preventing tissue blockage inside the hole during puncture, which greatly improves the stability of liquid injection and sampling.

Can you adjust the position and size of the side hole according to my requirements?
Yes, we support full customization. We can control the hole diameter, hole distance from the tip, and hole quantity strictly according to your technical drawings and application requirements.

Which stainless steel grades can be used for this side hole pencil tip needle?
We can process SUS304 and SUS316L stainless steel tubes. SUS316L provides better corrosion resistance and is more suitable for long-term contact with body fluid or chemical reagents.

Is the interior and exterior of the needle completely burr-free after drilling and tip grinding?
We adopt internal and external deburring process after machining. All edges are polished smoothly to avoid scratching tissue and prevent impurity accumulation inside the tube.

Can you provide small batch samples to verify the needle performance before mass production?
Sample service is available. We can produce samples according to your specifications, so you can test penetration, flow rate and sealing performance before formal bulk order.
