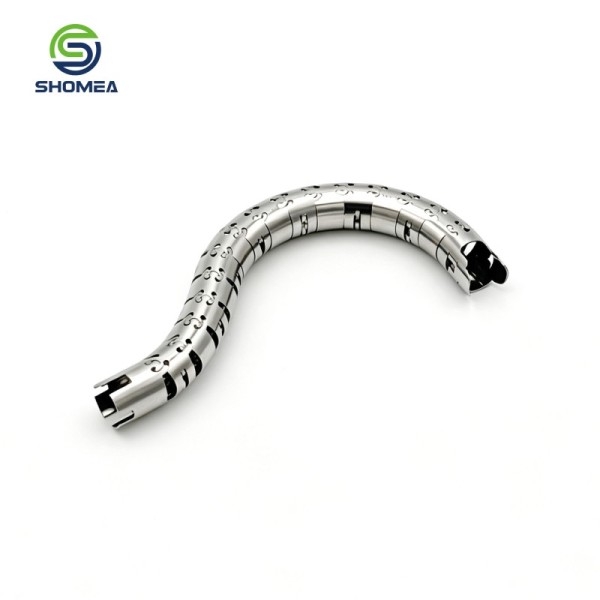

Stainless Steel Laser Cut Articulating Snake Bone Tube

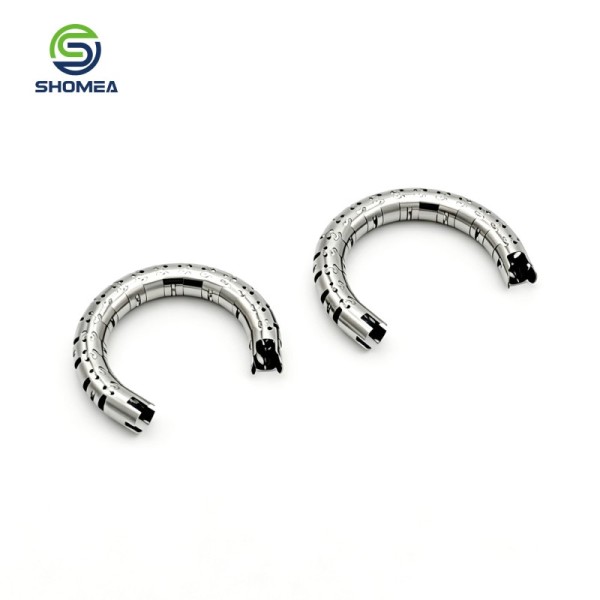

Stainless Steel Laser Cut Articulating Snake Bone Tube

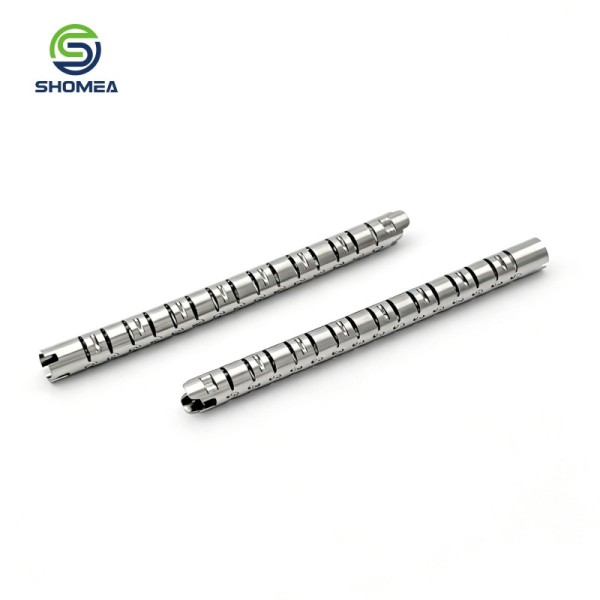

Stainless Steel Laser Cut Articulating Snake Bone Tube

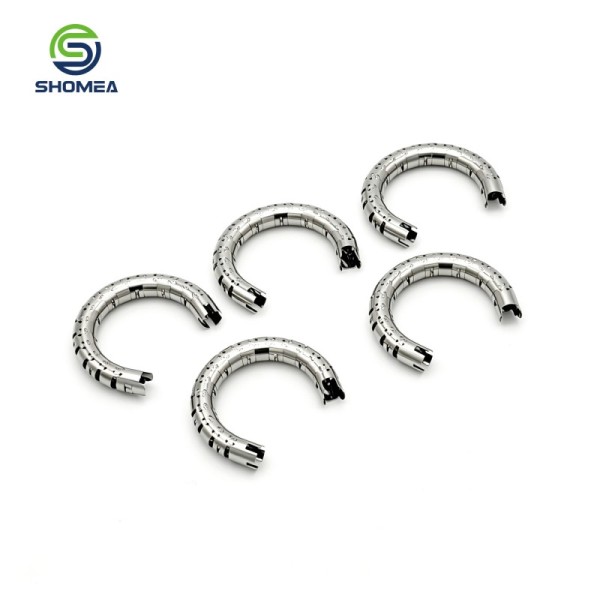

Stainless Steel Laser Cut Articulating Snake Bone Tube

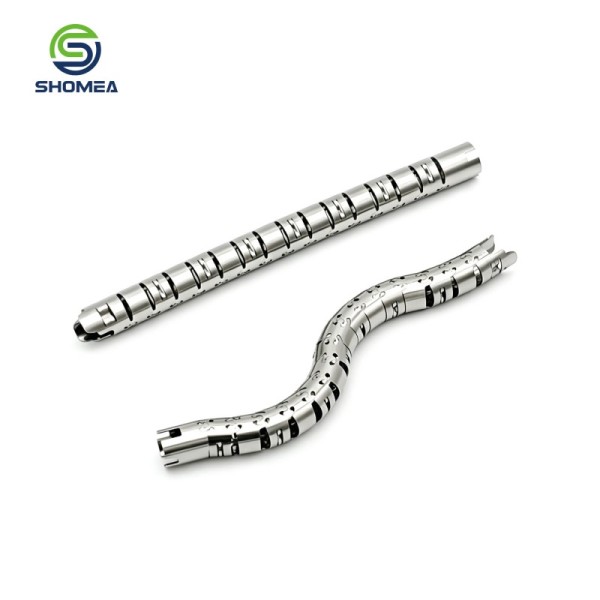

Stainless Steel Laser Cut Articulating Snake Bone Tube

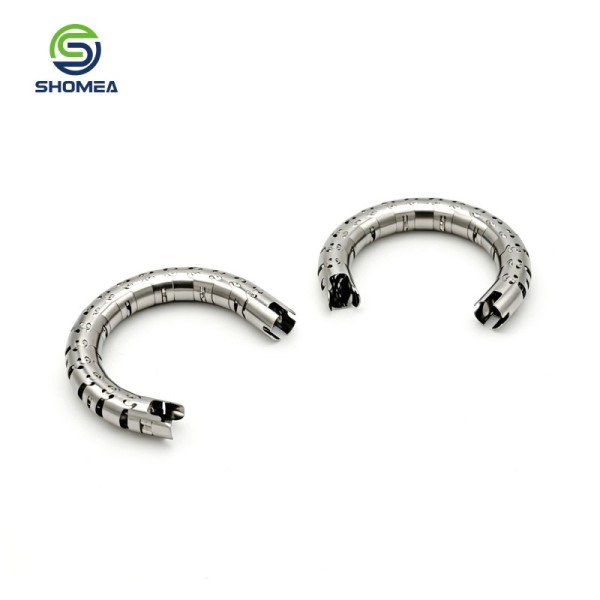

Stainless Steel Laser Cut Articulating Snake Bone Tube

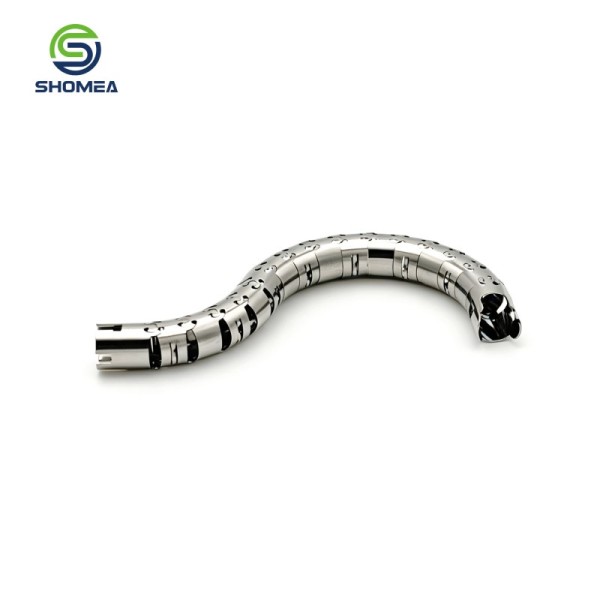

Stainless Steel Laser Cut Articulating Snake Bone Tube

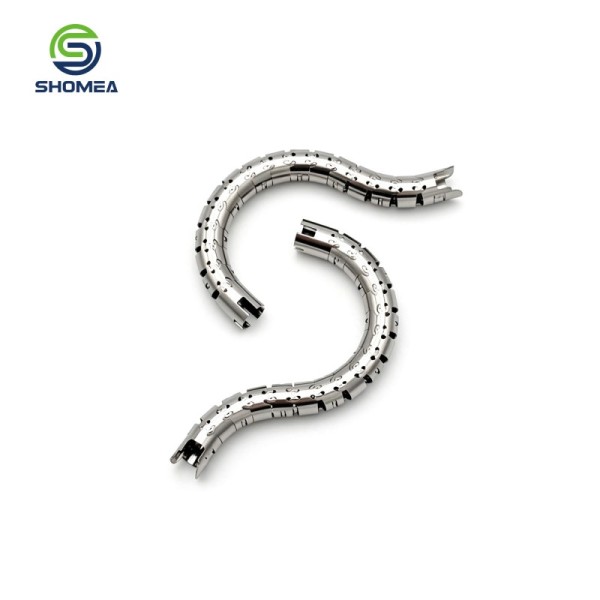

Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Stainless Steel Laser Cut Articulating Snake Bone Tube
Specifications
MOQ :
10pcs
Delivery Time :
5-20days Or According To Quantity
Wall Thickness :
0.05 mm – 0.5 mm
Certification :
ISO13485
Model Number :
OEM
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Length :
Customized
OEM Service :
Available
Price :
1-20USD
Outer Diameter :
0.3 mm – 5.0 mm
Supply Ability :
100000pcs/ month
Material :
SUS304/SUS316 Stainless Steel
Brand Name :
SHOMEA
Place of Origin :
CN
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Description
Products Name Medical Laser Cut Flexible Hypotube for Catheter
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Electropolishing, Smooth Deburred Surface
Tube Outer Diameter 0.3 mm – 5.0 mm
Tube wall Thickness 00.3 mm – 5.0 mm
Bending Performance Multi-direction flexible bending, 360° bendable
Tolerance ±0.05mm High Precision Tolerance or According to Drawing
Size Custom length & segment structure available
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time usually 5-25days or according to quantity

Specification:

  • High Precision:Advanced laser cutting ensures consistent accuracy and repeatability.
  • Excellent Flexibility:Optimized cut patterns provide smooth bending and navigation.
  • Superior Torque Control:Delivers precise torque transmission and device handling.
  • Kink Resistance:Maintains structural integrity during bending and operation.
  • Custom Manufacturing:Available in customized dimensions, patterns, and materials.
  • Medical-Grade Quality:Made from premium materials with strict quality control.

FAQ:

Q1: What materials are available for the snake bone tube?
A: We offer SUS304 and SUS316L stainless steel, with other materials available upon request for specific applications.

Q2: Can the dimensions and articulation angle be customized?
A: Yes. Outer diameter, inner diameter, length, articulation angle, segment geometry, and laser-cut patterns can all be customized according to your drawings.

Q3: What are the advantages of a snake bone tube?
A: Its segmented design provides smooth multi-directional bending, excellent torque transmission, and precise positioning while maintaining structural strength.

Q4: What applications is this product suitable for?
A: It is widely used in endoscopic instruments, catheter delivery systems, robotic surgery, minimally invasive surgical devices, and precision medical equipment.

Q5: Do you provide OEM and ODM manufacturing?
A: Yes. We provide OEM and ODM services, including custom dimensions, articulation structures, laser-cut patterns, electropolishing, laser marking, and packaging based on customer specifications.
