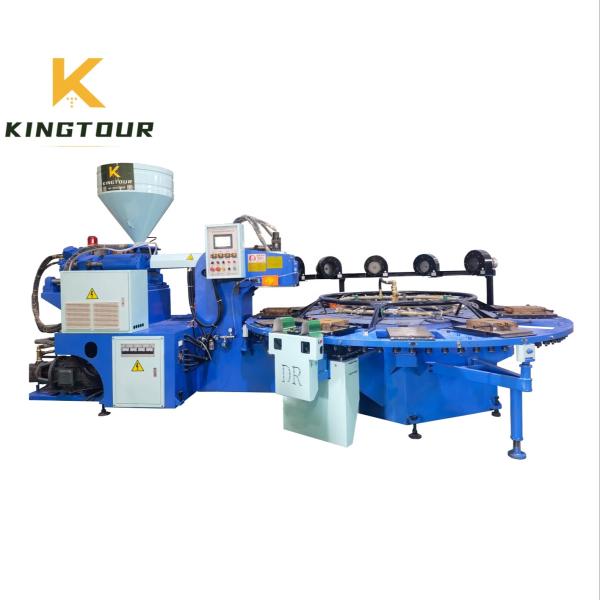

Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Specifications
Brand Name :
KINGTOUR
Model Number :
KT-668 Pro
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
USD 25000-58000
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
100 Sets Per Month
Delivery Time :
5-35 Days
Packaging Details :
Professional safety export package
Name :
Shoe Sole Making Machine
Production Capacity :
300-400 Pcs/Hour
Worker's Need :
1-3 Workers
Factory Space :
100 Square Meters
Function :
Making Shoe Sole
Weight :
12000 Kgs
Power Need :
50 Kw
Description
Rotary 2 Color PVC Sole Injection Molding Machine
Specialized in the production of shoe soles using compact and expanded thermoplastic materials such as PVC, TPR, TR and TPU.
Special Features of KT-668 Pro
Intelligent Control System
  • PLC + Touchscreen with 5-language interface, smartphone-like operation
  • 4-section precise temperature control
  • Ceramic band heater maintains stable temperature
  • Auto-alarm system for pressure/temperature anomalies
Efficient Production Design
  • Multi-Station Rotary Table enables simultaneous injection/cooling/ejection
  • 30% faster mold change compared to conventional machines
  • Air Blow System reduces product weight by 15-20%
Specifications
English Español Unit Value
Model Modelo Unidad KT-816 Pro
Production Produccion Pcs/h 300-500
Work station Numero de estaciones
20
Clamping force Fuerza de Abrazadera TON 150
Opening stroke Carrera de apertura MM 220
Mold dimension Dimension del molde MM 290*390*200
Injector Inyector SET 2
Screw diameter Diametro de tornillo MM 65,60
Max. Injection Volume Volumen maximo de inyeccion Cm3 800,700
Screw L/D ratio Relacion de tornillo L/D L/D 21:1
Screw rotation speed Velocidad de rotacion de Tornillo R.P.M 0-200
Heating power of injector Energia de la calefaccion del inyector KW 7*2
Motor Motor KW 22*2
Total power Consumo electrico total KW 58
Total power consumption with servo motor Consumo total de energia con servo motor KW 20-30
Temperature control Control de la temperatura Section 4*2
Machine dimension Dimension de maquina L*W*H 8000*4240*2350
Machine weight Peso de maquina KGS 11000
Note: Above data only for reference.
Shoes Made by Our Shoe Making Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
Our Factory
Rotary 2 Color PVC Sole Injection Molding Machine
Rotary 2 Color PVC Sole Injection Molding Machine
