Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
Specifications
Product Name :
Bushing
Density :
6.0-6.8g/cm3
Surface Roughness :
Ra0.8
Material of bands :
Bronze steel
Parallelism :
+/-0.005mm
Application :
Car shock absorber
Lubricating :
graphite, carbon, oilless, POM, PTFE
Standard :
DIN1494,ISO3547,ISO2795
Brand Name :
XIAYI
Model Number :
DU
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs per month
Delivery Time :
Sample Generally 10 Days And Mass Cargo According To Quantity
Packaging Details :
Packed in carton firstly and then reinforced with wooden case for outer packing
Description

Machining Of Sleeve Du Bushing with rust-proof oil plated used in gear pump

Specifications:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2 (dx) slide bearing bushing (POM Composite)

FB090 (FB090G) bronze bushing

FB092 bronze bushing

JDB, JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

FR metal mesh + PTFE Soft strips

JGB Graphite bearings

Description:

DU bushing is a standard item of our company

DU bearing is also called PTFE bushing, SF-1 oilless bearing, PTFE lined bearing, plain dry bushes, DU

bush.

Product Feature

Structure: Bronze Backing + Bronze Sinter + PTFE/PB

1. PTFE/PB mixture 0.01 - 0.03mm, provides an excellent initial transfer film, which effectively coats the

mating surface of the bearing assembly, forming an oxide type solid lubricant film.

2. Sintered bronze powder 0.20 - 0.35mm, provides max. Thermal conductivity away from the bearing

surface, also serves as a reservoir for the PTFE-lead mixture.

3. Bronze backing, gives exceptionally high load carrying capacity, excellent heat dissipation. Have very

good corrosion resistance.

Technical data

Max load capacity

Static

250N/mm2

Temp. limit

-195℃~+280℃

dynamic

140N/mm2

Friction coefficient

0.03~0.20

Speed limit

dry

2m/s

Thermal conductivity

42W(m*K)-1

oil

＜2m/s

PV limit(dry)

Short time

3.6N/mm2*m/s

Linear expansion

11*10-6*K-1

Availability:

Standard cylindrical bush, flanged bushing, thrust washers and strips are available.

Special designs can be made according to your requirement

Lead free bushing is also available

Applications:

DU bearing is widely Lifting equipment, Hydraulics and valves, pneumatic equipment, medical equipment,

textile machinery, agricultural equipment, construction equipment, material handing equipment, packaging

equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.

Applications:

Car or motorbike shock absorber

Competitive Advantage:

1. A complete set of testing equipment

2. Rich experience in bushing production

3. Good outsource factory

4. Have an audit for material supplier every year

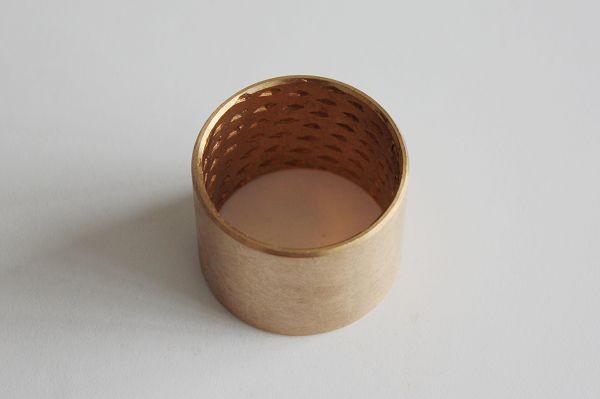

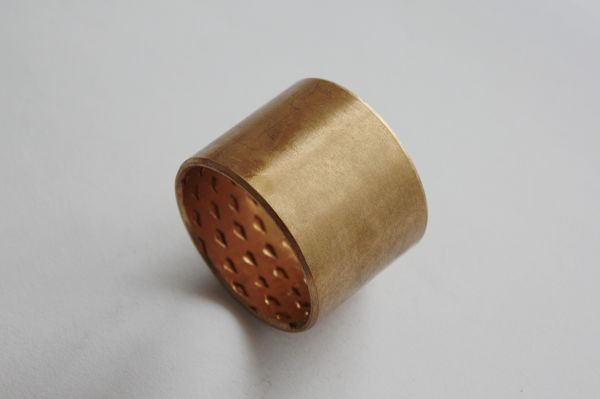

Picture Show

Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing

Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
