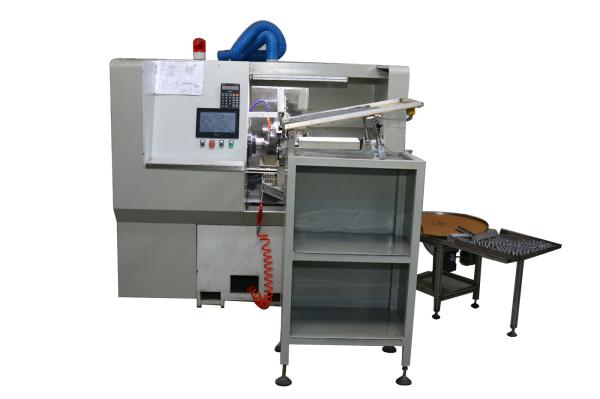

Automatic Plc Groove Making Machine For Sinter Piston
Automatic Plc Groove Making Machine For Sinter Piston
Specifications
Brand Name :
XIAYI
Model Number :
XYJD-GM03J
Certification :
ISO9001:2008
Place of Origin :
ZHE JIANG , CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1 SET PER 3 MONTHS
Delivery Time :
3-4 MONTHS
Packaging Details :
STANDARD EXPORTING PACKAGE WITH WOODEN BOX
MACHINE TYPE :
PRODUCTION
MAIN COMPONENT :
CYLINDER AND PLC
DIMENSION :
15000mm×1000mm×1200mm
Voltage :
380V
power :
20KW
TECHNOLOGY :
OEM
AIR PRESSURE :
0.5-0.7MPa
Description

Automatic Grooving Making Machine For Sinter Piston With Different Size Range

Technical parameters

Item Technical parameters
Machine name CNC Automatic Grooving Machine

Dimension(L x W x H)

 1760mm×1300mm×1600mm
Machine weight 1500kg
Rated voltage 380V
Rated frequency 50Hz
Maximum power 5kw
Lathe CNC lathe
Control system

CNC lathe program

PLC program
Equipment accuracy 0.001mm

Maximum speed of spindle

 3000r/min

Processable products

All kinds of piston groove processing and can be used as a conventional CNC lathe
Feeding system

Feeding of vibrating disc

Piston front and back identification
Discharge system

Conveyor belt

Rotating disc discharge

Purpose:

To make the slots for sinter piston, size from 20mm to 45mm

Competitive advantage:

1.Easily operation

2.Machine can adjust and re-design by customer's demand

3.Have high efficiency

4.Have good uniformity

Application:

All sinter piston with different size rang from 20mm to 45mm

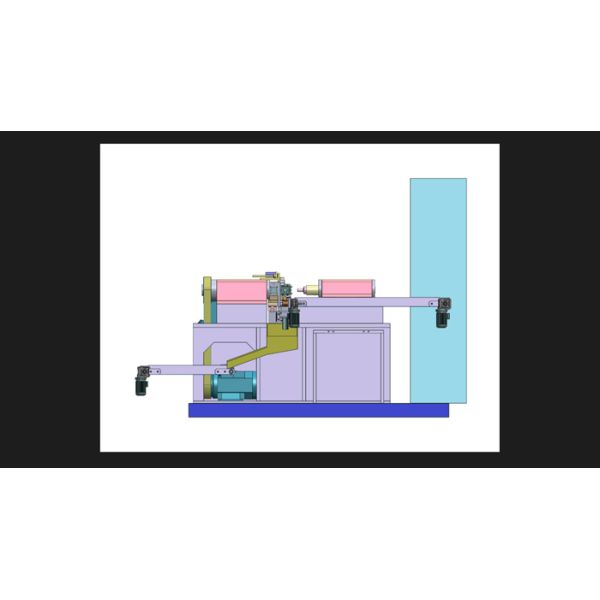

Picture show

Automatic Plc Groove Making Machine For Sinter Piston
