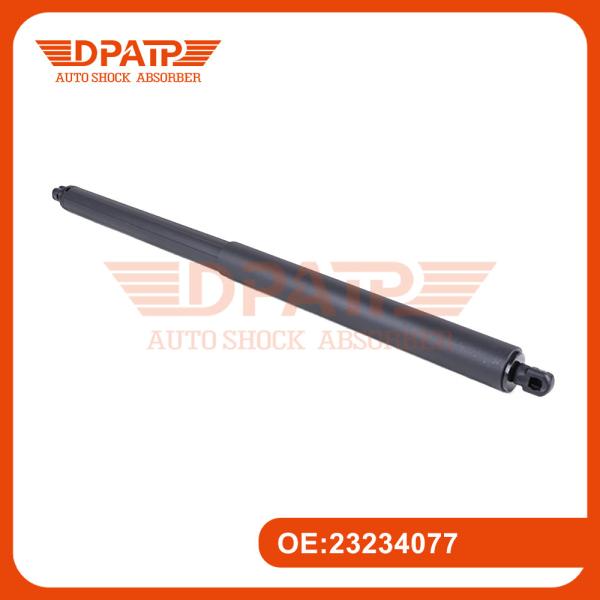

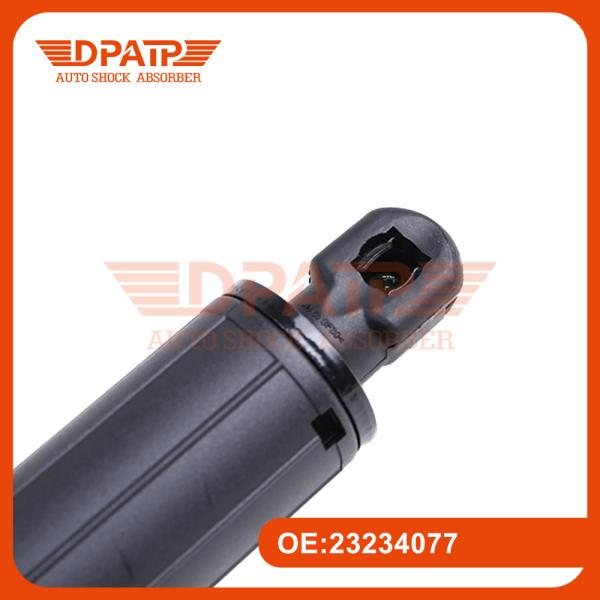

23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
23294346 23234077 Power Liftgate Actuator Smart For Cadillac SRX
Specifications
Place of Origin :
China
Brand Name :
Depin
MOQ :
2 Pieces
Price :
Negotiable
Certification :
ISO CE
Packaging Details :
Carton Box
Delivery Time :
3-15days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Sets/month
Model Number :
23234077
Item Name :
Smart Electric Tailgate Lift
Condition :
New
Model :
Cadillac SRX
Year :
2010 - 2016
OE NO. :
23294346 23234077
Car Fitment :
Cadillac
Type :
Auto Power Liftgate
Warranty :
12 Months
Description

23294346 23234077 Tailgate LiftGate Power Assist Actuator for Cadillac SRX

Product Introduction

Opening Procedure: When the user activates the open switch (either from inside the car, outside, or via the remote control), the control module receives the signal and powers the motor in the electric strut. The motor operates, extending the piston rod through the transmission mechanism, which raises the tailgate. A position sensor continuously monitors the tailgate's position, and once it reaches the fully open state, the control module halts the motor.

Closing Procedure: When the user presses the close switch, the control module reactivates the motor, which then reverses to retract the piston rod and lower the tailgate. Throughout this process, a pressure sensor monitors the force between the tailgate and any obstacles. If the pressure exceeds a predetermined threshold, indicating an obstruction, the control module immediately stops the motor and reverses the tailgate slightly to prevent injury or damage.

Functional Characteristics


One-click operation:

Simple push-button control, no need to manually pull the tail door, easy to open or close.
Height adjustment function:

Users can manually set the opening height of the tail door according to their needs, which is convenient for use in low altitude space.
Hands-free touch function:

Equipped with advanced sensing technology, users can automatically open through the kick sensor, freeing their hands for easy use when carrying heavy objects.
Intelligent safety sensor:

Built-in safety sensor, when the tail door is closed, it can automatically detect obstacles, ensure safety, and prevent people or objects from being hurt.

Hot Sales Models of Cadillac Electric Tailgate Strut

Model of Car

Part Number

Cadillac XT5

84227758 23508434

Cadillac XT4

84772431 84459212

Cadillac Escalade

84306929 84183515

Cadillac SRX

23429744
