1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
Specifications
Place of Origin :
China
Brand Name :
Depin
MOQ :
2 Pieces
Price :
Negotiable
Certification :
ISO CE
Packaging Details :
Carton Box
Delivery Time :
3-15days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Sets/month
Model Number :
1178900130 1179800564
Product Name :
Power Tailgate Lift
Material :
Iron Plastic
Model :
Mercedes Benz 117
Position :
Rear Tailgate Door
OE NO. :
1178900130 1179800564
Function :
Anti Pinch
Application :
Car Trunk
Warranty :
1 Year
Quality :
100% Tested
Installation :
Easy and Manual guide
Description

1178900130 1179800564 Auto Electric Power Tailgate Lift Support for Mercedes Benz 117

Description for Tailgate Lift Strut

Item Name

Description

Safety and reliability

Made of high-strength materials with excellent load-bearing capacity and durability, ensuring long-term stability and reliable performance, running without delay.

Convenience and elegance

Experience simple operation design, stylish exterior design not only enhances the overall appearance of the vehicle, but also makes the operation of the tailgate switch easy and smooth.

Improve user experience

By providing a smoother and more comfortable operating experience, the electric strut series simplifies the opening and closing process of the taildoor, significantly increasing user satisfaction.

Working Principle

When the user presses the open switch (such as the switch inside the car, the switch outside the car or the remote control button), the control module receives the signal and starts the motor in the electric rod, and the motor pushes the piston rod out through the transmission mechanism, thus driving the tail door to open upward. During the opening process, the position sensor monitors the position of the tail door in real time. When the tail door reaches the fully open position, the control module controls the motor to stop running. When closed, the user presses the close switch, the control module starts the motor again, the motor runs in reverse, the driving piston rod is withdrawn, and the tail door is closed down. During the closing process, the pressure sensor continuously detects the pressure between the tailgate and the obstacle; If the pressure is detected to exceed the preset value, indicating that the tailgate encounters an obstacle, the control module will immediately stop the motor operation and reverse the tailgate to open a certain distance to prevent injury to personnel or damage to items.

Data List

Material

Iron+Aluminum

Quality

100% Tested Before Shipment

Certification

3C/CE/ROHS/TS16949

Waterproof

IPX4

Working Temperature

-40℃~+80℃

Application

Automatical Car Trunk Opener

Operating Voltage

11-15V DC

Open and close time

6-10s

Running sound

<70 dB(A)

Operating life

50,000 times

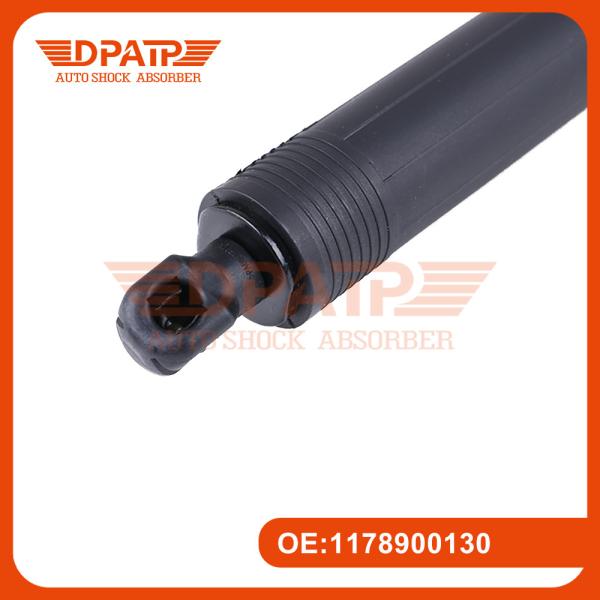

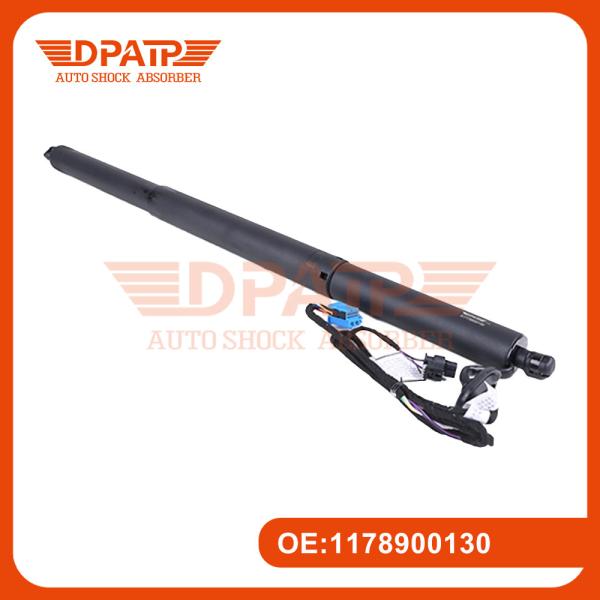

Photos of Liftgate Struts

1178900130 Auto Electric Liftgate Lift Support 1179800564 For Mercedes Benz 117
