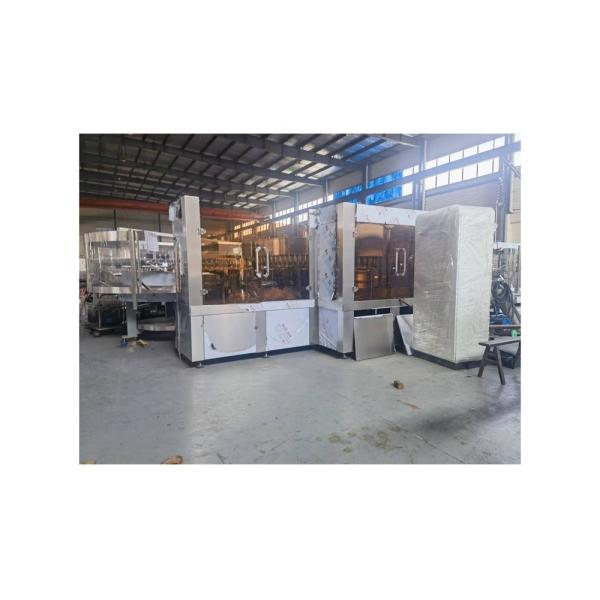

72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
Specifications
Machinery Capacity :
36000BPH, 30000BPH
Application :
Beverage, Water and Cabonated Drinks
Packaging Type :
Bottles, PET Bottles, Glass Bottles
Packaging Material :
Plastic, Glass
Automatic Grade :
Automatic, Fully Automatic
Driven Type :
Electric, Electric
Voltage :
110v/220v/380v/440v/480v
Place of Origin :
Shanghai, China
Brand Name :
NC, NC
Dimension(L*W*H) :
Customized
Weight :
17200 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Filling Material :
Beer, Milk, Water, Juice, Carbonated Drinks, Beer, Milk, Water,Juice,Carbonated Drinks
Filling Accuracy :
100, ±3mm
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Motor, Pump, PLC, Gear, Bearing, Gearbox, Engine
Bottle Type :
PET Bottle/Glass Bottle
Function :
Automatic Filler
Advantage :
Running Steady
Condition :
Brand New, New
Usage :
Water Beverage Production Line
Type :
Filling Machine
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
United States, Peru, India, Thailand, Kenya, Chile, Colombia
Warranty of core components :
1 Year
Price :
$115,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Overview

BEST SALES 72 HEADS FRESH FRUIT JUICE BOTTLING PLANT

Food sanitary stainless steel Automatic PLC control system Filling capacity from 500 to 36000 bottles per hour Easy operation Provide installation The three-in-one filling unit (include rinser, filler, capper) is used for the filling of water and hot beverages, such as tea and juice.
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
PRODUCT SPECIFICATIONS
Model
72 Heads
Rinsing Head
72
Filling Head
72
Capping Head
10
Production Capacity
36000BPH
Air Source Pressure
0.5-0.6MPa
Rinsing Water Pressure
0.15-0.2 MPa
Bottle Height
150-340MM (customized)
Bottle Diameter
Φ50-Φ110MM (customized)
Filling Way
Gravity Filling (customized)
Power
3 Phase 380V/50Hz 7.5KW
Dimensions
Customized
Weight
17200kg
PRODUCT CONFIGURATION
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
FLEXIBLE GRIP TO PREVENT STUCK
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
THICK STARWHEEL
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
COMPACT BEAUTIFUL SHAPE
SIMILAR PRODUCTS
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
Company Profile
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
Contact Us
72 Heads Fresh Fruit Juice Bottling Plant with Filling Material Beer and 30000BPH
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
Responsible Man(General Manager):Jason
Cel.Phone:0086-15221595986
Tel.Phone:0086-21-37575536
