Galvanized Wire Mesh Decking 850mm-1150mm Width For Warehouse Pallet Racking
Galvanized Wire Mesh Decking 850mm-1150mm Width For Warehouse Pallet Racking
Specifications
Brand Name :
Shitong
Model Number :
Wire Mesh Decking
Certification :
CE, TUV, ISO9001, IS014001
Place of Origin :
China
MOQ :
1000kg
Price :
$0.6-$1/kg
Payment Terms :
L/C,T/T
Supply Ability :
150tons/day
Delivery Time :
1-3 weeks
Packaging Details :
All goods packed with plastic wrap and fix with steel tape.
Type :
wire mesh decking
Material :
Q235B, high quality steel
Feature :
Anti-rust,can be customized,Secure,free design
Diameter :
4/4.5/5/6mm
Depth :
600-1500mm
Use :
Warehouse Rack
Width :
600-3000mm
Weight capacity :
200kg-3000kg
Color :
Customized as required
Surface treatment :
Powder Coating/Galvanized
Description

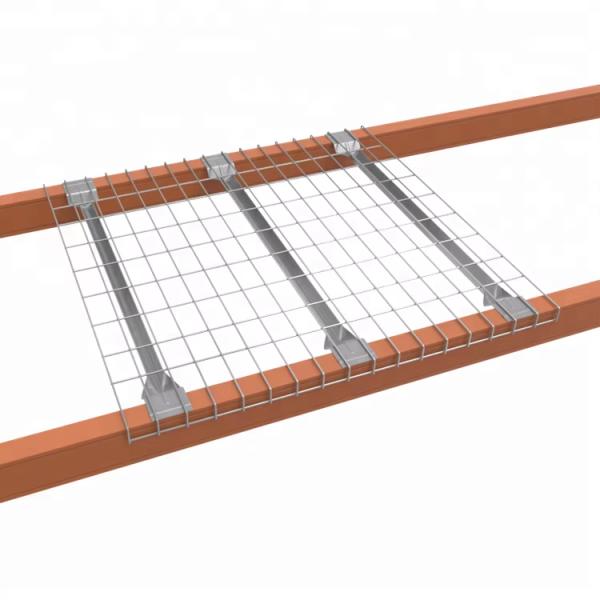

Wire Mesh Decking

Wire mesh decking is a type of steel deck panel designed to be placed over the beams of pallet racks or shelving. It consists of welded wire mesh supported by steel channels. Galvanized wire decking refers to similar panels but with a zinc coating (galvanization) to enhance corrosion resistance, durability, and performance in harsher environments.

Galvanized Wire Mesh Decking 850mm-1150mm Width For Warehouse Pallet RackingGalvanized Wire Mesh Decking 850mm-1150mm Width For Warehouse Pallet Racking

Features & Advantages

  • Fire Safety / Sprinkler Compliance: Open mesh structure allows overhead sprinkler systems to work effectively and facilitates water penetration in case of fire.

  • Improved Airflow & Visibility: Mesh allows light and air to pass through, reducing moisture buildup, enabling better inspection of items, and reducing risk of mold or mildew.

  • Enhanced Durability: Steel mesh is not subject to warping, rotting or splintering as wood decks are. When galvanized, more resistant to rust, scratches and harsh environments.

  • Safety / Reduced Item Fall-through: Smaller grid openings reduce risk of items slipping through deck; edges (waterfalls) prevent boxes from falling off front/rear.

  • Cost Effectiveness Over Lifecycle: Though initial cost may be higher than basic wood panels, wire mesh decking with galvanized finish typically lasts much longer, has lower maintenance, and fewer replacements.

  • Cleanliness and Hygiene: Because mesh allows easy washing / air drying, and does not absorb moisture, it is good for environments where hygiene is important (food, cold storage)

Width (mm) Depth (mm) Wire Diameter Mesh Size Reinforcement (pcs) Loading Capacity
850 900 5.0 mm 50 × 100 mm 3 750 kg
850 1000 5.0 mm 50 × 100 mm 3 500 kg
850 1100 5.0 mm 50 × 100 mm 4 800 kg
1000 900 5.0 mm 50 × 100 mm 3 750 kg
1000 1000 5.0 mm 50 × 100 mm 3 500 kg
1000 1100 5.0 mm 50 × 100 mm 4 800 kg
1150 900 5.0 mm 50 × 100 mm 3 750 kg
1150 1000 5.0 mm 50 × 100 mm 3 500 kg
1150 1100 5.0 mm 50 × 100 mm 4 800 kg

Applications / Best Use Cases

  • Warehouses using pallet racking systems requiring both palletized loads and mixed/non-palletized goods.

  • Cold storage or damp/humid environments, or where corrosion protection is important.

  • Facilities requiring compliance with fire safety or sprinkler systems.

  • Industries where hygiene is important (food processing, pharmaceuticals).

  • Situations where wooden decking fails due to splintering, moisture damage, or where visual inspection / overhead lighting is needed.

FAQ:

1.What’s your payment terms?

TT or L/C at sight

2. What is your packaging method?

All goods packed with plastic wrap and fix with steel tape. Ensure all goods can be moved by forklift.

Project Cases:

Galvanized Wire Mesh Decking 850mm-1150mm Width For Warehouse Pallet Racking
