Specifications
Brand Name :
DOOWIN
Model Number :
PLB
Certification :
BV, ISO, CE, SGS, ABS
Place of Origin :
Shandong, China
MOQ :
1 unit
Price :
USD 800~ USD 22000
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 PCS/ Month
Delivery Time :
2 weeks
Packaging Details :
Carton, Plywood box
Material :
PVC coated fabric
Safety Factor :
6:1
Capacity :
1ton~110ton
Color :
Yellow
Low Room :
Yes
Webbing Slings :
7:1 Safety factor
Repair Kit :
Yes
Customized Logo :
Yes
Description

50T BV Type Approved Crane Water Weights Proof Load Test Bags

Water weight bags are simple and safe water filled crane test weights designed to provide proof load testing instead of traditional solid load test weights.

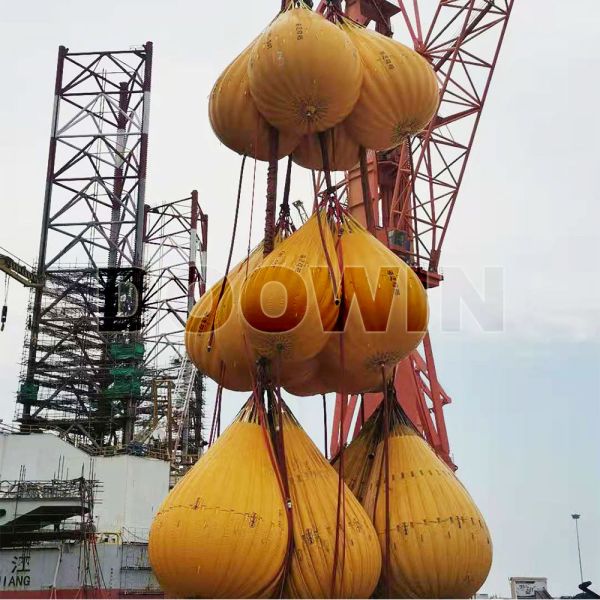

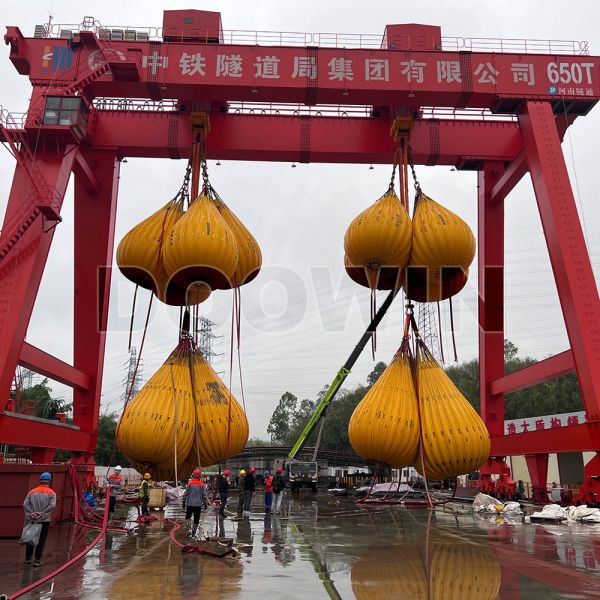

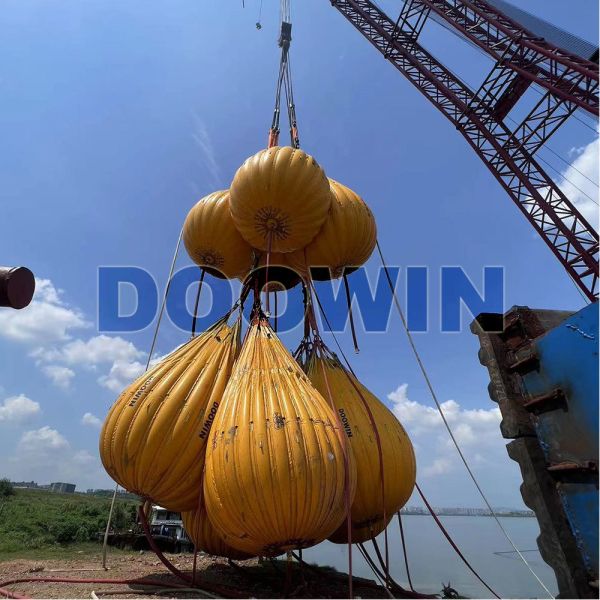

DOOWIN load test water weight bags are designed for proof load testing the lifting equipment and structures that request proof load weight testing. When it’s newly finished, or periodic check or maintenance. Such as crane load testing, beam load test, lifeboat davit load test, overhead crane load test. So, this water-filled water weight bags offer one kind of innovative crane load test weights solution. Most noteworthy, it has the advantages of Safety, Economy, Convenience, High Efficiency.

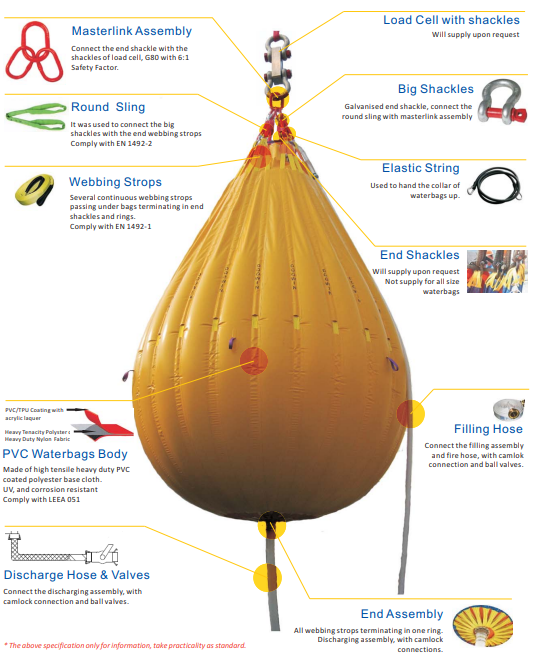

Quality Accessories

Top Quality Masterlink and Shackles

Top quality master link and shackles Made in China, top brand, EN 1677 or EN 13889. Crosby or Greenpin are available.

Double Ply 7:1 Eye-eye Webbing Slings

Comply with EN1492-2:2000 and EN1492-1:2000. Provide certificate of compliance.

High Pressure Filling & Drain Water Hose

High quality PVC and TPU high pressure hoses with valves and camlock.

Repair Material Complete Accessories

Equipped all fittings, ready for use. Include repair kits free of charge.


Load test water bag Specifications

The below specification is a common size proof load bags. In addition, we also make other size and capacity load test water bags upon request. We also make the low height proof load bags used for the low headroom projects.


Model Capacity (kg) Max. Diameter Filled Height Gross Weight
PLB-1 1000 1.3m 2.2m 50kg
PLB-2 2000 1.5m 2.9m 65kg
PLB-3 3000 1.8m 2.8m 100kg
PLB-5 5000 2.2m 3.7m 130kg
PLB-6 6000 2.3m 3.8m 150kg
PLB-8 8000 2.4m 3.9m 160kg
PLB-10 10000 2.7m 4.8m 180kg
PLB-12.5 12500 2.9m 4.9m 220kg
PLB-15 15000 3.1m 5.5m 240kg
PLB-20 20000 3.4m 5.5m 300kg
PLB-25 25000 3.7m 5.7m 330kg
PLB-30 30000 3.9m 6.3m 360kg
PLB-35 35000 4.2m 6.5m 420kg
PLB-50 50000 4.8m 7.5m 560kg
PLB-75 75000 5.3m 8.8m 820kg
PLB-100 100000 5.7m 8.9m 1050kg
PLB-110 110000 5.8m 9.0m 1200kg


Certificates

SGS Material Certificate

UK NEL TUV Drop Test Certificate

BV Type Approval Certificate

CE Certificates

ISO 9001:2015 Quality Certificate


Features and Advantages

Made from heavy duty UV resistance PVC coated fabrics, SGS certificated
Heavy duty double ply webbing sling 7:1 SF comply with LEEA 051
Easy to handle and operate to enhance the work efficiency
Complete with all accessories, valves, quick coupling, ready for use
6:1 safety factor verified for type test
Multi size are available for variants of load testing weight
Type Certificated by drop test
Rolled compactly easy carrying & storage, and operate
Light weight to save transportation cost and easy to operate
