Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
COSS 1100-4800#
Certification :
SGS, BV, CCS, ABS, LR, BV.
Place of Origin :
China
MOQ :
1pc
Price :
USD$ 6500~15900
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Product name :
Tie-in Type Pipe Laying Floats
Advantages :
Aging resistance, abbrasion resistance
Design Using Life :
7-10 Years
Size :
Diameter: 0.8m-2.0m, Length: 1m-24m
Packing :
Nude Packing, Pallet, Wooden Case
Inner material :
Polyethylene Foam Core
Skin :
Elester polyurethane Coating
Color :
Orange, Yellow, or customized
Warranty :
2 years
Customized :
Available
Description
Pipe Laying Floats Tie-in Offshore Foam Buoys Pipeline Laying Floats
Product AttributesOrange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Attribute Value
Product name Tie-in Type Pipe Laying Floats
Advantages Aging resistance, abrasion resistance
Design Using Life 7-10 Years
Size Diameter: 0.8m-2.0m, Length: 1m-24m
Packing Nude Packing, Pallet, Wooden Case
Inner material Polyethylene Foam Core
Skin Elester polyurethane Coating
Color Orange, Yellow, or customized
Warranty 2 years
Customized Available
Product Description

The pipeline laying floats can be strapped to the pipeline to reduce the tension and weight during pipeline deployment, providing essential buoyancy for installation. These pipe deployment float modules also provide buoyancy when pulling pipelines underwater.

We manufacture various tie-in pipeline foam buoys to provide optimal float solutions for different pipe laying buoyancy requirements. Our products are suitable for both shallow water and deep water applications, with capabilities extending to 300m depth or more upon request.

To meet diverse customer requirements, we offer pipeline foam buoys in two buoyancy module configurations: one-piece floats and modular floats. Our buoys are fabricated with different density closed cell foam cores depending on depth requirements, covered by polyethylene skin or polyurethane elastomer outer skin. The skin can be reinforced with nylon filament upon request.

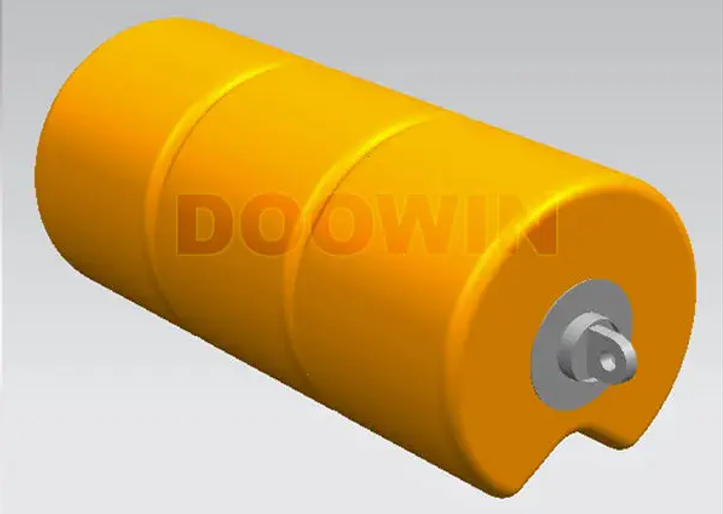

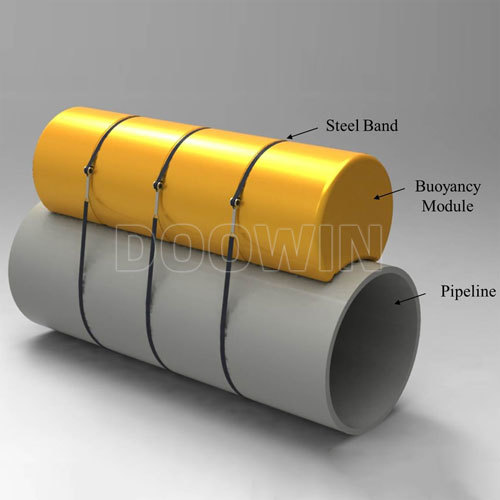

Each buoyancy module features banding grooves for secure attachment to pipelines. End fittings can be designed for easy handling operations, and floats can be fixed to pipes using various strap types or wire ropes as needed.

Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Tie-in Type Pipe Laying Floats Specification

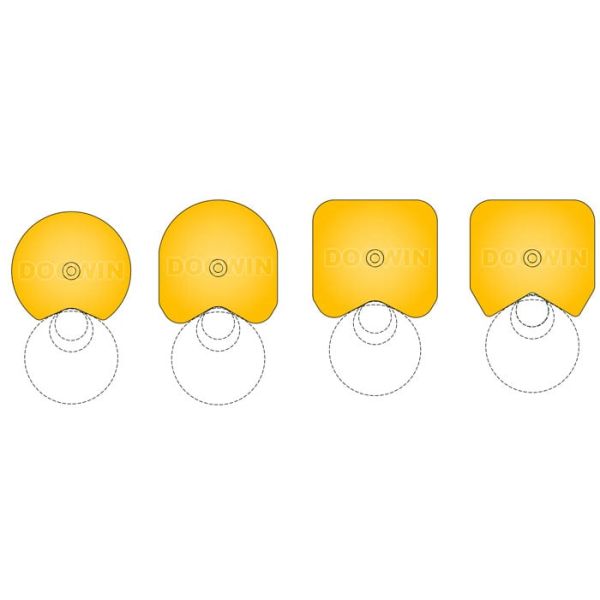

DOOWIN pipe-laying foam float buoys are custom-designed based on pipeline diameter, working water depth, and project requirements. We can produce various pipeline installation buoys and buoyancy modules according to client specifications. The bottoms feature special curve designs to accommodate different pipeline diameters.

Buoyancy and weight specifications vary by working depth, as we use different surface foam materials and syntactic foam for different water depths. Drawings and pictures are for illustrative purposes only.

Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float

Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
Model Width (mm) Height (mm) Length (mm)
COSS 2500 800 900 2500
COSS 3000 1000 900 3000
COSS 1100 1100 1100 1100
COSS 1200 1100 1100 1200
COSS 1400 1100 1100 1400
COSS 2400 1100 1100 2400
COSS 3600 1100 1100 3600
COSS 4800 1100 1100 4800
Orange / Yellow Pipe Laying Floats 0.8m-2.0m Diameter Tie In Pipeline Float
