Specifications
Brand Name :
DOOWIN MARINE
Model Number :
PRF
Certification :
LR, CCS, BV
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Production Standard :
ISO 17357-1:2014
Fender Pressure :
High-pressure Fender
Fender Types :
Net-type and Sling-type
Initial Internal Pressure :
50kPa and 80kPa
Safety-Valves :
175kpa and 230kPa for the diameter over 2.5m
Reinforcement Type :
Synthetic-tyre-cord Layers
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description

High-Pressure Floating Pneumatic Rubber Fender

The High Pressure Floating Pneumatic Rubber Fender is an advanced marine safety device designed to absorb kinetic energy during vessel docking, mooring, and berthing operations. Engineered for high-pressure environments, this floating fender system mitigates impact forces between ships and docks, safeguarding both vessels and port infrastructure from damage. Its pneumatic design ensures superior energy absorption and durability in harsh marine conditions.
High Pressure Floating Pneumatic Rubber Fender which is made of synthetic-cord-reinforced rubber sheet with compressed air inside, at initial pressure of 50 kPa or 80 kPa, to enable it to float on the water and work as a shock absorber between two ships, or between ships and berthing structures when they come alongside each other on the water.


High-pressure fender types
High-pressure fender types are defined as follows:
a) Type I — Net-type;
b) Type I Single — Net-type and one end with no flange opening and no metal parts.
c) Type II — Sling-type.
Initial internal pressure
Initial internal pressures are defined as follows:
a) pneumatic 50 (initial internal pressure 50 kPa);
b) pneumatic 80 (initial internal pressure 80 kPa).
Table 1 — Pneumatic 50 fender size and performance requirements
High Pressure Floating Pneumatic Rubber Fenders 175kpa 230kPa

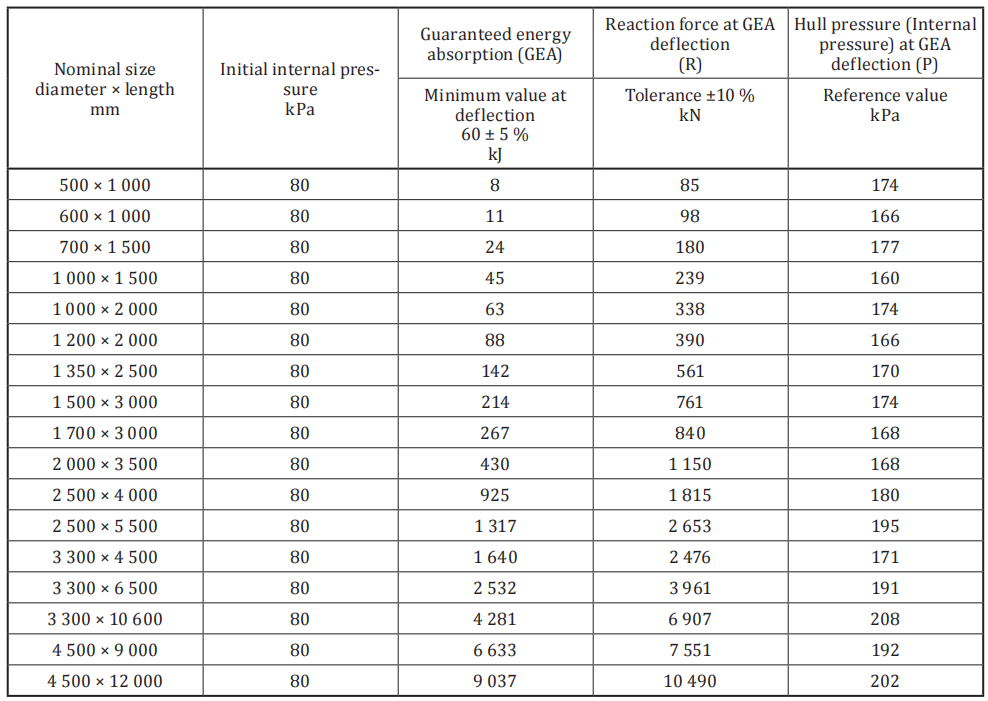

Table 2 — Pneumatic 80 fender size and performance requirements
High Pressure Floating Pneumatic Rubber Fenders 175kpa 230kPa

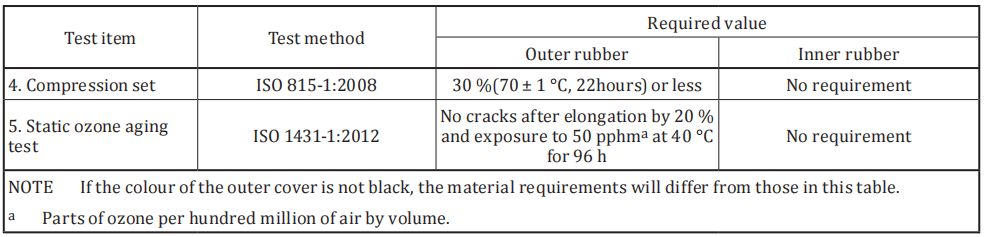

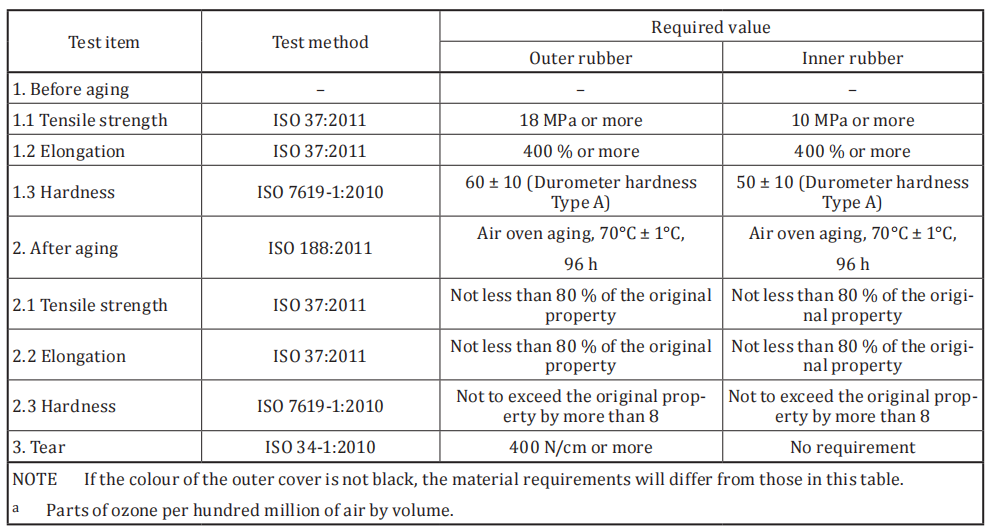

Outer and inner rubber material requirements
High Pressure Floating Pneumatic Rubber Fenders 175kpa 230kPa
High Pressure Floating Pneumatic Rubber Fenders 175kpa 230kPa
