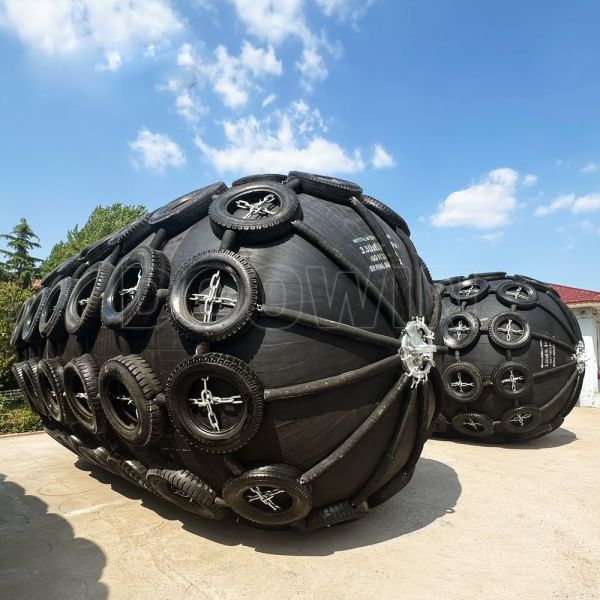

Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Hydro Pneumatic Rubber Fenders 1m - 9m With Chain / Tire Net
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
PF-1
Certification :
BV, CCS, ABS, LR, ISO
Place of Origin :
China
MOQ :
1pc
Price :
USD 160 ~ USD 28000
Payment Terms :
L/C,T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Pneumatic Rubber Fenders
Material :
synthetic-tire-cord layer and rubber
Diameter :
0.5m ~ 4.5m
Length :
1m ~ 9m
Standard :
ISO 17357: 2014
Certificates :
BV, CCS, ABS, LR, ISO
Initial Pressure :
50KPA, 80KPA
Description

ISO 17357 Standard Yokohama type Marine Rubber Pneumatic Fender With Chain and Tire Net


Product Description


Floating pneumatic rubber fenders are made of the synthetic-cord-reinforced rubber sheet with compressed air inside. The insider air can enable it to float on the water and work as a shock absorbed between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water. All Doowin Marine Yokohama type floating pneumatic rubber fenders are manufactured and tested fully compliant with ISO 17357.


Floating pneumatic rubber fenders can be easily handled and installed with guy-rope or guy-chain because of their lightweight. It can resist the shearing force and maintain energy absorption level under inclined compression up to 15 degrees. Meanwhile, provide low and comparatively even hull pressure.

Consisted of several synthetic-cord layers and tough abrasion-resistant rubber, they have consistent performance even under rough conditions and cyclic load. The maintenance cost and damage risk are minimized too. The best material also ensures self-buoyancy and extremely long service life.

Pneumatic fenders are available from 500 mm to 4,500 mm in diameters, and from 500 mm to 9,000 mm in length. All sizes of pneumatic rubber fenders are available as sling-type or with a heavy-duty chain & tire net. We also supply vertical hydropneumatic fenders for submarines. Foam filled fenders are floating fenders too.

Product Specifications

Product Name ISO 17357 Standard Yokohama type Marine Rubber Pneumatic Fender With Chain and Tire Net
Diameter(D) 0.5m ~ 4.5m
Length(L) 1m ~ 9m
Standard ISO 17357 : 2014
Types Sling type, Net type, Hydro-pneumatic fender
Initial Rressure 50KPA, 80KPA
Application Ship-to-ship, ship-to-port
Certificate BV, CCS, ABS, LR, ISO
Lifespan 10 years


Pneumatic Fenders Classification


Fender Pressure Rating

There are two initial pressure rating for our Pneumatic Rubber Fenders.
Pneumatic 50 (P50, Initial internal pressure 50kPa)
Pneumatic 80 (P80, Initial internal pressure 80kPa)

Pneumatic Fender Type

There are two common types our Pneumatic Rubber Fenders.
Type I — Net Type Covered with a chain net, wire net, or fiber net for small size fenders
Type II — Sling Type This type of fender has a lifting device on each end, which shall be connected with a guy chain or guy-rope. Without a protection net, easy to handle with lightweight)

Fender's Protection Net Type

Net-type fenders (TypeⅠ) are covered with a chain net, wire net, or fiber net. Each end of longitudinal chains, wires, or fibers is linked together with one or two ring(s), which shall be connected with a guy chain or guy-rope. Usually, these nets have used tires together with rubber sleeves for additional protection to the fender body, except for fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.

Our company developed several types of hanging rings. Our pneumatic rubber fenders can rotate freely with any type of handing ring. We also can make and supply special customized hanging rings.

Pneumatic Fender Construction


Floating pneumatic rubber fenders shall consist of an out rubber, reinforcement synthetic-tire-cord layer, and inner rubber, vulcanized firmly.

The properties requirements of outer and inner rubber material of floating pneumatic rubber fenders comply with ISO 17357:2014.
