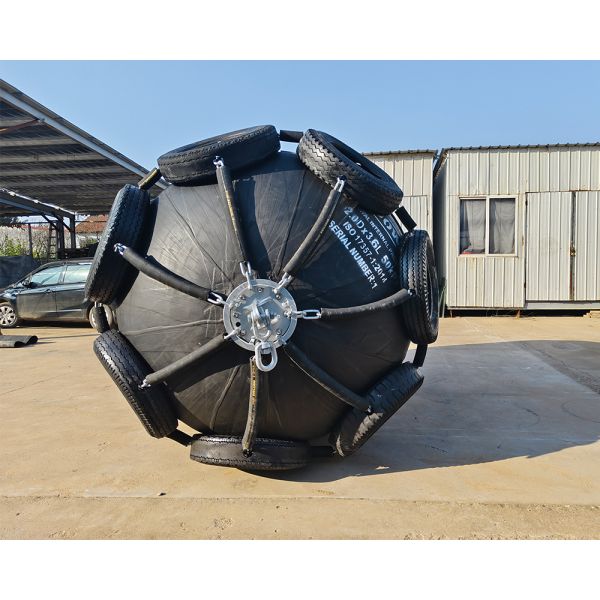

Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders
Specifications
Name :
Yokohama Floating Fenders
Color :
Black
Material :
Synthetic tire cord and rubber layer
Application :
STD,STS,Ships and Boats,Ship fender,Marine/quay/dock/boat
Size :
Customized,D3.3*L6.5m pneumatic rubber fender,ALL,2*3.5m,3.3x6.5m
Type :
Net type, Sling type
Place of Origin :
China
Brand Name :
DOOWIN MARINE
MOQ :
1pc
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description

DOOWIN Floating Yokohama Type Pneumatic Rubber Fenders China Dock Fender

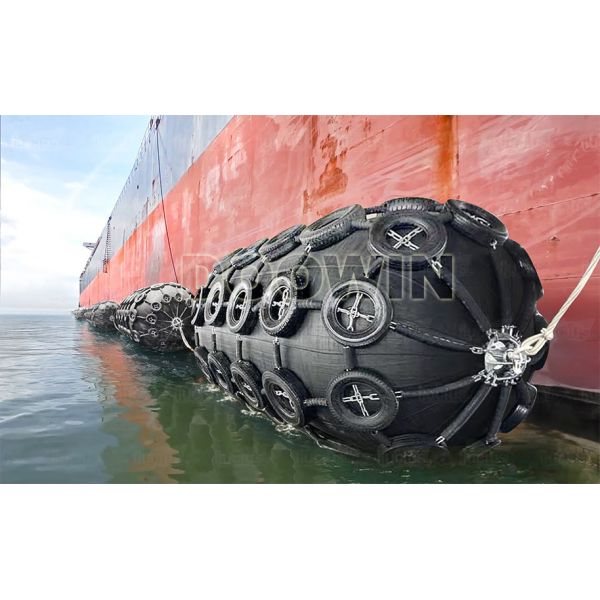

Pneumatic rubber fenders are made of synthetic-cord-reinforced rubber sheets with compressed air inside to enable them to float on the water and work as a shock absorber between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water.

Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders

Pneumatic Rubber Fenders Construction

Pneumatic rubber fenders shall consist of an out rubber, reinforcement synthetic-tire-cord layer, and inner rubber, vulcanized firmly.

Fenders of diameter 2500mm and larger equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. The properties requirements of outer and inner rubber material of floating pneumatic rubber fenders comply with ISO 17357:2002.


Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders

  • Outer Rubber
    The out rubber is used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound has sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
  • Tir Cord Layers
    The reinforcement synthetic-tire-cord layer strong enough to maintain the internal air pressure of the fender
  • Inner Rubber
    The inner rubber layer seals the pressurized air inside the fender

Pneumatic Marine Dock Fender Puncture Resistant Black Yokohama Floating Fenders

Pneumatic Rubber Fender Performance

The performance of floating pneumatic rubber fenders shall be specified in terms of Guaranteed Energy Absorption (GEA), Reaction Force at GEA deflection, and Hull Pressure at GEA deflection.

Pneumatic Fenders Item

Pneumatic Rubber Fenders Parameter

Fender Diameter

0.5 ~ 4.5m

Fender Length

1.0 ~ 9m

Initial Pressure

50kPa and 80kPa

Fender Type

Sling type, Net type, Hydro-pneumatic fender

Fender Standard

ISO 17357 : 2014

Fender Application

Ship-to-ship, ship-to-port

D x L

(mm)

P50 GEA

(kNm)

P50 Reaction Force

(kN)

P50 Hull Pressure

(kN/m2)

P80 GEA

(kNm)

P80 Reaction Force

( kN)

P80 Reaction Force

(kN/m2)

500x1000

6

64

132

8

85

174

600x1000

8

74

126

11

98

166

1000x1500

32

182

122

45

239

160

1000x2000

45

257

132

63

338

174

1200x2000

63

297

126

88

390

166

1350x2500

102

427

130

142

561

170

1500x3000

153

579

132

214

761

174

1700x3000

191

639

128

267

840

168

2000x3500

208

875

128

430

1150

168

2500x4000

663

1381

137

925

1815

180

2500x5500

943

2019

148

1317

2653

195

3300x4500

1175

1884

130

1640

2476

171

3300x6500

1814

3015

146

2532

3961

179
