Specifications
Brand Name :
DOOWIN MARINE
Model Number :
FD1.5-6.5
Certification :
CCS,ABS,LR,BV,DNV
Place of Origin :
China
MOQ :
1pc
Price :
590~3500 $USD
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
EVA Foam Filled Fender Bumper Buoy Marine Dock Edge Fenders White Cone Type
Material :
EVA closed cell foam core
Color :
Black,Yellow, Orange,accoring to requirements
Application :
For harbor, offshore and ship-to-ship application
Diameter :
0.7--3.3M
Length :
1.5--6.5M
Warranty :
2 Years
Design using life :
6-10 years
Description
EVA Foam Filled Fender Bumper Buoy Marine Dock Edge Fenders White Cone Type
Product Description

The DOOWIN Net Type Dock Floating Marine Solid EVA Foam Fender is a heavy-duty, unsinkable floating fender system designed for harbor, offshore, and ship-to-ship applications. These foam-filled fenders offer superior energy absorption with lower reaction force compared to pneumatic rubber fenders and other marine fender types.

EVA Foam Filled Fenders Bumper Buoy Marine Dock Edge Fenders White Cone Type

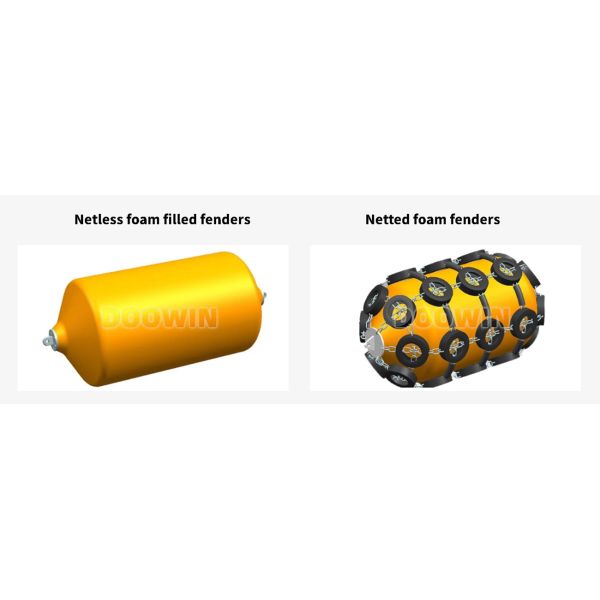

Fender Types
  • Netless foam fenders: Without chain and tire net protection
  • Netted foam fenders: With chain and tire net protection
EVA Foam Filled Fenders Bumper Buoy Marine Dock Edge Fenders White Cone Type
Features and Advantages
  • High Energy Absorption: Various foam densities available to absorb different impact energies while generating lower reaction forces
  • Tough Outer Skin: Rugged polyurethane elastomer skin reinforced with nylon mesh for added strength
  • Total Buoyancy: Naturally floats between ship and dock or between vessels
  • Unsinkable Design: Closed-cell foam structure prevents water absorption even if punctured

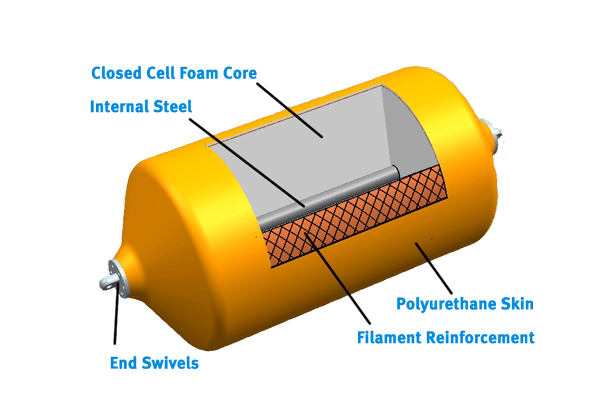

Construction

Foam filled fenders feature resilient, closed-cell foam cores with a urethane elastomer skin reinforced with nylon mesh.

EVA Foam Filled Fenders Bumper Buoy Marine Dock Edge Fenders White Cone Type

Key Construction Elements

High Energy Absorption Foam Core: 100% closed-cell foam with special laminating process ensures integrity and unsinkability

Tough Outer Skin: Polyurethane elastomer with nylon mesh reinforcement

High Quality Steel Structure: Central steel tube with external load distribution flanges, hot-dip-galvanized end fittings

Performance Specifications
Dia x Length (mm) Standard Energy (kNm) Standard Reaction (kN) High Energy (kNm) High Reaction (kN)
700 x 1500 15 80 33 175
1000 x 1500 28 102 62 229
1000 x 2000 41 151 89 332
1200 x 2000 54 169 119 369
1350 x 2500 91 249 199 548
1500 x 3000 146 356 320 782
1700 x 3000 169 369 370 809
2000 x 3500 273 507 585 1088
2000 x 4000 324 601 694 1290
2000 x 4500 374 698 803 1493
2200 x 5000 504 852 1091 1846
2200 x 6000 626 1058 1354 2293
3000 x 4900 870 1061 1885 2303
3000 x 6000 1155 1409 2505 3056
3300 x 4500 890 1004 1929 2171
3300 x 6500 1437 1621 3117 3515

EVA Foam Filled Fenders Bumper Buoy Marine Dock Edge Fenders White Cone Type
