Specifications
Brand Name :
DOOWIN MARINE
Model Number :
QP5,QG8,Qs10,QS12
Certification :
CCS,ABS,LR,BV
Place of Origin :
China
MOQ :
1pc
Price :
USD$1000 - $ 11900
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Product name :
Marine Ship Launching Airbag for Dock Land Launch Boat Vessel
Material :
Synthetic tire cord & Rubber layers
Color :
Black
Diameter :
0.8 ~ 3m
Length :
5 ~ 30m
Usage :
Ship launching,landing and slvage,Protect Boat.
Standard :
ISO14409
Packing :
Pallet or as per customer's requirements
Warranty period :
2 Years
Technology :
High Pressure,Whole Wrapping,anti-explosion type.
Life :
6-10 years
Description
Marine Ship Launching Airbag for Dock Land Launch Boat Vessel

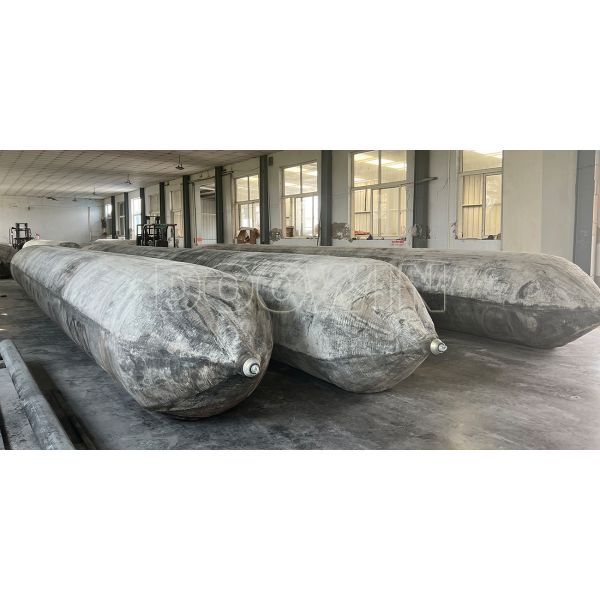

Ship launching airbags are known as roller bags, launching air balloons, inflatable marine airbags, air lift bags, and salvage bags. Ship launching airbags are specialized marine rubber air bags that are used for launching marine vessels. ship landing or haul-outs. Marine rubber airbags are also widely used in loading, floating, lifting and moving sunken ships, and salvaging stranded boats. Rubber airbags are made of heavy-duty synthetic-tire-cord layers with inner and out rubber layers in a long cylindrical balloon shape.
Rubber Ship Launching Airbags Inflatable For Dock Land Launch Boat Vessel

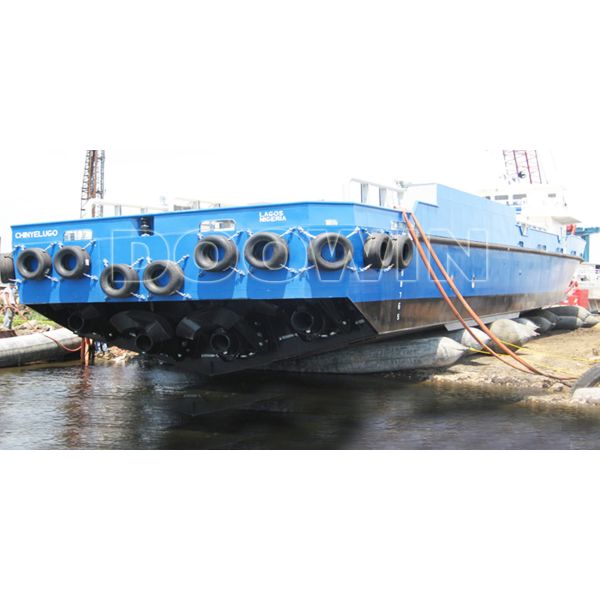

Ship launching or upgrading using marine airbags is an innovative ship-launching technology. It overcomes the disadvantage of “end-on launching”, “side ship launching”, and “float-out”. This ship-launching technology overcomes the restrictions of the fixed launching track of side-launch.This flexible ship launching technology is accepted by more shipyards worldwide because of its advantages of saving time, investment, flexibility, and safety. We are constantly innovating in terms of design, material usage, & manufacturing technologies throughout the years to ensure flexibility, safety, and reliability.

Up to now, more cargo vessels, barges, chemical tankers, tugboats, AHTS vessels, floating docks, and even construction caissons have all been launched using our ship-launching rubber airbags. The biggest vessel launched by ship launching airbags up to 100,000DWT.

Why Choose DOOWIN Marine Rubber Airbags
All Doowin Marine ship launching airbags are manufactured and tested fully compliant with ISO 14409:2011 Ships and marine technology — Ship launching airbags. To learn more technology, please kindly refer ISO 17682:2013 Ships and marine technology — Methodology for ship launching utilizing air bags

Rubber Ship Launching Airbags Inflatable For Dock Land Launch Boat Vessel

Launching air bags Type and Model

Ship Launching airbags are categorized by the following three types according to the bearing capacity, per meter in length. We define the number of layers, which means the number of Synthetic-tyre-cord layers, to confirm the Safety Working Pressure. Other types is available upon clients’ request.

QP - Ordinary airbag - with 3, 4, or 5 cord fabric layers.

QG - high-bearing capacity airbag - with 6, 7, or 8 layers of cord fabric.

QS - Superhigh-bearing capacity airbag - with 9, 10, or more layers of cord fabrics

For example: QG6/1.5x15

QG6: 6 layers of cord fabric + 1 rubber layer

1.5: Diameter is 1.5m

15: Effective length is 15m

Structure of Ship Launching Airbags
Rubber Ship Launching Airbags Inflatable For Dock Land Launch Boat Vessel

Rubber airbags are constructed of an out rubber layer, multi-layer synthetic-tire-cord layers, and inner rubber layer vulcanized firmly. More layers are applied at the end shoulders.

Synthetic-tire-cord layer

Synthetic-tire-cord layer is reinforcement layer of the ship launching airbags which are made of rubber coated synthetic-tire-cord fabrics. Many synthetic-tire cord layers are twined at ideal angles by unique and patented "Holistic Wrapping Technology". To hold the internal pressure and to distribute the stress evenly. We use the 1400 dtex/2 or 1400 dtex/3 type synthetic-tire-cord fabric. The warp is over 95 cords per 100 mm in width. The breaking strength is more than 310 N per cords.
Inner and Outer Rubber

Prior to the air bag production, the outer and inner rubber layers shall be tested to meet the criteria in accordance with the test methods given in the International Standards listed below. The outer rubber layer covers the outside of ship launching airbags. To protects the cord layers from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage.

Ship Launching Airbags Rubber Material Performance
No. Test Item Value Standard
1 Tensile Strength, Mpa ≥18 ISO 37
2 Elongation at break, % ≥400 ISO 37
3 Hardness, ° (Shore A) 60±10 ISO 7619-1
4 Tear Strength, N/cm ≥400 ISO 34-1
5 Compression set, % (70℃±1℃,22h) ≤30 ISO 815-1
6* Holding of pull lengthening, % ≥80 ISO 188
7* Holding of elongation at break, % ≥80 ISO 188
8* Change of hardness, ° (Shore A) ≤8 ISO 7619-1
9 Static ozone aging at 40℃ x 96h, extension 20% No crack ISO 1431-1
Ship Launching Airbags Performance Parameters

Type No.

Diameter

(m)

Initial Internal Pressure for Test

(kPa)

Rated Working Pressure

(kPa)

Bearing Capacity at 70% compress deformation

(KN/m)

Minimum Burst Pressure

(kPa)

QP5

0.8

48

210

184

630

1.0

35

170

186

510

1.2

28

140

185

420

1.5

20

110

181

330

1.8

16

90

178

270

2.0

14

80

176

240

QG6

0.8

56

245

215

740

1.0

45

200

219

600

1.2

32

165

217

490

1.5

25

130

218

390

1.8

20

110

220

330

2.0

18

100

220

300

QG7

0.8

64

270

237

810

1.0

50

220

242

660

1.2

38

190

251

570

1.5

29

150

247

450

1.8

25

130

257

390

2.0

23

120

264

360

QG8

0.8

70

300

264

900

1.0

54

240

264

720

1.2

45

210

277

630

1.5

32

170

280

510

1.8

29

150

297

450

2.0

26

140

308

420
