DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Type :
Type E
SWL Range :
80-200KN
Materials :
Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker
Technical Standard :
DIN 81915:1998-8
Weight :
185 to 540kg
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS
Description

DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

Description:

DIN 81915 complying with German standard has several types, type A, B, C, D and E. Mounted on deck or bulwark, it can limit the position of the rope and meanwhile protect the rope from friction.

Main Technical Specification:

1. Type: Type E;

2. SWL Range: 80-200KN;

3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

4. Technical Standard: DIN 81915:1998-8

5. Weight:185 to 540kg;

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS

Main Technical Parameter:

Nominal
size		 SWL
kN		 a b3 C e h1 l1 l3 r1 r2 r3 r4 S1 W1 W2 Weight
KG
8 80 340 752 130 460 360 680 750 R180 R113 R110 R293 18 320 225 185
12 120 350 775 130 470 360 760 800 R180 R125 R100 R305 28 400 250 300
20 200 560 1 070 190 650 520 1020 1200 R260 R160 R170 R420 28 500 320 540

DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

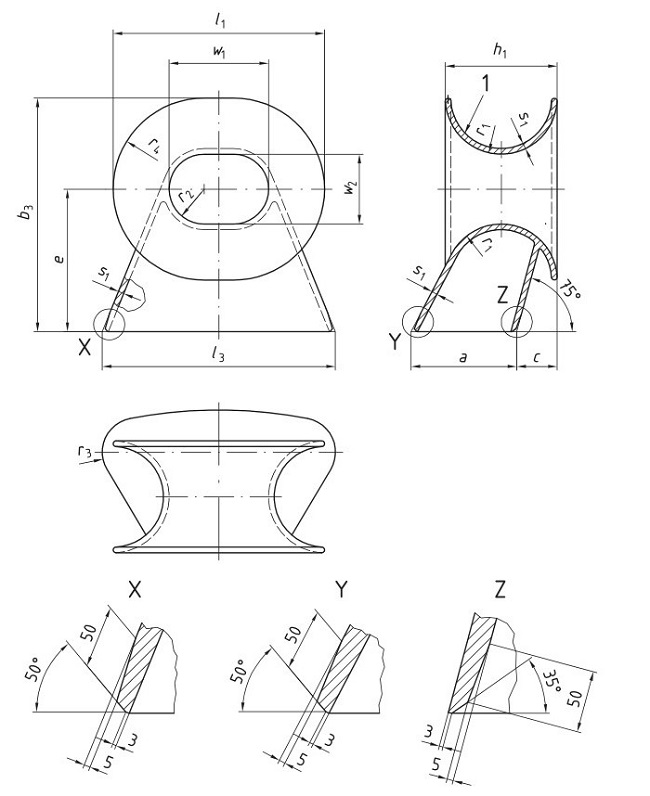

Drawing of DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing EquipmentDIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment
