50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer
Specifications
Brand Name :
Gnee
Model Number :
S11M
Certification :
ISO CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
7-15 days
Packaging Details :
Wooden Case
Rated Capacity :
30-2500 kVA
Phase :
Three
Frequency :
50Hz, 60Hz
Vector Group :
Dyn11/Yyn0/Yd11/YNd11
Cooling Method :
ONAN
Description

Product Introduction

A 50 HZ oil filled transformer is a key component in electrical distribution systems. Operating at the 50 - hertz frequency standard in many regions, it uses oil as a coolant and insulator. This helps in efficient heat dissipation and safeguards against electrical breakdowns. Ideal for distributing power from substations to end - users, it can handle different load requirements. Its robust design ensures reliable power supply, making it a staple in both urban and rural power distribution setups.

If you wish to obtain more detailed information, please feel free to contact us via email at sales@gneesteels.com.


Scope of Supply

Product: Liquid filled transformer

Rated Power: Up to 2500 KVA

Primary Voltage: Up to 11 KV

The S11-M series liquid dielectric transformer can be designed according to customer's requirements.

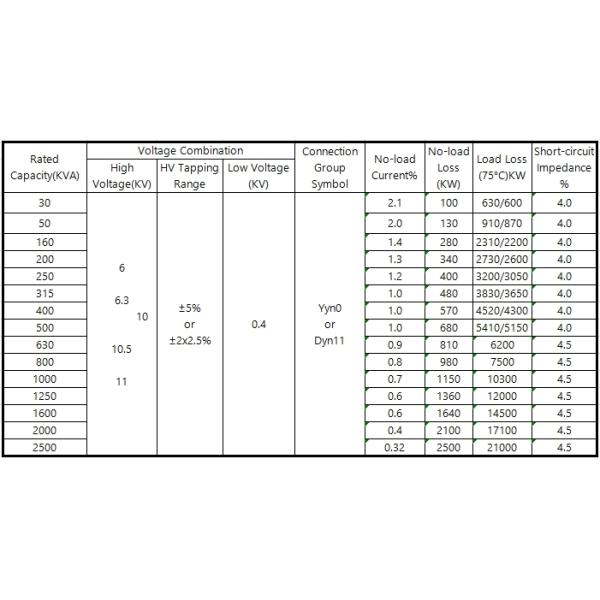

Technical specification

Three phase oil immersed transformer specification and data sheet. For instant communication, please feel free to contact us via email at sales@gneesteels.com.

50 HZ Oil Filled Distribution Transformer


50 HZ Oil Filled Distribution Transformer: Ideal for Diverse Industrial Applications

The 50 HZ oil filled distribution transformer is engineered for 50Hz alternating current power systems with rated voltages of 10kV, 20kV, or lower. Its robust design makes it a versatile solution, especially suited for demanding environments across various industries.

In sectors like petroleum, metallurgy, chemical processing, textiles, and light manufacturing, reliability and safety are paramount. This oil filled power distribution transformers fully sealed structure prevents dust, moisture, and contaminants from entering, ensuring consistent performance even in large dust-prone areas. By minimizing the risk of internal component degradation, it reduces maintenance requirements and downtime, making it an essential asset for industrial operations that rely on stable power distribution.

50 HZ Oil Filled Distribution Transformer50 HZ Oil Filled Distribution Transformer
50 HZ Oil Filled Distribution Transformer

About Us

GNEE has been at the forefront of manufacturing a comprehensive range of oil-immersed transformers for 18 years, covering the S9 to S22 series. Our step up step down transformers, with voltage ratings spanning from 6kV to 35kV and capacities ranging from 50kVA to 5,000kVA, are engineered to address the diverse requirements of various scenarios and applications.

What truly sets our products apart is the meticulous attention to detail. Every component, down to the smallest bolt, is crafted from hot-dip galvanized material. This choice of high-quality material guarantees exceptional durability, ensuring that the bolts remain rust-free for up to 30 years. This commitment to quality underscores GNEE's dedication to delivering reliable, long-lasting electrical solutions.
