80 KVA 10KV Ester Oil Transformer
80 KVA 10KV Ester Oil Transformer
80 KVA 10KV Ester Oil Transformer
80 KVA 10KV Ester Oil Transformer
80 KVA 10KV Ester Oil Transformer
80 KVA 10KV Ester Oil Transformer
Specifications
Brand Name :
Gnee
Model Number :
S22
Certification :
ISO CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
7-15 days
Packaging Details :
Wooden Case
Rated Capacity :
30-2500 kVA
Phase :
Three
Frequency :
50Hz, 60Hz
Vector Group :
Dyn11/Yyn0/Yd11/YNd11
Cooling Method :
ONAN
Description

Product Introduction

High efficiency, low loss, low noise, strong load resistance and long service life.

Gnee offers distribution transformers with a rating of up to 2500kVA and a primary voltage of up to 35kV. The corrugated tanks, serving as thermal expansion and contraction components, ensure the transformer oil is completely isolated from the atmosphere. Additionally, Gnee can custom - manufacture oil distribution transformers with primary voltage options including 6, 10, 10.5, 11, 20, 22, 24, 33, 35, 38.5kV to meet specific customer needs.

For more detailed information, please do not hesitate to contact us at sales@gneesteels.com.


Scope of Supply

Product: Liquid filled transformer

Rated Power: Up to 2500 KVA

Primary Voltage: Up to 11 KV

The S22 series liquid dielectric transformer can be designed according to customer's requirements.


Technical specification

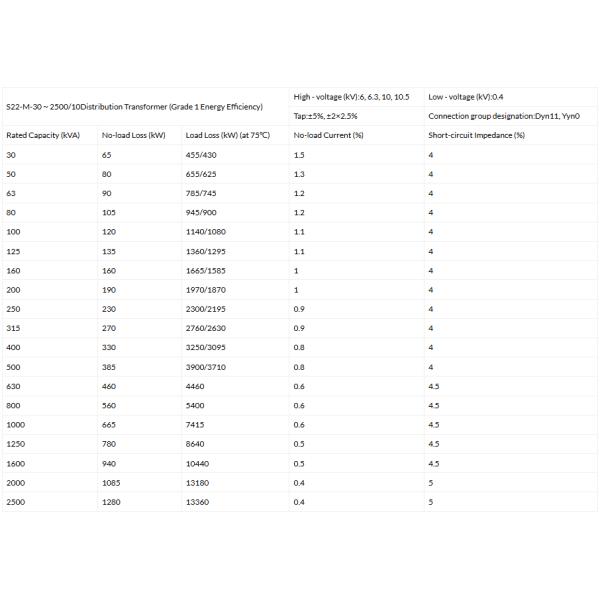

Three phase oil immersed transformer specification and data sheet. For instant communication, please feel free to contact us via email at sales@gneesteels.com.

80 KVA 10KV Ester Oil Transformer

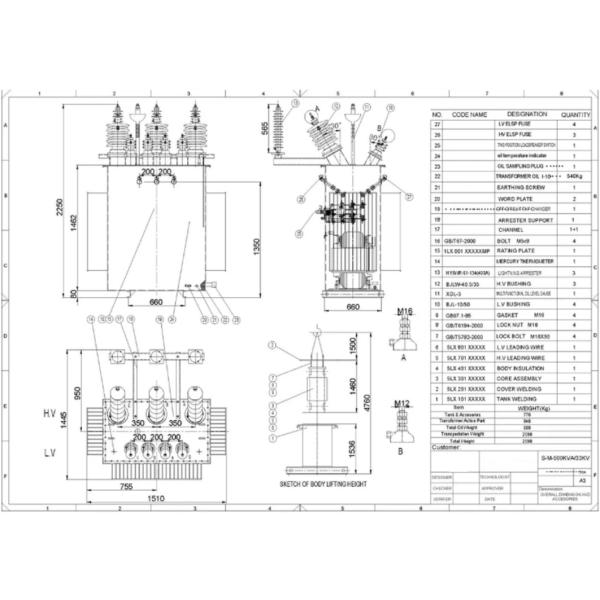

General Arrangement Drawing

80 KVA 10KV Ester oil transformer dimensions and weight details

80 KVA 10KV Ester Oil Transformer

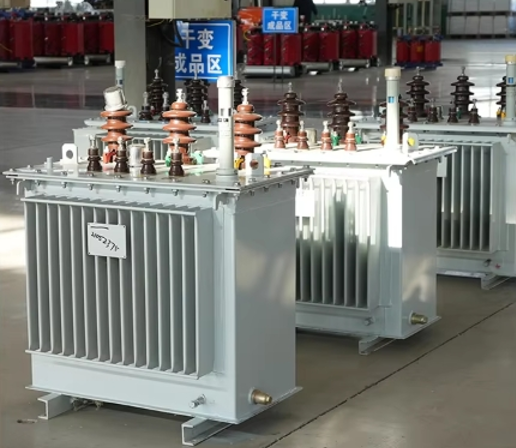

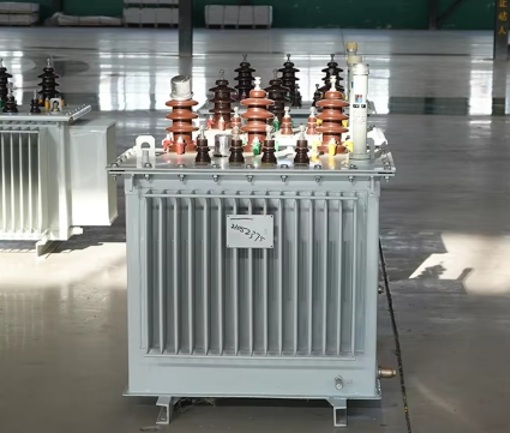

display of 80 KVA 10KV Ester Oil Transformer

80 KVA 10KV Ester Oil Transformer


Advantages of 80 KVA 10KV Ester Oil Transformer

Exceptional Heat Resistance

Equipped with Nomex® paper insulation system, it boasts outstanding high - temperature resistance, ensuring safety and reliability. Paired with an efficient cooling system, it guarantees stable operation.

High - efficiency Energy Saving

Utilizing a robotic oblique - seam structure, it significantly reduces the no - load loss and no - load current of the immersed transformer, effectively minimizing energy consumption and demonstrating excellent energy - saving performance.

Quiet Operation

Through low - magnetic - flux - density design, the use of high - quality high - permeability silicon steel sheets, precise control of lamination accuracy by Swiss fully - automatic lamination machines, and supplemented by reliable clamping, bracing, and special shock - absorption measures, it remarkably reduces operating noise and creates a quiet environment.

80 KVA 10KV Ester Oil Transformer80 KVA 10KV Ester Oil Transformer

80 KVA 10KV Ester Oil Transformer
