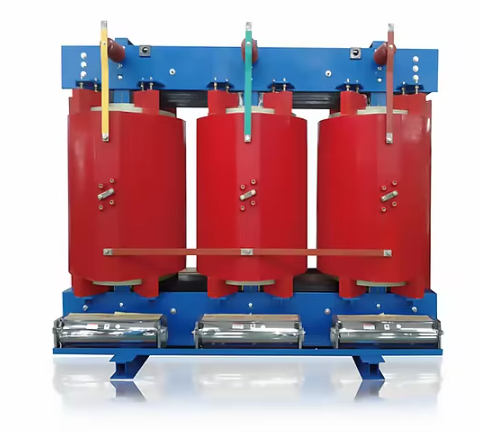

11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
Specifications
Brand Name :
GNEE
Model Number :
SCB10
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
5-8 work days
Packaging Details :
Wooden packing
Model Number SC(Z)(B)10-2500/10 :
SC(Z)(B)10-2500/10
Type :
Dry Transformer
Vector Group :
Dyn11 / Yyn0
Winding material :
Copper\Aluminum
Cooling Method :
ONAN ONAF
Color :
Red
Description

A dry type transformer is defined as a transformer that uses air or gas—instead of liquid—as the insulating and cooling medium for its windings and core, all contained within a pressurized sealed tank.

Dry type transformers are widely used in various industries and applications because of their safety, reliability, and environmental benefits. They can operate in harsh conditions such as high humidity, fire risk, and seismic events without compromising their performance or posing any hazard to people or property.

Model
(kVA)
HV/LV
(kV)
No Load Loss
(kW)
Weight
(kg)
Dimension
(mm)
30















0.2-20/0.2/20
205
285
770*500*750
50
285
330
820*500*810
80
380
465
860*550*890
100
410
530
890*650*940
125
470
640
920*650*980
160
550
760
960*800*1010
200
650
905
1000*800*1050
250
740
1085
1070*900*1075
315
880
1175
1110*900*1100
400
1000
1460
1170*900*1075
500
1180
1670
1180*970*1205
630
1350
1890
1320*1000*1280
800
1540
2320
1325*1000*1300
1000
1750
2800
1420*1180*1390
1250
2030
3255
1530*1320*1430
1600
2700
4115
1610*1320*1520
2000
3000
4690
1650*1500*1600
2500
3500
5620
1750*1550*1650
3150
4000
6850
1890*1550*1800
4000
4700
8110
2020*1620*1960


11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use

Advantages of Dry Type Transformers

Some of the main advantages of dry type transformers are:

  • Dry transformers enhance safety by eliminating flammable or toxic liquids, reducing the risk of leaks or fires.
  • They are maintenance-free and pollution-free because they do not require any oil changes, oil tests, oil spills cleanup, or special disposal methods.
  • They are easy to install because they do not require any vaults or special foundations. They can be placed close to the load to reduce the need for long and costly low voltage cables.
  • They are environmentally friendly because they do not emit any harmful gases or contribute to the greenhouse effect.
  • These transformers excellently handle overloads due to their superior heat dissipation and thermal endurance compared to oil-filled types.
  • They have reduced costs on civil installation works and fire protection systems because they do not need any oil containment pits, fire walls, fire extinguishers, or sprinklers.
  • They have excellent performance in the case of seismic events because they have a rigid structure that can withstand vibrations and shocks.

11kv Epoxy Resin Cast SCB10 Dry Type Transformer with Copper/Aluminum Winding for Industrial Use
