Specifications
Brand Name :
GNEE
Model Number :
ASTM A213
Certification :
SGS
Place of Origin :
henan
MOQ :
1 Tons
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Tons per Month
Delivery Time :
15-30 days
Packaging Details :
seaworthy export packing with fumigated wooden pallets or steel pallets
Standard :
ASTM
Grade :
T11
Shape :
Round
Test Certificate :
EN10204 3.1, 3.2
Marking :
ASME, ASTM, EN Standards
Length :
max 6000mm,12000mm,Custom Length
wall thickness :
0.5 mm – 8 mm
Description

ASTM A213 T11 hot-worked seamless pipes shall be manufactured by hot-rolled seamless process. Available in full annealing or isothermal annealing; or normalized and tempered for both heat treatment conditions. The maximum service temperature of ASTM A213 T11 grade alloy pipe is 560°C. It is a high temperature steel pipe with good oxidation resistance.
They are tested by non-destructive electrical or hydrostatic test and tempered at a temperature above 650°C to ensure that ASTM A213 T11 seamless boiler tubes are suitable for boilers, superheaters and heat exchangers.
ASME SA213 T11 alloy steel seamless pipes have good high temperature resistant physical properties and are used in various application industries such as petroleum, chemical, power, natural gas, water, metallurgy, shipbuilding, construction, etc.

ASTM A213 T11 Seamless Steel Tubes Quick Details
Manufacture:Seamless process ,Hot-finished or Cold-finished
Wall thickness(WT): 0.9 mm--12.7 mm.
Outer diameter (OD): 12.7 mm--127 mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Treaded
Port of Shipment: Tianjin, China
Payment Terms:T / T, LC
Delivery: 7-15 days after payment
Surface: Tubes will be varnished (Outside only) to prevent rust.
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden) or as required

Chemical Composition of ASTM A213 T11 steel Superheater Tubes

Grade Chemical Composition(%)
C Mn P S Si Cr Mo
A213 T11 0.05-0.15% 0.30-0.60% ≤0.025% ≤0.025% 0.50-1.00% 1.00-1.50% 0.45-0.65%

Mechanical Properties of ASTM A213 T11 Seamless Boiler Tubes

Properties Data
Tensile strength (Min) 415 Mpa
Yield strength (Min) 220 Mpa
Elongation 30%
Delivery condition annealed

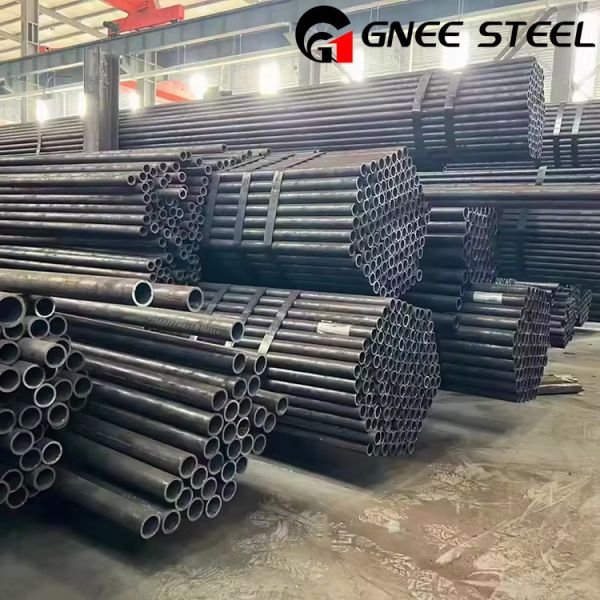

A213 T11 seamless pipe

Advantages of GNEE

GNEE pipes and tubes have a wide range of applications in many market sectors, including the oil and gas, petrochemical and construction industries. And we can offer different properties for different purposes (e.g. corrosion protection).
