Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
Specifications
Brand Name :
Gnee Rail
Model Number :
Cast In Railway Shoulder
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
30 days
Packaging Details :
Gunny bags or cartons and wooden pallet
Description

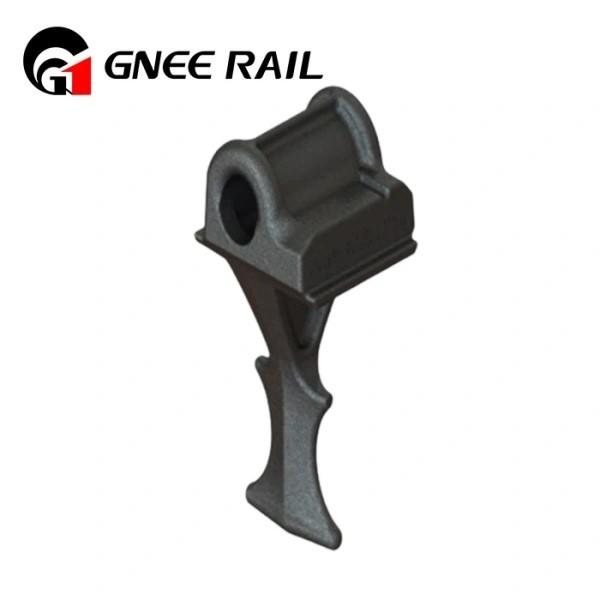

Cast in rail shoulder

Cast-in rail shoulder is embedded in the concrete ties,forming an integral part with the concrete. Its primary function is to provide support for securing other components of the railway track, such as elastic rail clips. GNEE cast-in shoulder is produced by casting iron, following standards such as BS EN 1563 (1997), DIN 1693, GB/T 1348-1988, GOST 7293 (1985), ISO1038, JIS G5502 (2001), KS D 4302, or NF EN 1563 (1997).

Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments

Cast in rail shoulder specification

Materials QT400-15, QT450-10, QT500-7, QT600-3, QT700-2, ZG25, ZG35, ZG45
Model Customized according to the provided drawing
Surface Plain Oiled, Oxygen Black
Production Type Sand casting, Hot Forging

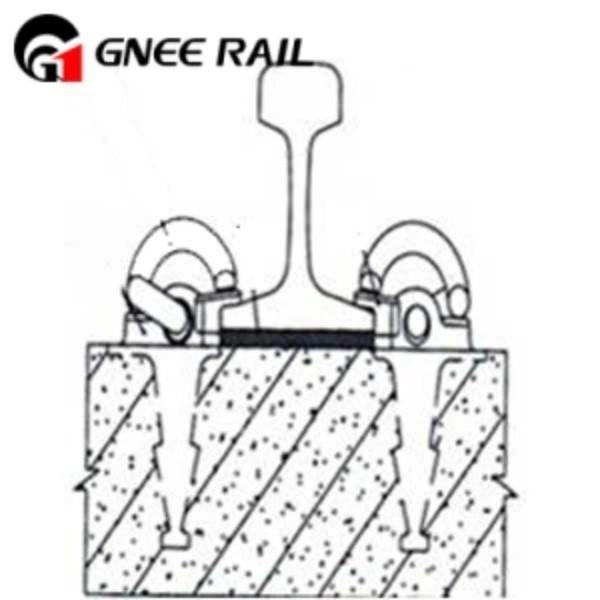

Cast in rail shoulder drawing

Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments

Cast in rail shoulder material technical parameter

Material Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
QT400-15 (GGG40) 400 250 15
QT450-10 (GGG45) 450 310 10
QT500-7 (GGG50) 500 320 7

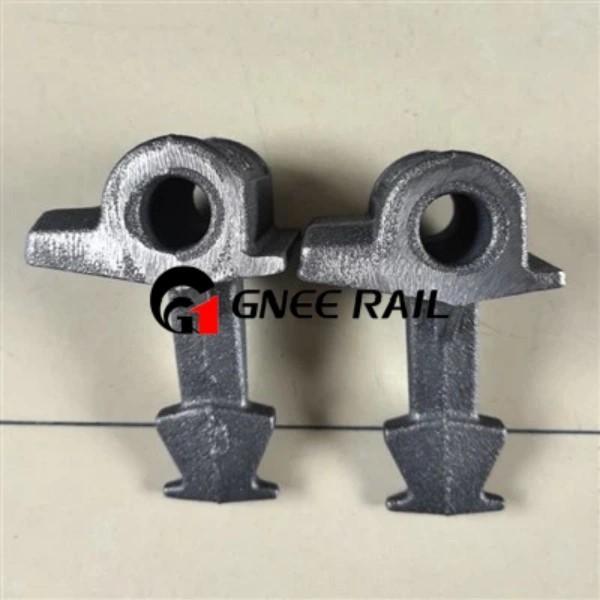

Cast in rail shoulder workshop

GNEE specializes in the production of various high-quality Cast in Rail Shoulder. We strictly monitor the quality of each product and welcome customers to send drawings for inquiries and customization.

Perfect Cast in Rail Shoulder for Securing Railway Tracks in Different Environments
