Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description
Professional Custom Road and Bridge Industrial Steel Floor Grating

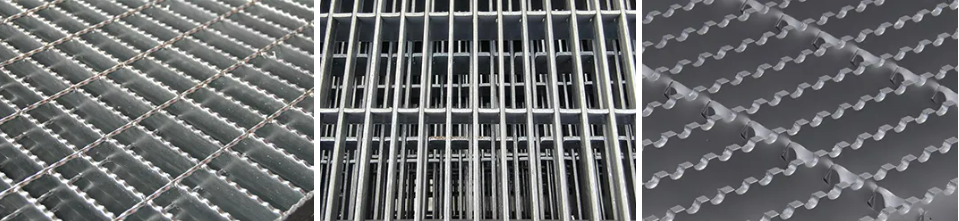

Steel bar grating is engineered for high strength and robust structural performance, manufactured from carbon steel, aluminum, or stainless steel. Available in various production methods including welded bar grating, press-locked grating, swage-locked grating, and riveted grating, with surface options in both smooth and serrated designs.
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Welded Bar Grating
Also known as metal open bar grating, available in smooth and serrated surface types. While smooth steel bar grating is more commonly used, serrated grating provides superior skid resistance for enhanced safety.
Press Lock Grating

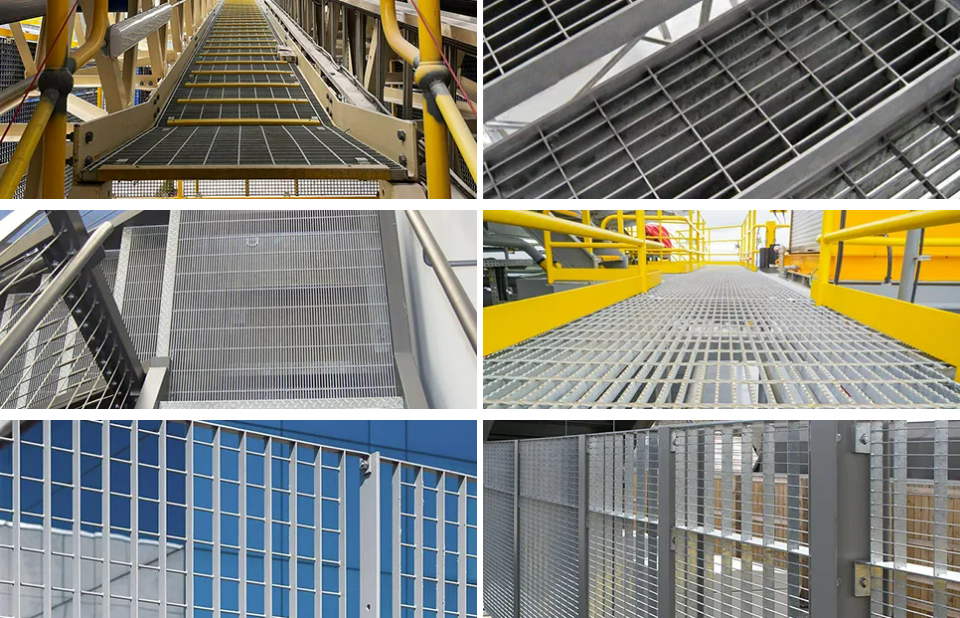

Fabricated from low carbon steel, stainless steel, or aluminum by bonding slotted bars under hydraulic pressure. This construction delivers exceptional strength and durability, making it ideal for industrial and commercial applications including stair treads, platforms, walkways, and covers. Serrated surfaces offer enhanced anti-slip properties.
Swage Locked Grating
Primarily manufactured from aluminum or stainless steel bars, formed by inserting cross bars into pre-punched bearing bars and locking them under hydraulic pressure. Available in three bearing bar configurations: rectangular, T-bar, and I-bar profiles, with I-bar options providing lighter weight and cost-effective solutions.
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
Product Specifications
Material Carbon Steel, Stainless Steel, Aluminum
Surface Treatment Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing Bar Type Plain (Flat) bar, Serrated bar, I-bar, etc.
Common Specifications

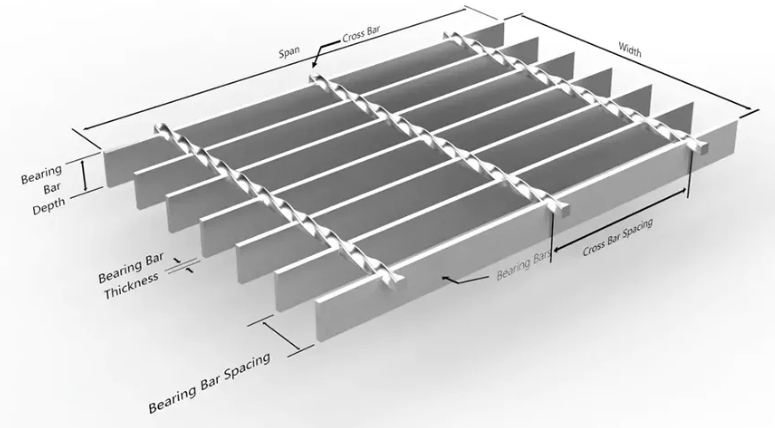

Bearing Bar Pitch (mm) Cross Bar Pitch (mm) Bearing Bar Size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
Professional Custom Hot DIP Galvanized Stainless Steel Press Lock Bar Grating for Industrial Use
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
