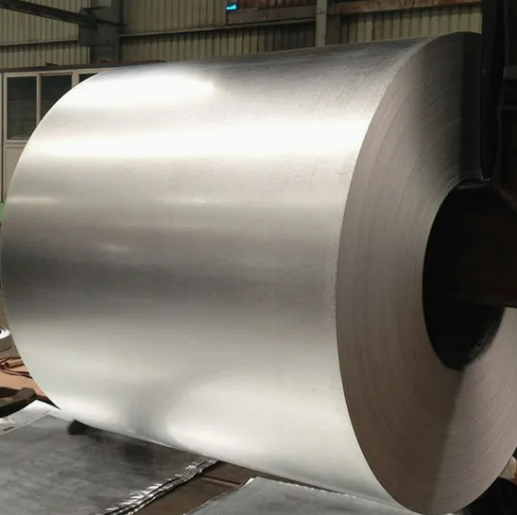

DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
DC01 DC02 DC03 Grade Cold Rolled Steel Coil 0.6mm to 1.1mm Thickness for Automobile Manufacturing
Specifications
Brand Name :
Gnee
Certification :
SGS
Place of Origin :
Henan
MOQ :
10 Ton
Supply Ability :
10000 Ton/Tons per Month
Packaging Details :
Standard Sea Worthy Package
Description
DC01 DC02 DC03 CRC Cold Rolled Steel Sheet & Coil
High-quality cold rolled carbon steel sheets, plates, and coils available in various thicknesses from 0.6mm to 1.1mm and beyond, suitable for multiple industrial applications.
Product Specifications
Product Name Cold Rolled Steel Sheet/Plate/Coil
Grade DC01, DC03, DC04, DC05, SPCC, ST12, ST13, ST14, ST15, ST16, etc.
Surface Bright, Matt
Processing Service Bending, Welding, Decoiling, Punching, Cutting
Thickness 0.30mm - 3.0mm
Width 800mm - 1500mm or as customer required
Standard ASTM, GB, EN, BS, JIS, etc.
Usage Automobile manufacturing, home appliances (washing machines, refrigerator shells), office furniture, computer chassis and cabinets, general stamping parts
Order & Delivery Information
Payment Terms
  • 100% irrevocable L/C at sight
  • 30% T/T prepaid and the balance against the copy of B/L
  • 30% T/T prepaid and the balance against L/C
Packing Options
  • Big OD: in bulk
  • Small OD: packed by steel strips
  • Woven cloth with 7 slats
  • According to the requirements of customers
Delivery Time: Delivered within 3-7 days after the receipt of deposit
International Grade Standards
Standard Grade Equivalents
Q/BQB 408 BLC, BLD, BUSD, BUFD, BSUFD
JIS G3141 SPCC, SPCD, SPCE, SPCF
JFS A2001 JSC270C, JSC270D, JSC270E, JSC270F, JSC260G
EN 10130 DC01, DC03, DC04, DC05, DC06
DIN 1623 St12, RRSt13, St14
ASTM A1008 CS, DS, DDS, EDDS
GB/T 5213 SC1, SC2, SC3
ISO 3574 CR1, CR2, CR3, CR4, CR5
Technical Specifications
JIS G3141 Standards
Grade C (%) Mn (%) P (%) S (%) Yielding Strength (MPa) Tensile Strength (MPa) Elongation (%)
SPCC ≤0.15 ≤0.60 ≤0.10 ≤0.05 - - -
SPCD ≤0.12 ≤0.50 ≤0.04 ≤0.04 ≤240 ≥270 ≥41
SPCE ≤0.10 ≤0.45 ≤0.03 ≤0.03 ≤220 ≥270 ≥43
SPCF ≤0.08 ≤0.45 ≤0.03 ≤0.03 ≤210 ≥270 ≥45
JIS G3141 Surface Quality: B-finish; D-mirror finish
Heat Treatment/State: A - annealed; S - tempered, 8 - 1/8 hard, 4 - 1/4 hard, 2 - 1/2 hard, 1 - hard
EN 10130 Standards
Grade C (%) Mn (%) P (%) S (%) Yielding Strength (MPa) Tensile Strength (MPa) Elongation (%)
DC01 ≤0.12 ≤0.60 ≤0.045 ≤0.045 140-280 270-410 ≥28
DC03 ≤0.10 ≤0.45 ≤0.035 ≤0.035 140-240 270-370 ≥34
DC04 ≤0.08 ≤0.40 ≤0.030 ≤0.030 140-210 270-350 ≥38
DC05 ≤0.06 ≤0.35 ≤0.025 ≤0.025 140-180 270-330 ≥40
DC06 ≤0.02 ≤0.25 ≤0.020 ≤0.020 120-170 270-330 ≥41
EN 10130 Surface Types: A, B
Surface Specifications: b=special smooth, g=smooth, m=non-glossy, r=rude
Naming Example: EN 10130+A1-DC03-B-g (where B is surface type and g indicates smooth surface specification)
